1. INSTALLATION AND USE

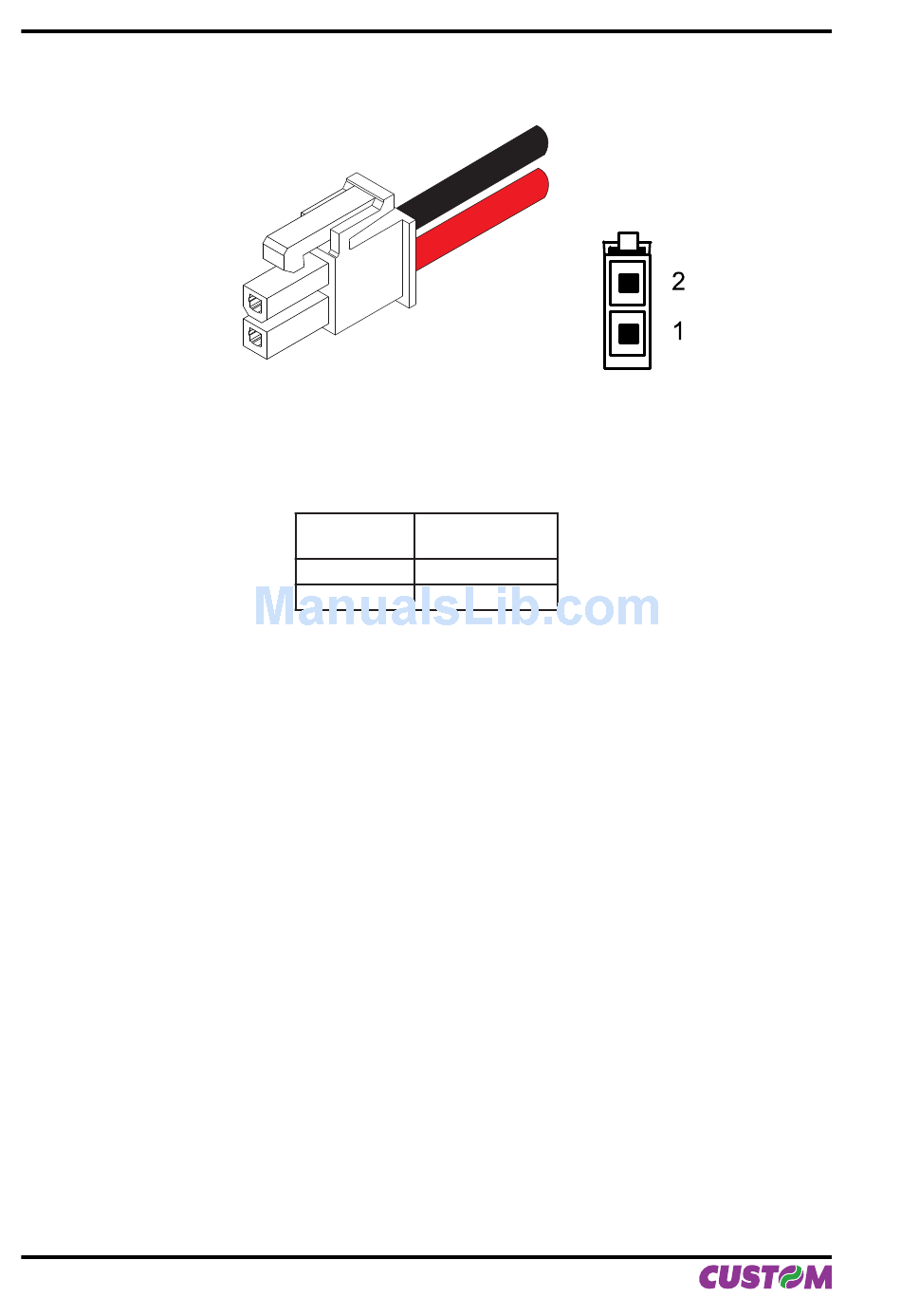

This picture shows the power supply cable included in the printer packaging :
(Fig.1.2)
The connector pin confi guration of this cable is as follows:
Note : The red cable is for +24 Vdc.
The black cable is for signal ground.

1.2 SELF-TEST

Printer operating status is indicated in the confi guration print-out in which, next to the name of the compo-
nents displayed (see fi gure 1.3), the following information is given:
• Under INTERFACE is given the interface present (RS232).
• Under PROGRAM MEMORY TEST, DYNAMIC RAM TEST, EEPROM TEST and CUTTER TEST, the
message OK appears if functioning and NOT OK if faulty.
• Under HEAD VOLTAGE is given the voltage of the head.
• Under HEAD TEMPERATURE is given the temperature of the head.
• Under PAPER PRINTED is given the number of centimetres of paper printed.
• Under CUT COUNTER is given the number of cuts made.
• Under RETRACT COUNTER is given the number of retract made.
• Under POWER ON COUNTER is given the number of power-ups made.
1-2 VKP80II
User Manual
MOLEX FEMALE
CONNETTOR 2 PIN
Female
connector
Pin 1
Pin 2
OPPOSITE VIEW SIDE
OF CABLE INSERTION
Cable color
RED
(Tab.1.2)
BLACK
