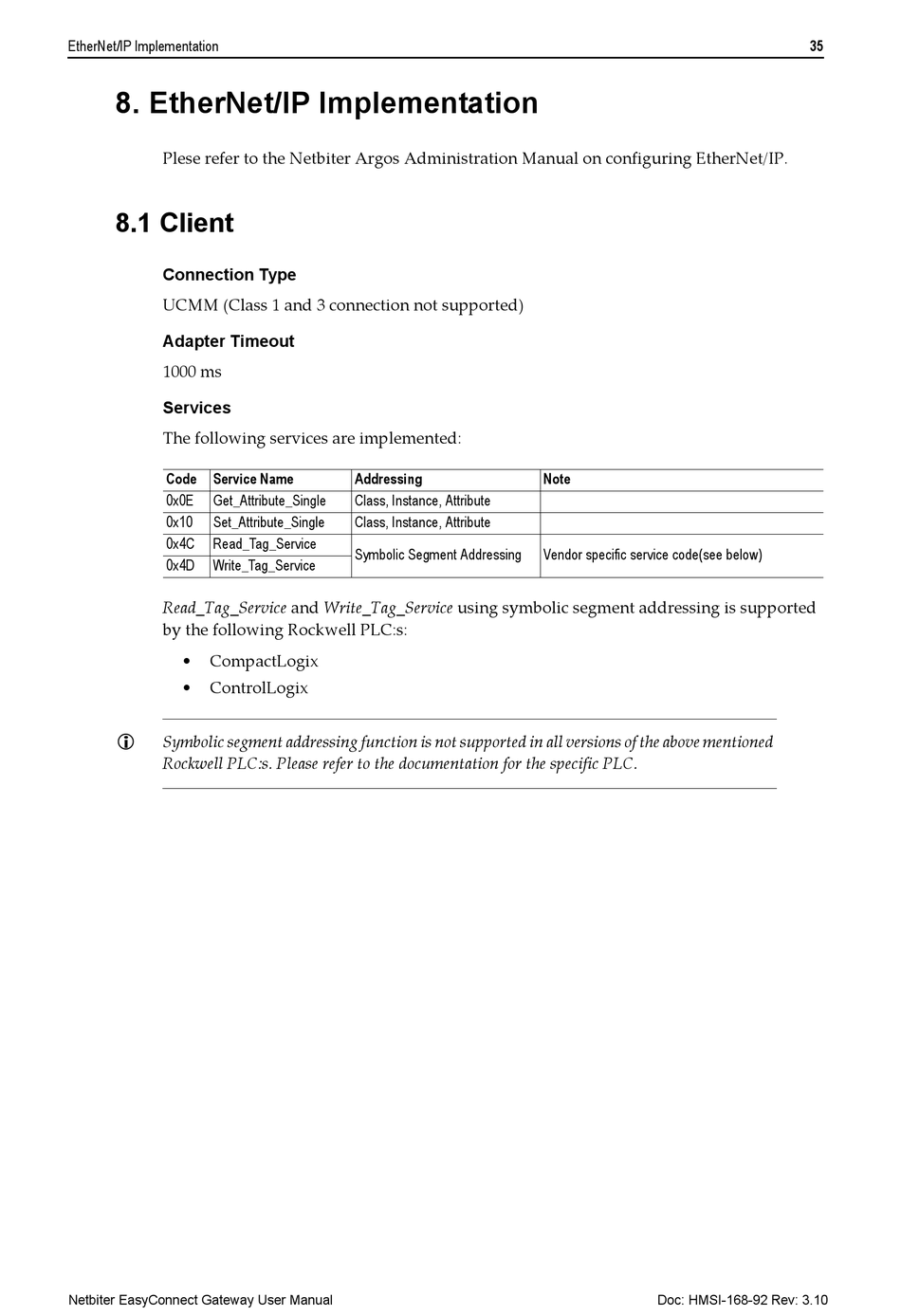

8. EtherNet/IP Implementation
Plese refer to the Netbiter Argos Administration Manual on configuring EtherNet/IP.

8.1 Client

Connection Type
UCMM (Class 1 and 3 connection not supported)
Adapter Timeout
1000 ms
Services
The following services are implemented:
Code Service Name
0x0E Get_Attribute_Single
0x10 Set_Attribute_Single
0x4C Read_Tag_Service
0x4D Write_Tag_Service
Read_Tag_Service and Write_Tag_Service using symbolic segment addressing is supported
by the following Rockwell PLC:s:
• CompactLogix
• ControlLogix

Symbolic segment addressing function is not supported in all versions of the above mentioned
Rockwell PLC:s. Please refer to the documentation for the specific PLC.
