Installation

1. Installation

1.1 Netbiter EC150 / EC250

DIN Rail Mount
Netbiter EC150 and Netbiter EC250 are supplied
ready for mounting on a DIN rail.

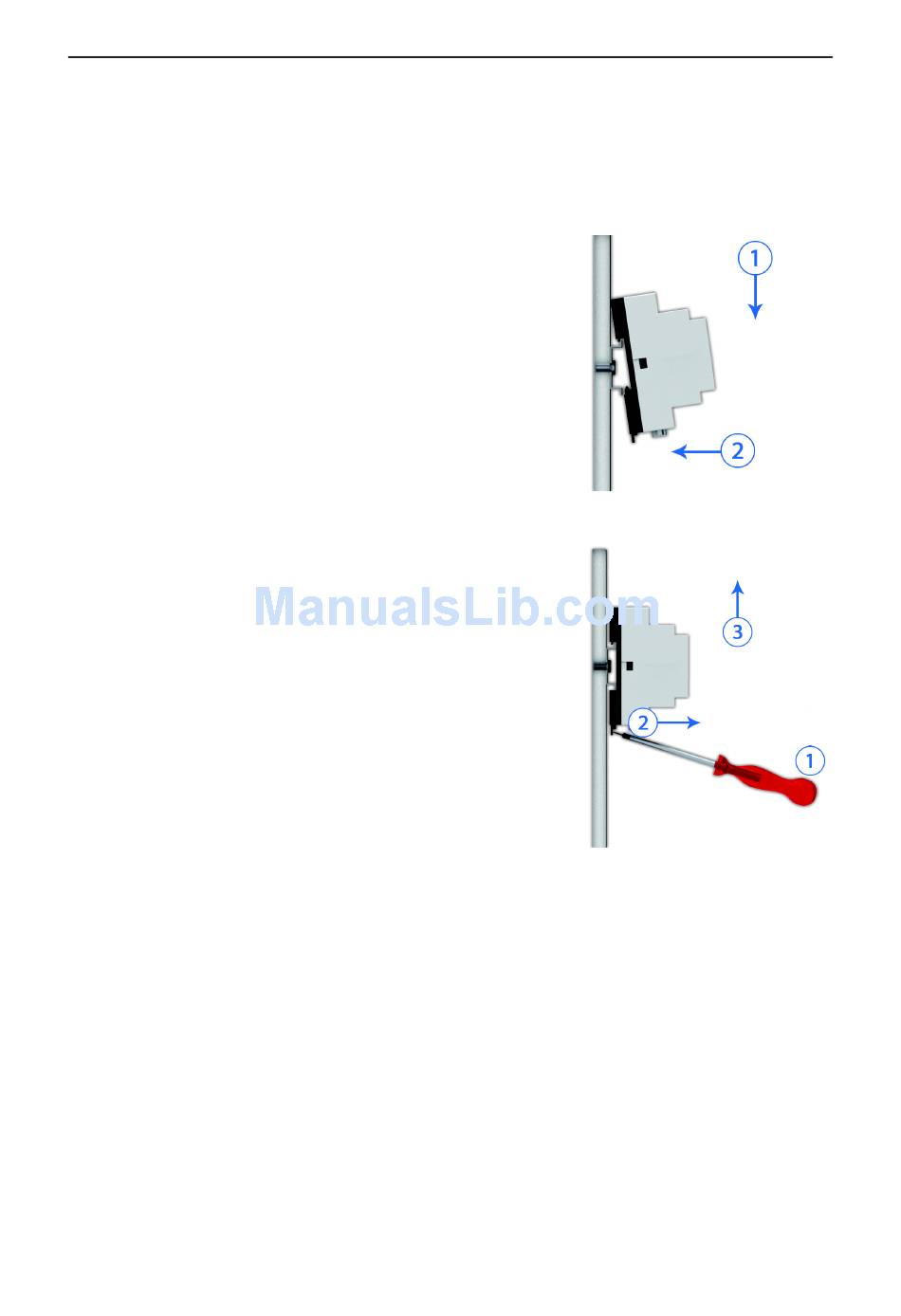

Mounting
1. Lower the unit onto the upper lip of the rail.
2. Press the unit towards the rail. It will snap
into place on the lower lip.
Removing
1. Insert a flat‐head screwdriver into the slot‐
ted tab on the bottom of the unit and pull the
tab gently downwards.
2. Pull the lower side of the unit free of the rail.
3. Lift the unit from the rail.
