Wiring Examples

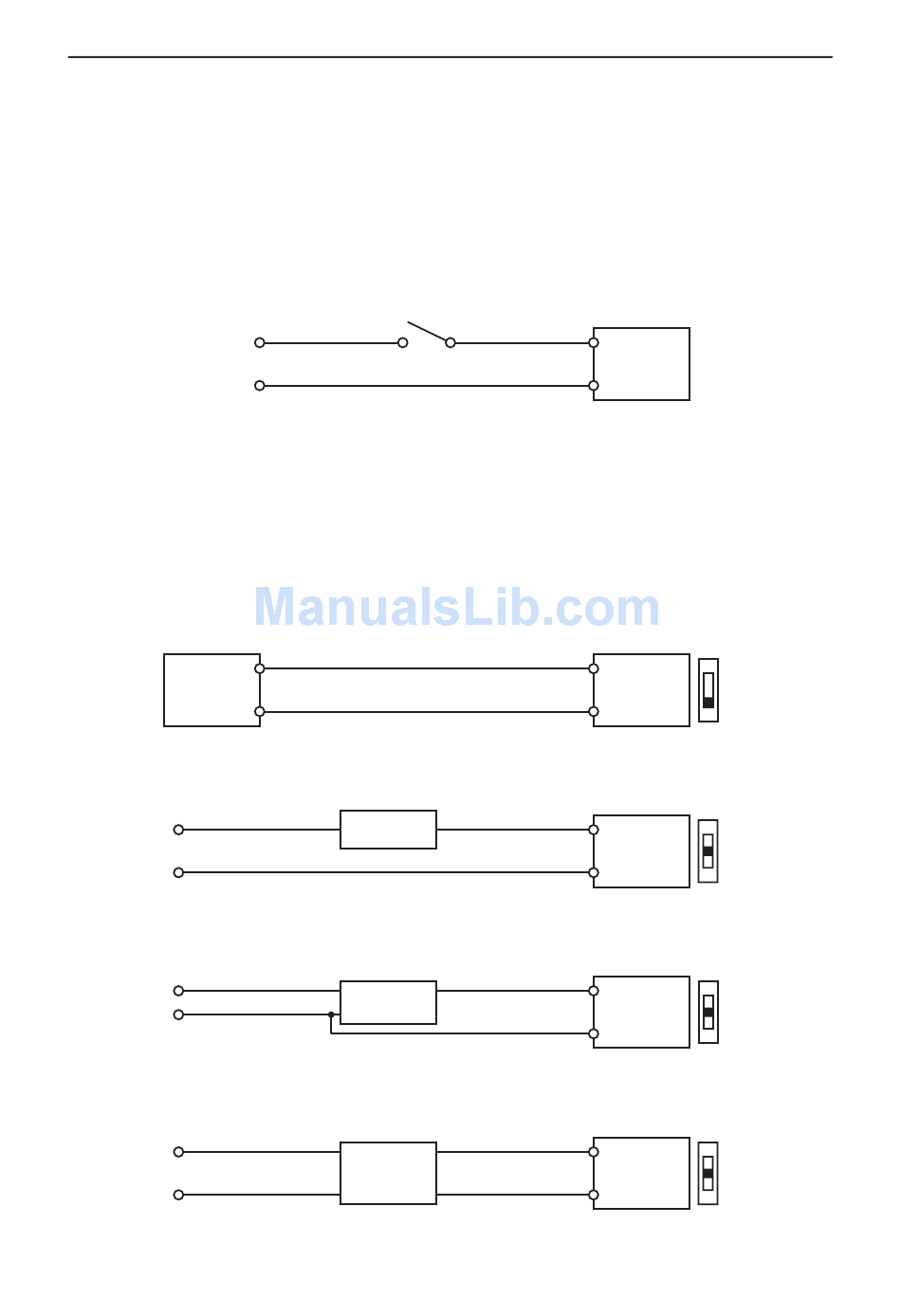

4. Wiring Examples

4.1 Netbiter EC150/EC250

4.1.1 Digital Input Wiring Example
Digital Input
9–24 VDC
0 VDC

4.2 Netbiter EC220

4.2.1 Input Wiring Examples
See also "Analog Input Configuration Switches" on page 8.
Analog Input – Voltage Sensor
0–10 VDC
Analog Input – 2-wire Current Sensor
+
-
Analog Input – 3-wire Current Sensor
+
-
Analog Input – 4-wire Current Sensor
+
-
Netbiter EasyConnect Gateway User Manual
+
-
0–20 mA
0–20 mA
0–20 mA
DI:DI 1/2
DI:COM
AI:AI 1/2
AI:COM
AI:AI 1/2
AI:COM
AI:AI 1/2
OUT
AI:COM
AI:AI 1/2
OUT
AI:COM
GND
EC150
EC220
PT100
0-20 mA
0-10 V
EC220
PT100
0-20 mA
0-10 V
EC220
PT100
0-20 mA
0-10 V
EC220
PT100
0-20 mA
0-10 V
Doc: HMSI-168-92 Rev: 3.10
