Local Configuration

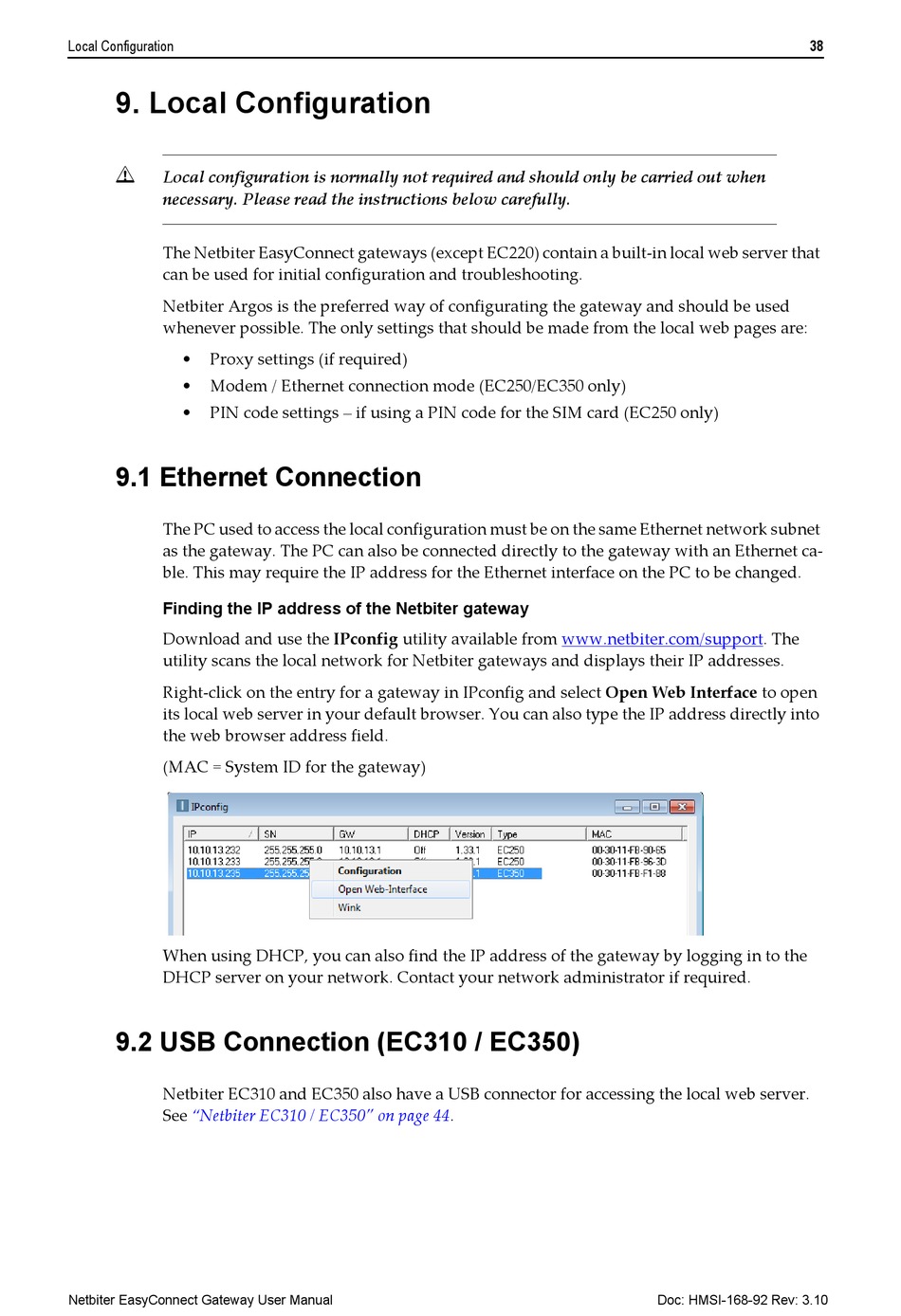

9. Local Configuration
!
Local configuration is normally not required and should only be carried out when
necessary. Please read the instructions below carefully.
The Netbiter EasyConnect gateways (except EC220) contain a built‐in local web server that
can be used for initial configuration and troubleshooting.
Netbiter Argos is the preferred way of configurating the gateway and should be used
whenever possible. The only settings that should be made from the local web pages are:
• Proxy settings (if required)
• Modem / Ethernet connection mode (EC250/EC350 only)
• PIN code settings – if using a PIN code for the SIM card (EC250 only)

9.1 Ethernet Connection

The PC used to access the local configuration must be on the same Ethernet network subnet
as the gateway. The PC can also be connected directly to the gateway with an Ethernet ca‐
ble. This may require the IP address for the Ethernet interface on the PC to be changed.
Finding the IP address of the Netbiter gateway
Download and use the IPconfig utility available from www.netbiter.com/support. The
utility scans the local network for Netbiter gateways and displays their IP addresses.
Right‐click on the entry for a gateway in IPconfig and select Open Web Interface to open
its local web server in your default browser. You can also type the IP address directly into
the web browser address field.
(MAC = System ID for the gateway)
When using DHCP, you can also find the IP address of the gateway by logging in to the
DHCP server on your network. Contact your network administrator if required.

9.2 USB Connection (EC310 / EC350)

Netbiter EC310 and EC350 also have a USB connector for accessing the local web server.
See "Netbiter EC310 / EC350" on page 44.
Netbiter EasyConnect Gateway User Manual
38
Doc: HMSI-168-92 Rev: 3.10
