Connections

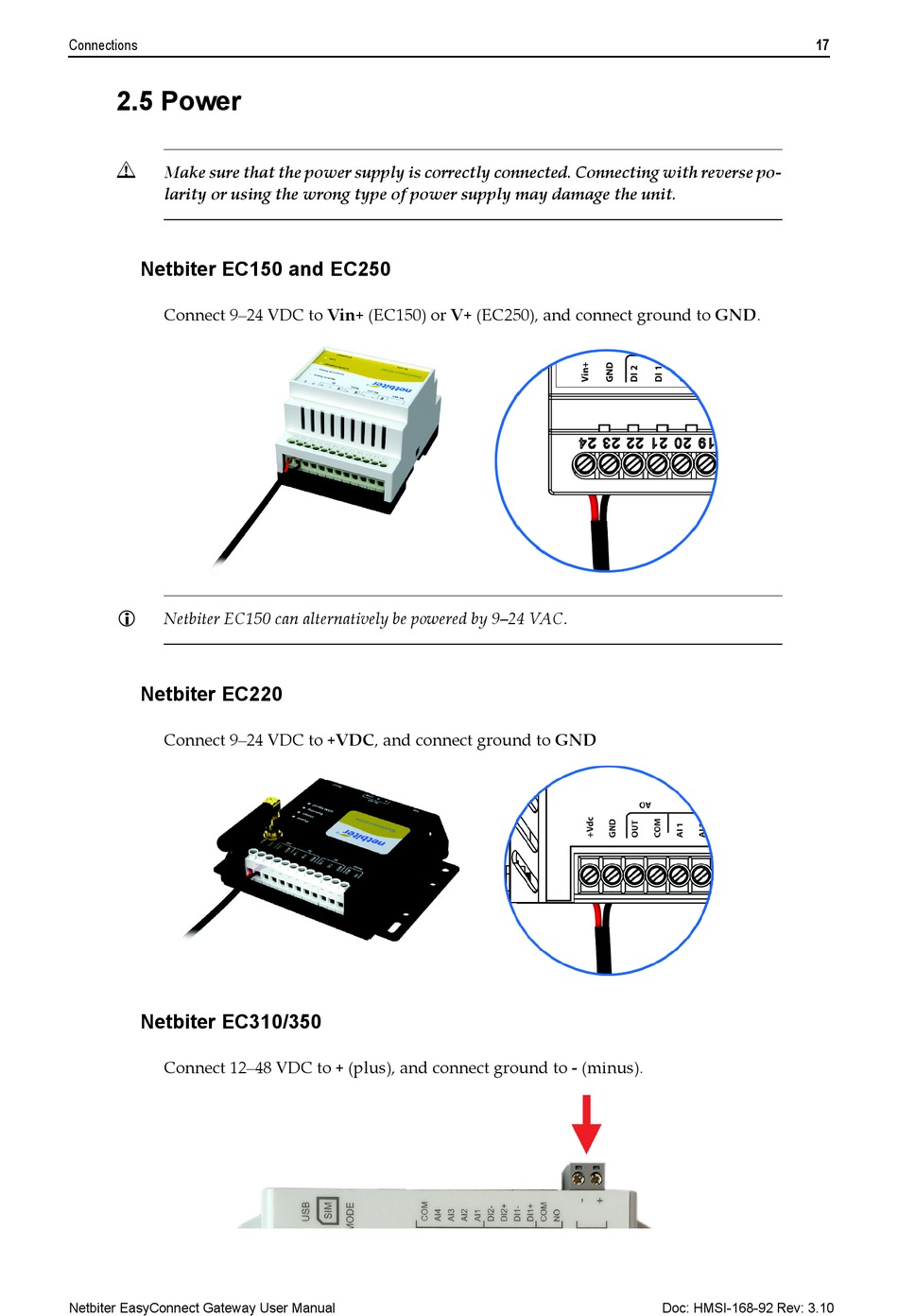

2.5 Power
!
Make sure that the power supply is correctly connected. Connecting with reverse po‐
larity or using the wrong type of power supply may damage the unit.
Netbiter EC150 and EC250
Connect 9–24 VDC to Vin+ (EC150) or V+ (EC250), and connect ground to GND.
Netbiter EC150 can alternatively be powered by 9–24 VAC.
Netbiter EC220
Connect 9–24 VDC to +VDC, and connect ground to GND
Netbiter EC310/350
Connect 12–48 VDC to + (plus), and connect ground to ‐ (minus).
Netbiter EasyConnect Gateway User Manual
17
Doc: HMSI-168-92 Rev: 3.10
