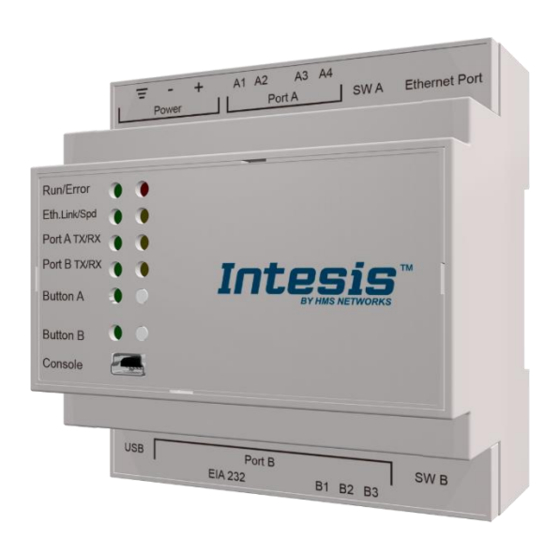

Fujitsu vrf air conditioning, gateway for the integration of fujitsu vrf systems into knx home automation systems

Advertisement

Quick Links

Fujitsu VRF Air Conditioning
Gateway for the integration of Fujitsu VRF systems into KNX home automation
systems
USER MANUAL
Issue date: 01/2019 r1.0 ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Intesis INKNXFGL016O000 and is the answer not in the manual?

Questions and answers

Summary of Contents for HMS Intesis INKNXFGL016O000

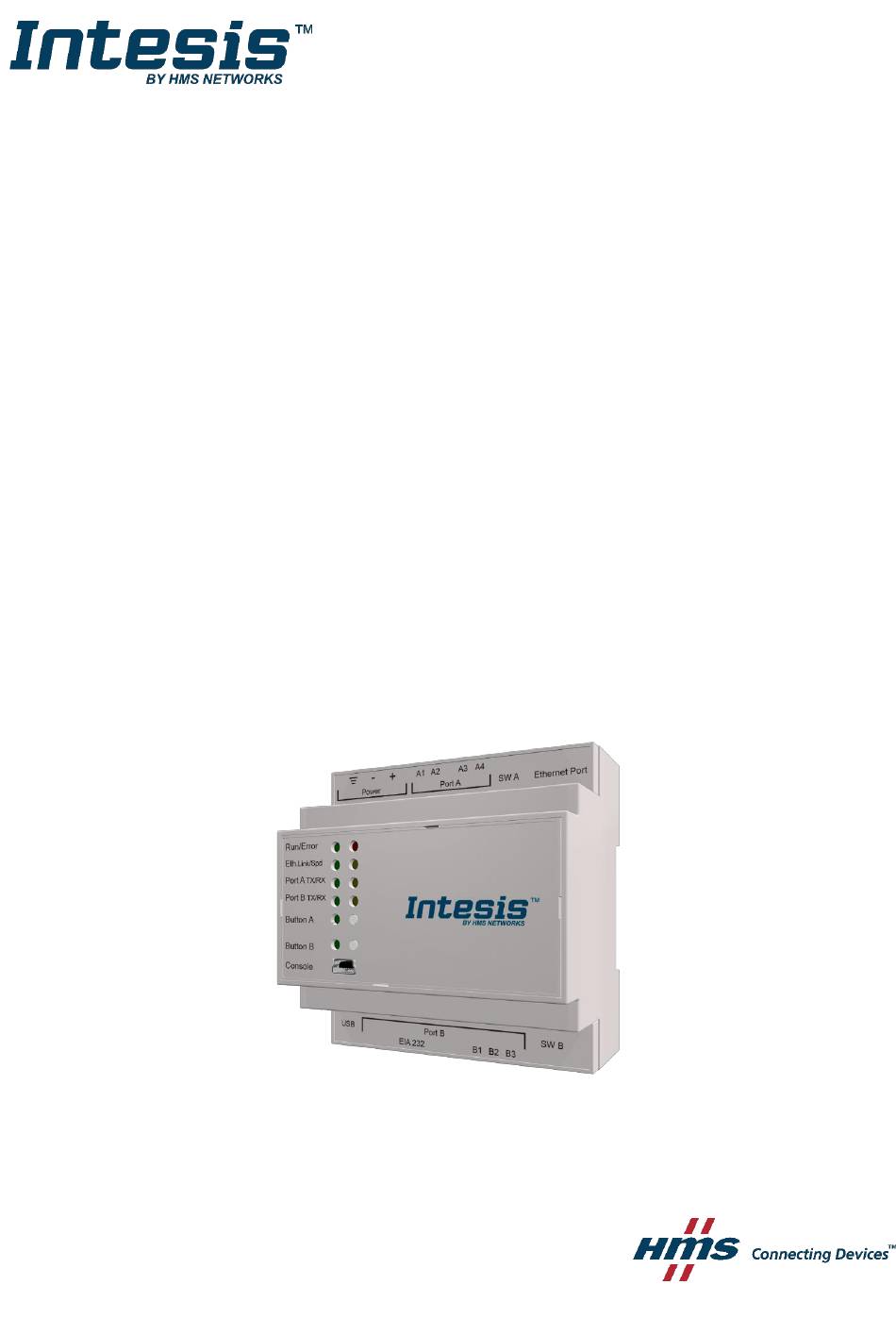

  • Page 1 Fujitsu VRF Air Conditioning Gateway for the integration of Fujitsu VRF systems into KNX home automation systems USER MANUAL Issue date: 01/2019 r1.0 ENGLISH...
  • Page 2 HMS Industrial Networks reserves the right to modify its products in line with its policy of continuous product development. The information in this document shall therefore not be construed as a commitment on the part of HMS Industrial Networks and is subject to change without notice. HMS Industrial Networks makes no commitment to update or keep current the information in this document.
  • Page 3 Gateway for the integration of Fujitsu VRF systems into KNX home automation systems. ORDER CODE LEGACY ORDER CODE INKNXFGL016O000 IBKNXFGL016O000 © HMS Industrial Networks S.L.U - All rights reserved https://www.intesis.com This information is subject to change without notice 3 / 29...
  • Page 4: Table Of Contents

    7 AC Unit Types compatibility ..........................22 8 Error codes for Indoor and Outdoor Units ......................23 9 Appendix A – Communication Objects Table ..................... 25 © HMS Industrial Networks S.L.U - All rights reserved https://www.intesis.com This information is subject to change without notice...
  • Page 5: Description

    This document assumes that the user is familiar with KNX and Fujitsu technologies and their technical terms Integration of Fujitsu VRF systems into KNX control systems © HMS Industrial Networks S.L.U - All rights reserved https://www.intesis.com This information is subject to change without notice...
  • Page 6: Functionality

    Number of indoor units that can be controlled through Intesis Its order code is: ▪ INKNXFGL016O000: Model supporting up to 16 indoor units © HMS Industrial Networks S.L.U - All rights reserved https://www.intesis.com This information is subject to change without notice 6 / 29...
  • Page 7: Knx System

    These properties are common for all Intesis KNX series gateways. Although each integration may have specific properties according to the type of signals of the external system. See list of communication objects in section 9. © HMS Industrial Networks S.L.U - All rights reserved https://www.intesis.com This information is subject to change without notice...
  • Page 8: Connections

    Connect a USB storage device (not a HDD) if required. Check the user manual for more information. Ensure proper space for all connectors when mounted (see section 6) © HMS Industrial Networks S.L.U - All rights reserved https://www.intesis.com This information is subject to change without notice...
  • Page 9: Power Device

    Ethernet: Using the Ethernet port of Intesis. • USB: Using the console port of Intesis, connect a USB cable from the console port to the PC. © HMS Industrial Networks S.L.U - All rights reserved https://www.intesis.com This information is subject to change without notice...
  • Page 10: Set-Up Process And Troubleshooting

    Intesis. It is also required to have a Fujitsu VRF installation, with accessible X1 X2 port for connection of Intesis. Connectors, connection cables, PC to use the configuration tool and other auxiliary material, if needed, are not supplied by HMS Industrial Networks S.L.U for this standard integration. Items supplied by HMS Networks for this integration are: •...
  • Page 11: Configuration Tab

    Figure 4.2 Intesis MAPS configuration tab 4.2.4 KNX configuration Set parameters of KNX interface of Intesis. Figure 4.3 Intesis MAPS KNX configuration tab © HMS Industrial Networks S.L.U - All rights reserved https://www.intesis.com This information is subject to change without notice 11 / 29...
  • Page 12 4. Fan Speed. Settings related to KNX interface for control and feedback of AC unit’s fan speed. 4.1. Auto Fan Speed. Configures availability of Auto Fan Speed control/monitoring objects. Necessary if your indoor unit has auto fan speed. © HMS Industrial Networks S.L.U - All rights reserved https://www.intesis.com This information is subject to change without notice...
  • Page 13 4.4. Use of 1-bit Fan Speed. 1-bit Control Objects. Enables a bit-type object for control of Vanes Positions. 4.5. Use of 1-bit Fan Speed. 1-bit Status Objects. Enables a bit-type object for monitoring of each Vanes Position. © HMS Industrial Networks S.L.U - All rights reserved https://www.intesis.com This information is subject to change without notice...
  • Page 14: Fujitsu Configuration

    VRF bus (units not powered, bus not connected, …). A progress bar will appear during the scan, which will take up to a few minutes. © HMS Industrial Networks S.L.U - All rights reserved https://www.intesis.com...
  • Page 15 After units to be integrated are selected, click button Apply, and changes will appear in previous Units Configuration window. Figure 4.7 Intesis MAPS Fujitsu configuration tab after importing scan results © HMS Industrial Networks S.L.U - All rights reserved https://www.intesis.com This information is subject to change without notice...
  • Page 16: Signals

    All available KNX objects, its corresponding description and other main parameters are listed in the signals tab. Figure 4.8 Intesis MAPS Signals tab © HMS Industrial Networks S.L.U - All rights reserved https://www.intesis.com This information is subject to change without notice...
  • Page 17: Sending The Configuration To Intesis

    Console viewer for general information about communications and the gateway status and finally a Signals Viewer to simulate the BMS behavior or to check the current values in the system. © HMS Industrial Networks S.L.U - All rights reserved https://www.intesis.com This information is subject to change without notice...
  • Page 18 User Manual r1.0 EN Figure 4.10 Diagnostic More information about the Diagnostic section can be found in the Configuration Tool manual. © HMS Industrial Networks S.L.U - All rights reserved https://www.intesis.com This information is subject to change without notice 18 / 29...
  • Page 19: Set-Up Procedure

    Intesis and the KNX side and/or Fujitsu units, check that those are operative: check communication cable used to connect all devices and any other communication parameter. Figure 4.11 Enable COMMS © HMS Industrial Networks S.L.U - All rights reserved https://www.intesis.com This information is subject to change without notice...
  • Page 20: Electrical & Mechanical Features

    1500VDC isolation from other ports 1 x DIP-Switch for PORT B configuration: Switch B Reserved for future use (leave OFF, default) (SWB) © HMS Industrial Networks S.L.U - All rights reserved https://www.intesis.com This information is subject to change without notice 20 / 29...
  • Page 21: Dimensions

    Recommended available space for its installation into a cabinet (wall or DIN rail mounting), with space enough for external connections 100 mm (h) 100 mm (w) 130 mm (d) © HMS Industrial Networks S.L.U - All rights reserved https://www.intesis.com This information is subject to change without notice 21 / 29...
  • Page 22: Ac Unit Types Compatibility

    User Manual r1.0 EN 7 AC Unit Types compatibility The gateway is compatible with Fujitsu VRF units after the VRF-II series (included). © HMS Industrial Networks S.L.U - All rights reserved https://www.intesis.com This information is subject to change without notice...
  • Page 23: Error Codes For Indoor And Outdoor Units

    Discharge temperature 1 abnormal Discharge temperature 2 abnormal Compressor temperature abnormal Pressure abnormal 1 Pressure abnormal 2 Special operation error © HMS Industrial Networks S.L.U - All rights reserved https://www.intesis.com This information is subject to change without notice 23 / 29...
  • Page 24 Outdoor heat exchanger temperature abnormal Connection unit number error in wired remote controller system Indoor unit communication circuit (wired remote controller) error © HMS Industrial Networks S.L.U - All rights reserved https://www.intesis.com This information is subject to change without notice...
  • Page 25: Appendix A - Communication Objects Table

    1 byte DPT_HVACContrMode 20.105 0-Auto, 1-Heat, 3-Cool, 9-Fan, 14-Dry Control _Operation mode 1 byte Non-standarized 0-Auto, 1-Heat, 2-Dry, 3-Fan, 4-Cool © HMS Industrial Networks S.L.U - All rights reserved https://www.intesis.com This information is subject to change without notice 25 / 29...
  • Page 26 1.001 1-Speed med-low active, 0-Speed med-low not active Control_Fan speed med 1 bit DPT_Switch 1.001 1-Set fan speed med © HMS Industrial Networks S.L.U - All rights reserved https://www.intesis.com This information is subject to change without notice 26 / 29...
  • Page 27 1 byte DPT_Scaling 5.001 Thersholds (20%; 40%; 60%; 80%; 100%) Control_Vanes LR pos-1 1 bit DPT_Switch 1.001 1-Set position-1 vanes © HMS Industrial Networks S.L.U - All rights reserved https://www.intesis.com This information is subject to change without notice 27 / 29...
  • Page 28 1 bit DPT_Bool 1.002 0-No disabled, 1-Disabled disablement Control_Mode Remote controll 1 bit DPT_Bool 1.002 0-No disabled, 1-Disabled disablement © HMS Industrial Networks S.L.U - All rights reserved https://www.intesis.com This information is subject to change without notice 28 / 29...
  • Page 29 1.001 0-Thermostat on, 1-Thermostat off OTHERS Status_Thermostat off 1 bit DPT_Switch 1.001 0-Thermostat on, 1-Thermostat off INDOOR UNIT SIGNALS © HMS Industrial Networks S.L.U - All rights reserved https://www.intesis.com This information is subject to change without notice 29 / 29...
