Power and Network Connector

The power and network connector is the 15-pin D-Subminiature female connector
on the end of the X-gateway. Connections to be made are illustrated in Figure 2-1.
J1939 CAN High (15)
J1939 CAN Low (14)
J1939 CAN Shield (13)
Power Connection
The X-gateway requires 24 volts DC power. Power is applied to pins 9 and 10 of
the 15-pin D-Sub connector. The module will start immediately when power is
applied (There is no On/Off switch on the module).
© 2012 HMS Industrial Networks AB

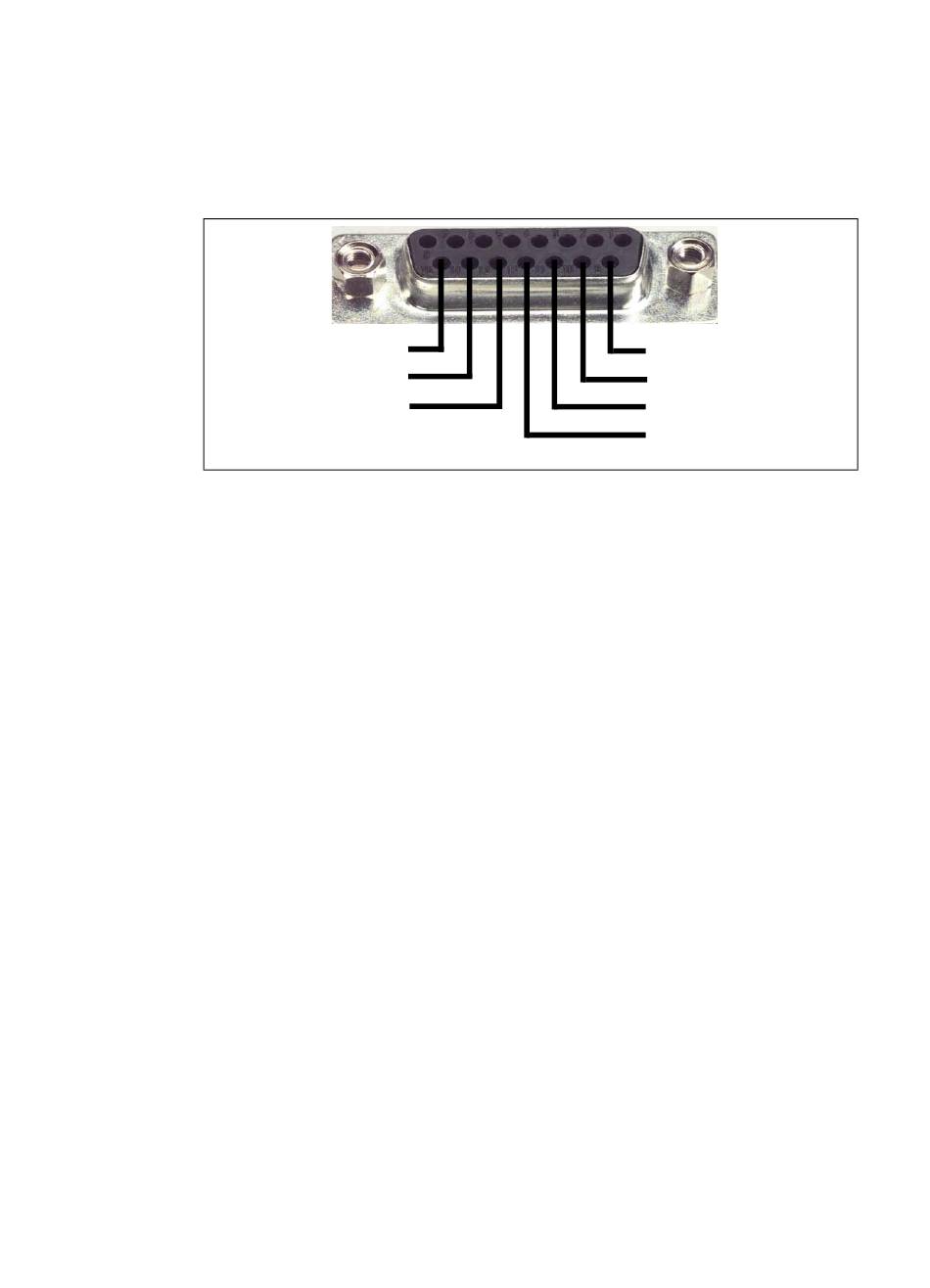

Figure 2-1 Power and Network Connector
Installation 2-2
(9) 24 VDC Common
(10) 24 VDC +
(11) Modbus RS-485 A
(12) Modbus RS-485 B
Doc.Id. HMSI-168-25
