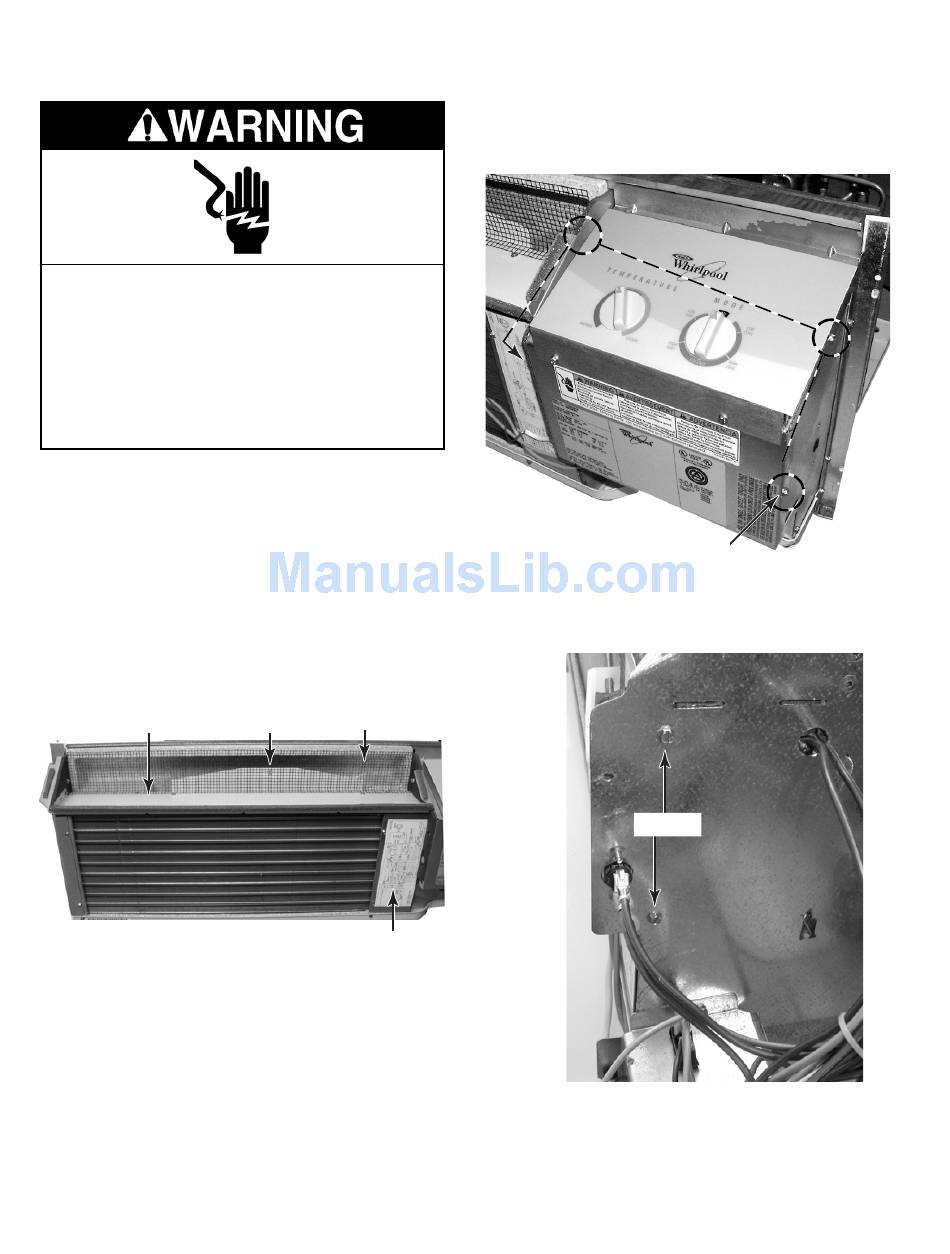

Removing The Evaporator - Whirlpool ATE0743SPP Technical Manual

Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug air conditioner or disconnect power.
2. Remove the unit from the wall sleeve (see
pages 2-10 and 2-11 for the procedure).
3. Braze on an access valve and discharge
the sealed system refrigerant into an ap-
proved recovery system.
4. Remove the screen, air deflector, and
deck from the front of the unit (see steps 3,
4, and 5 on page 4-9).
Deck

REMOVING THE EVAPORATOR

Air Deflector Screen
Evaporator
Mounting Plate
5. Remove the four hex-head screws from
the control chassis, and rotate the chassis
down.
4 Control Chassis Screws
6. Remove the two hex-head screws from
the evaporator mounting plate, located on
the right side of the chassis.
4-16
Screws
