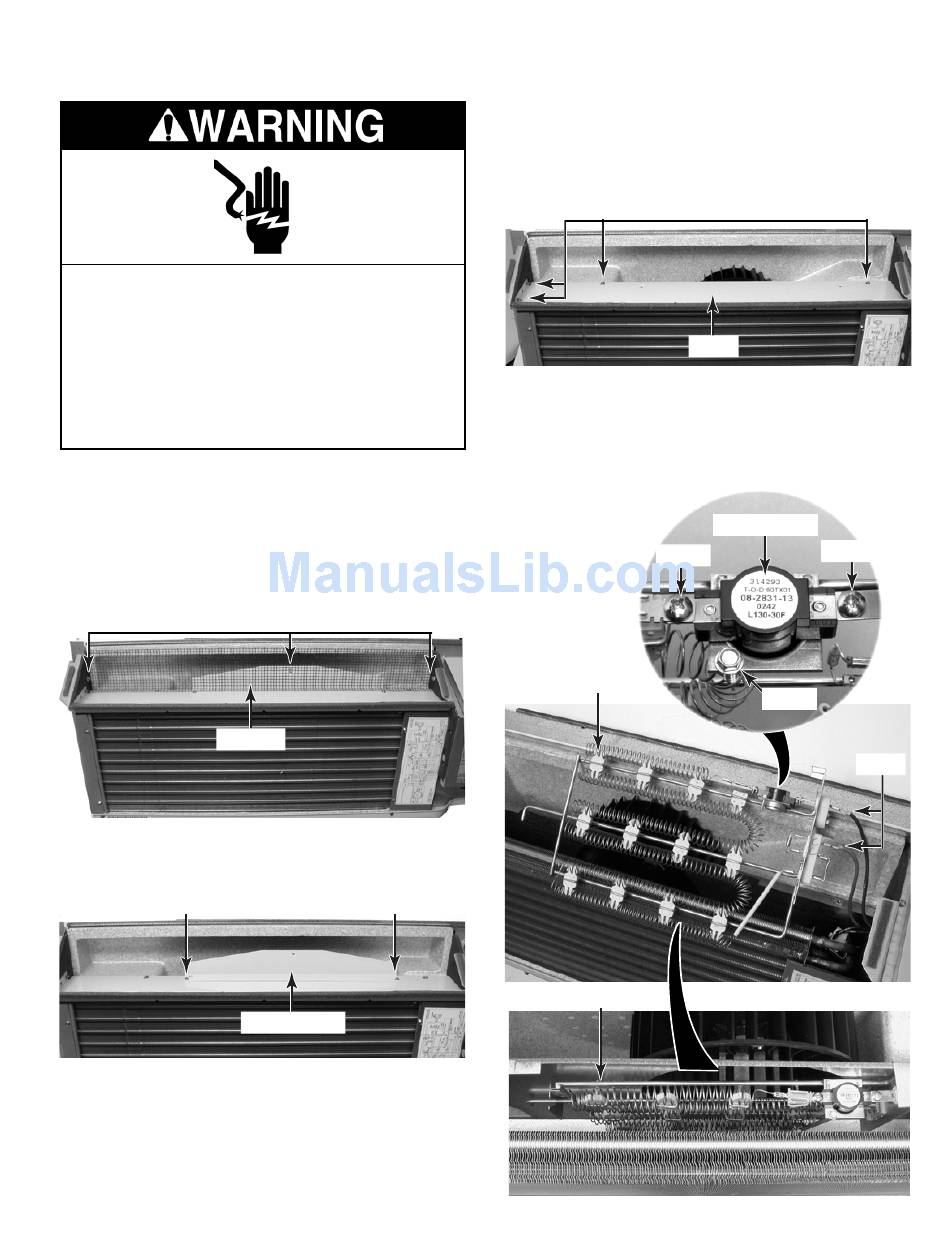

REMOVING THE HEATER & LIMIT SWITCH
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1.
Unplug air conditioner or disconnect power.
2.
Remove the front cover from the unit (see
page 2-11 for the procedure).
3.
Remove the three hex-head screws from
the screen and remove the screen.
3 Screws
Screen
4.
Remove the two hex-head screws from
the air deflector and remove the deflector.
Screw
Screw
Air Deflector
5.
Remove the four hex-head screws from
the deck, then lift the left end of the deck,
pull the right end tabs out of their slots, and
remove the deck.
6.
Lift the heater out of the unit and discon-
nect the two wires from the terminals.
7.
To remove the limit switch from the heater,
remove the three screws.
Heater
Heater
4-9
4 Screws
Deck
Limit Switch
Screw
Screw
Screw
Wires
