Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.

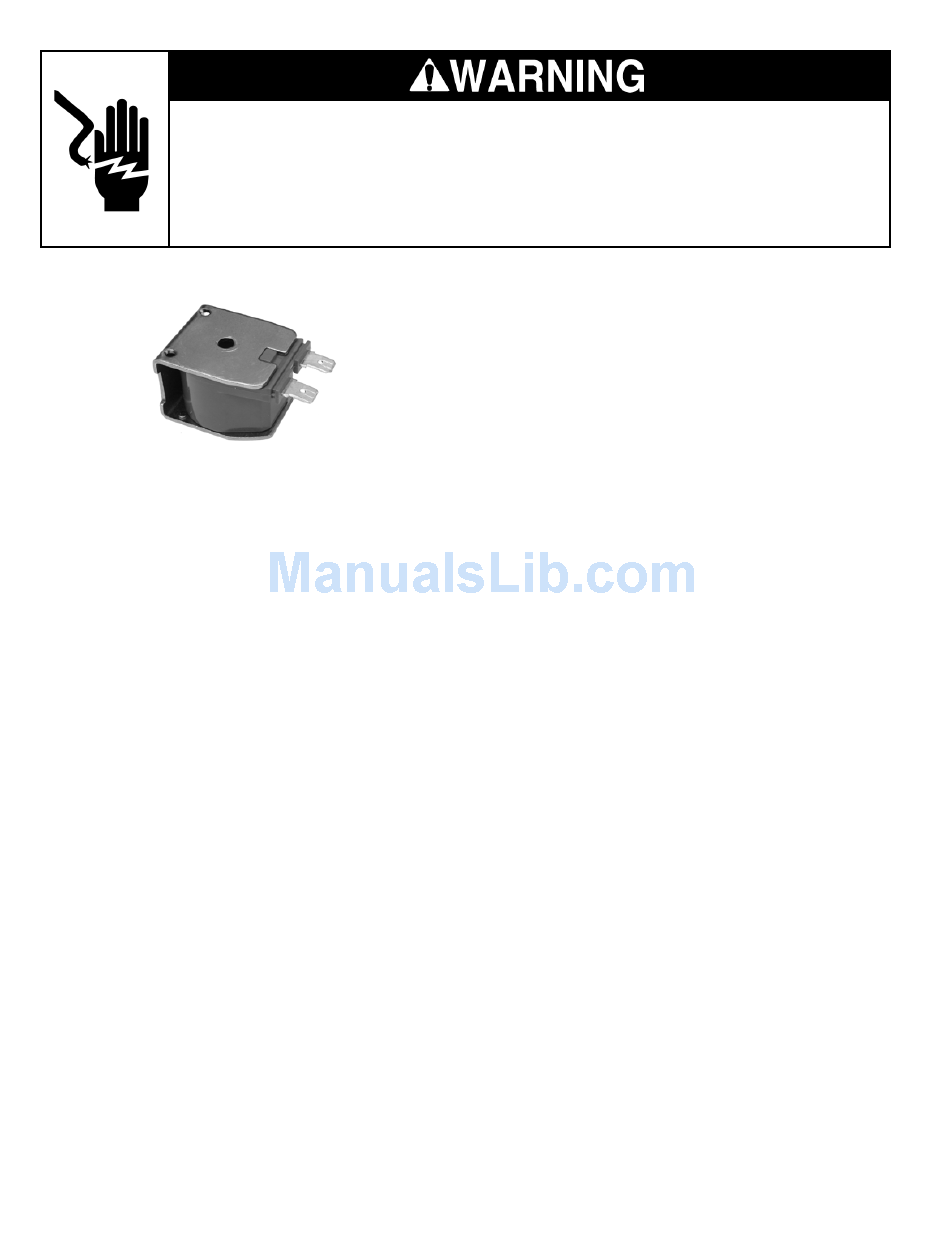

SOLENOID COIL

Refer to page 4-20 for the procedure for servic-
ing the solenoid coil.
Electrical Shock Hazard
1. Unplug air conditioner or disconnect power.
2. Disconnect one of the wires from the sole-
noid coil terminals.
3. Set the ohmmeter to the R x 100 scale.
4. Touch the ohmmeter test leads to the
solenoid coil terminals. The meter should
indicate between 1480 and 1520 Ω.
5-8
