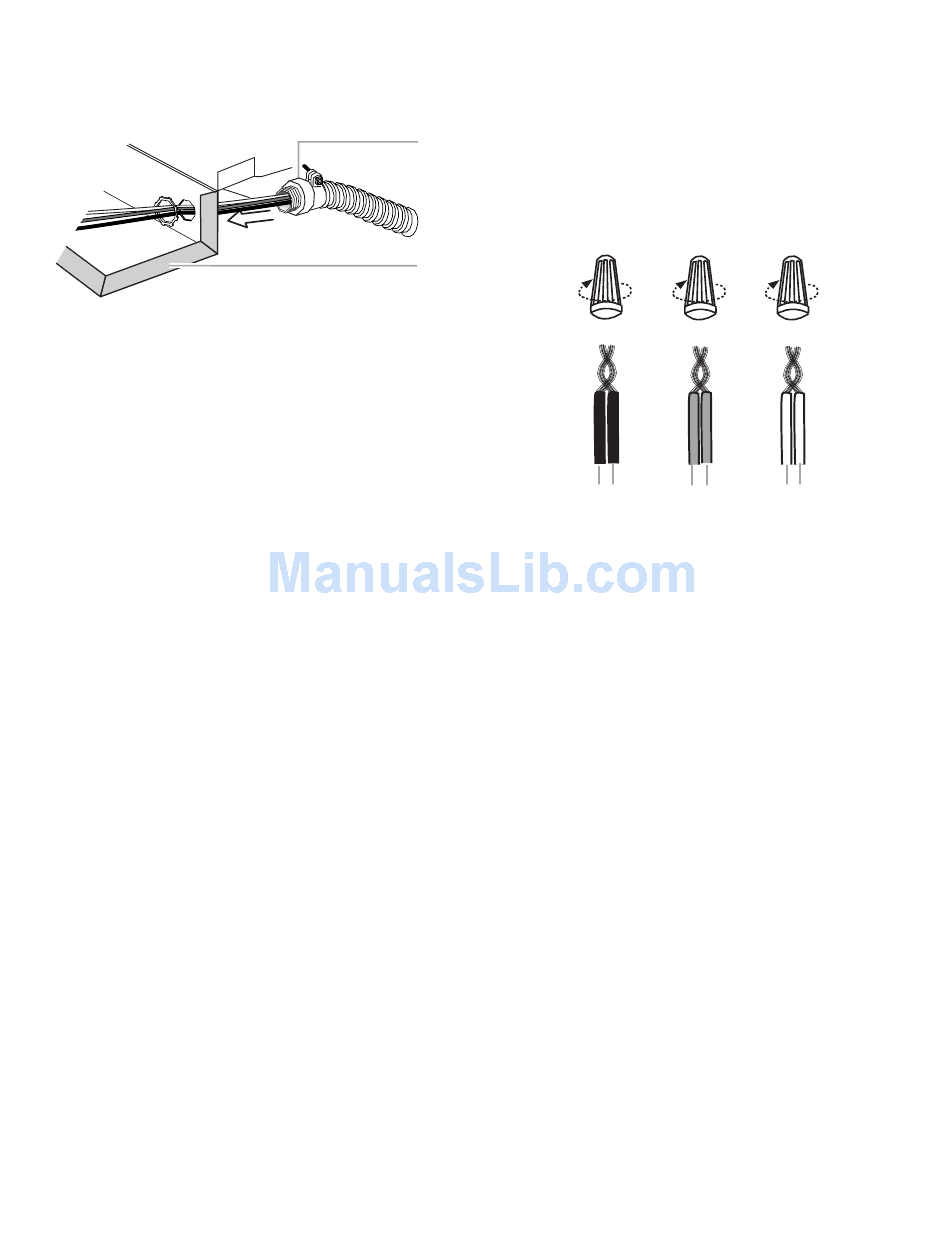

6. Install field-supplied conduit into the same
hole as the original bushing for the chassis
pigtail wires on the control box.
1. Field-supplied conduit
2. Control box
7. Connect the chassis pigtail wires to the
incoming power supply wires using the UL
listed wire nuts (provided). Connect the
black wire to the incoming L1 (black) wire.
1
Connect the white wire to the incoming
neutral (white) wire. Connect the green
wire to the incoming ground (green or
bare) wire.
2
1 2
1. Black wire
2. Incoming L1 wire (black wire)
3. Green wire
8. Reattach the PTAC/PTHP control panel
using the 4 screws removed earlier.
9. Reattach the PTAC/PTHP front cover us-
ing the thumbscrews removed earlier.
10. Reconnect power.
2-8
5 6
3 4
4. Ground wire (green or bare wire)
5. White wire
6. Neutral wire (white wire)
