Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug air conditioner or disconnect power.
2. Remove the air conditioner from the win-
dow.
3. Remove the side curtains and the front
grille (see page 3-2 for the procedures).

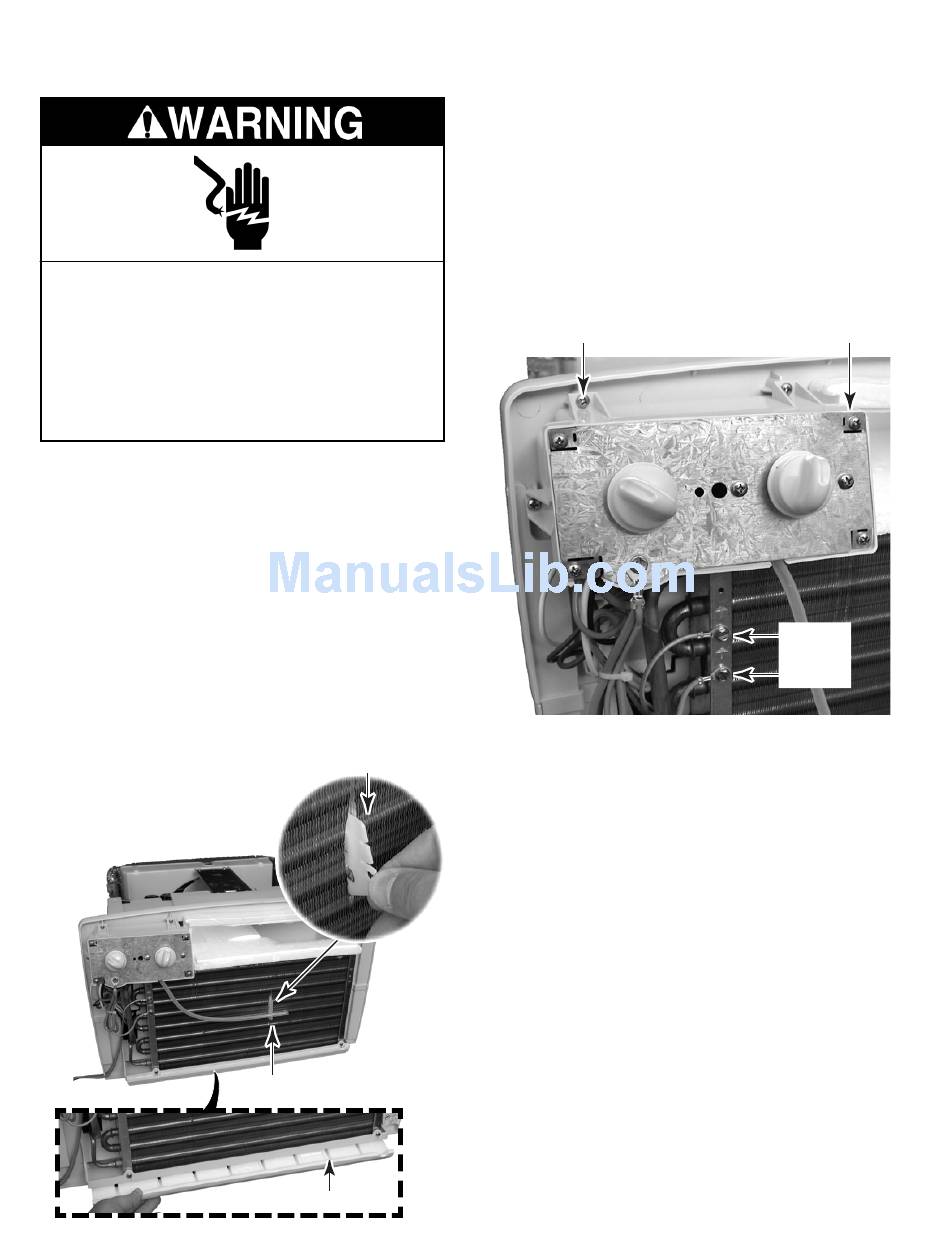

4. Pull the styrofoam shield out from under
the evaporator and remove it (see the
photo below).
5. Models ACM052MM, ACM062MM, &
ACD052MM:
a) Unclip the temperature sensor tube from
the sensor holder.
b) Pull the temperature
sensor holder out
of the evaporator.

REMOVING THE EVAPORATOR

Sensor Holder
Temperature Sensor Tube
Styrofoam Shield
c) Remove the screws from each of the
two green ground wires that are
mounted to the evaporator.
d) Remove the four screws from the con-
trol mounting plate and allow the as-
sembly to hang off to the side.
e) Remove the three screws from the con-
trol housing and remove the housing.
Control Housing
Screw (1 of 3)
6. Models ACQ058MM & ACQ062MM (see
the photos at the top of the next page):
a) Unclip the thermistor from its holder.
b) Pull the thermistor holder out of the
evaporator.
c) Remove the screws from each of the
two green ground wires that are
mounted to the evaporator.
d) Remove the electronic control box as-
sembly mounting screw and allow the
assembly to hang off to the side.
e) Remove the three screws from the con-
trol housing and remove the housing.
3-14
Control Mtg. Plate
Screw (1 of 4)
Ground
Wire
Screws
