Excessive Weight Hazard
Use two or more people to move and
install PTAC/PTHP.
Failure to do so can result in back or other
injury.
NOTES:
• Check to be sure wall sleeve, wall sleeve
extension (if used), wall sleeve adapter (if
used), rear grille, and drain kit are properly
installed before chassis installation.
• Locate PTAC/PTHP near the location it will
be installed.
IMPORTANT: Copper refrigerant tubes are not
handles. Product damage will occur if tubes
are used to lift or move the chassis.

CHASSIS INSTALLATION

2-5
1.
Remove banding and carton.
2.
Remove the 2 chassis shipping brackets
from the ends of the shipping pallet.
1
2
3

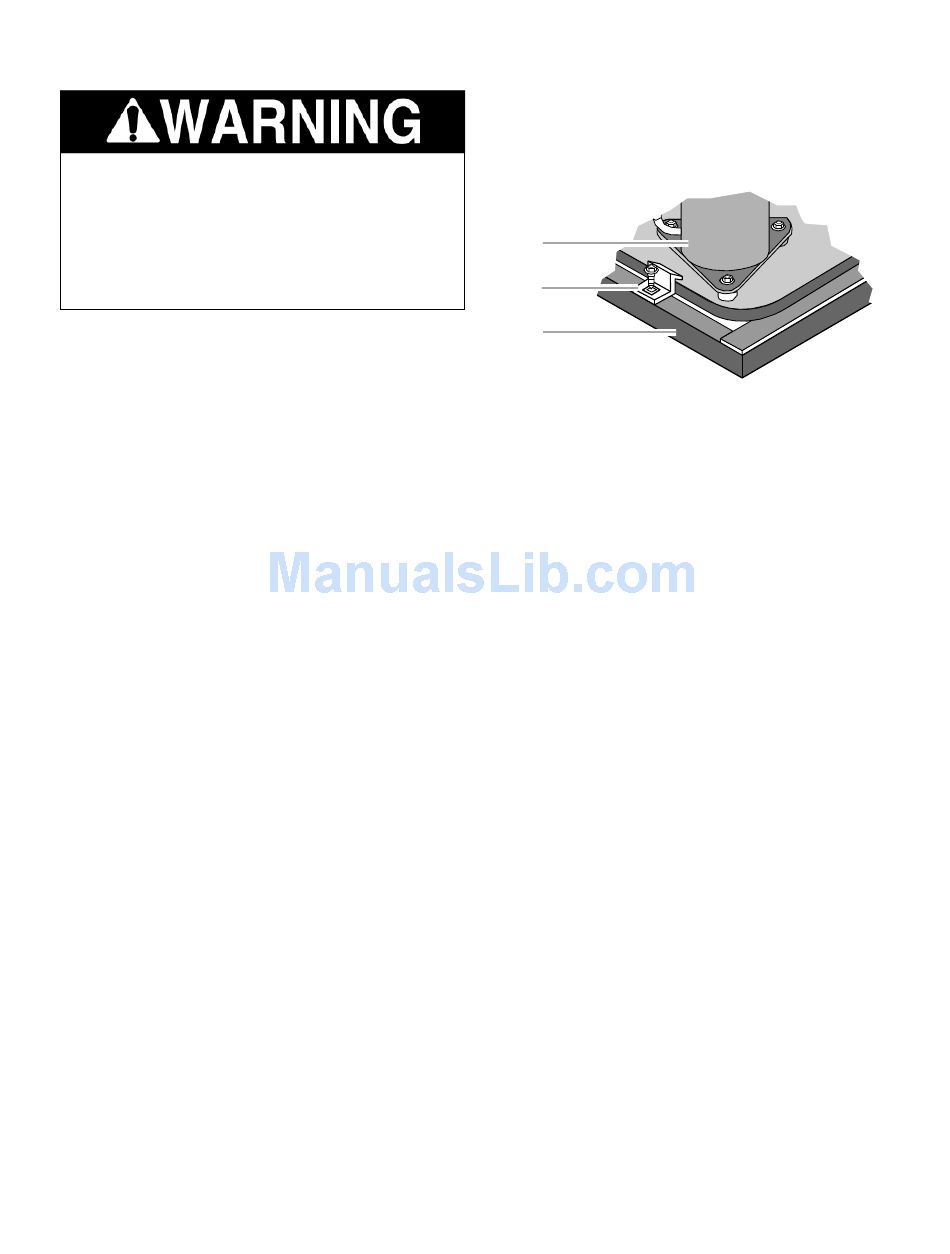

1. Compressor
2. Chassis shipping bracket
3. Shipping pallet
3.
Remove the front cover, which is con-
tained in a protective plastic bag, from
chassis.
4.
Dispose of all shipping and packaging mate-
rial.
