4. MOUNTING

There are three options for mounting the ERC 102
in a freezer or refrigerator .
SAFETY INFO
Risk of electrocution!
For mounting: Do not connect mains power until
the controller is correctly mounted.
For unmounting: Disconnect the power supply
before unmounting.

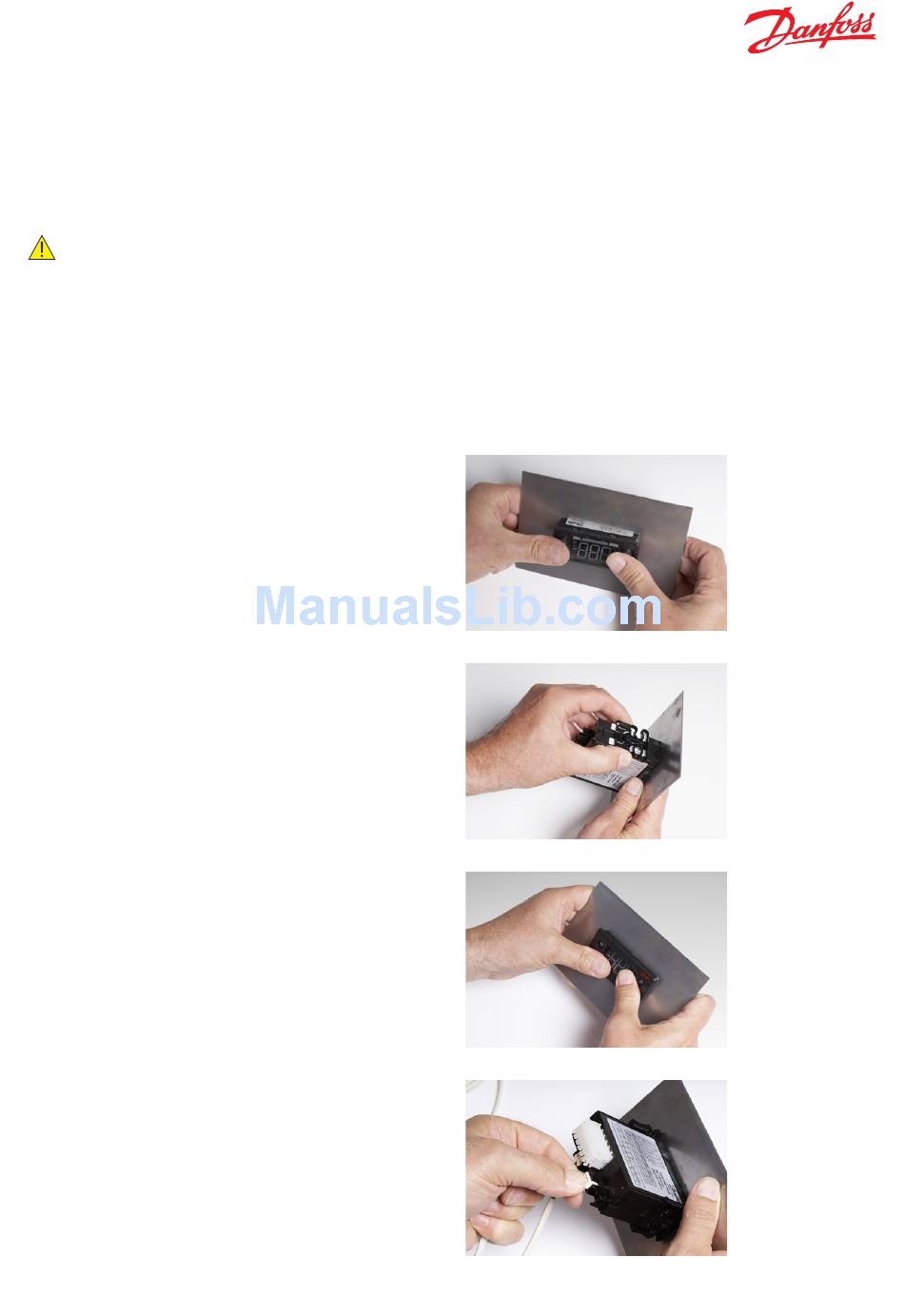

4.1 Rear mounting – Option 1
1 . Insert the ERC 102 into the cabinet .
2 . Attach the clips to each side of the ERC 102 .
3 . Place the front frame on to the ERC 102 and click
it into place .
4 . Connect the sensors and outputs as required and
then the power cable (see Chapter 6 – parameters
for information about programming which inputs
and outputs are applicable to your configuration) .
10 ERC 102 Reference manual – 4 MOUNTING
