Operating Guide Termix VMTD-F MIX-I

4.0 Mounting

4.1 Mounting
Installation must be in compliance with local standards and
regulations.
District heating (DH) - In the following sections, DH refers to the
heat source which supplies the substations. A variety of energy
sources, such as oil, gas or solar power, could be used as the
primary supply to Danfoss substations. For the sake of simplicity,
DH can be taken to mean the primary supply.

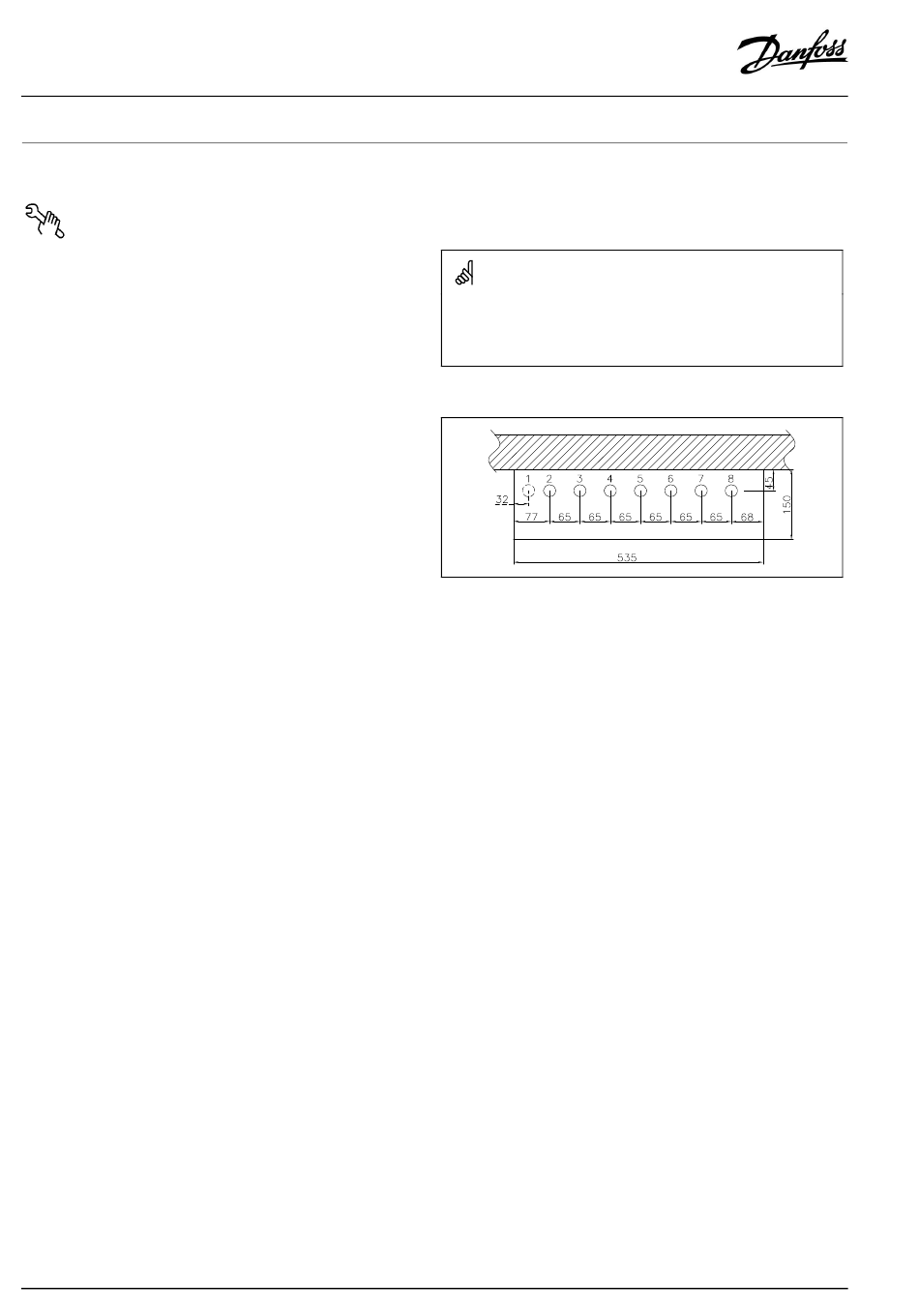

Connections:
1. Optional hot water circulation (HWC)
2. District heating (DH) supply
3. District heating (DH) return
4. Cold water mains (CWM)
5. Domestic cold water (DCW)
6. Domestic hot water (DHW)
7. Heating (HE) supply
8. Heating (HE) return
Connection sizes:
G ¾" (int. thread)
DH + HE:
G ¾" (int. thread)
CWM + DCW + DHW:
Dimensions (mm):
Without cover:
H 770 x W 535 x D 150
With cover:
H 800 x W 540 x D 242
Weight (approx.): 25 kg
4 | © Danfoss | 2024.01
Authorized personnel only
Assembly, start-up and maintenance work must be performed by
qualified and authorized personnel only.
The pipe placement can deviate from the shown drawing. Please note
the markings on the station.
