Refrigeration controller, type EET series

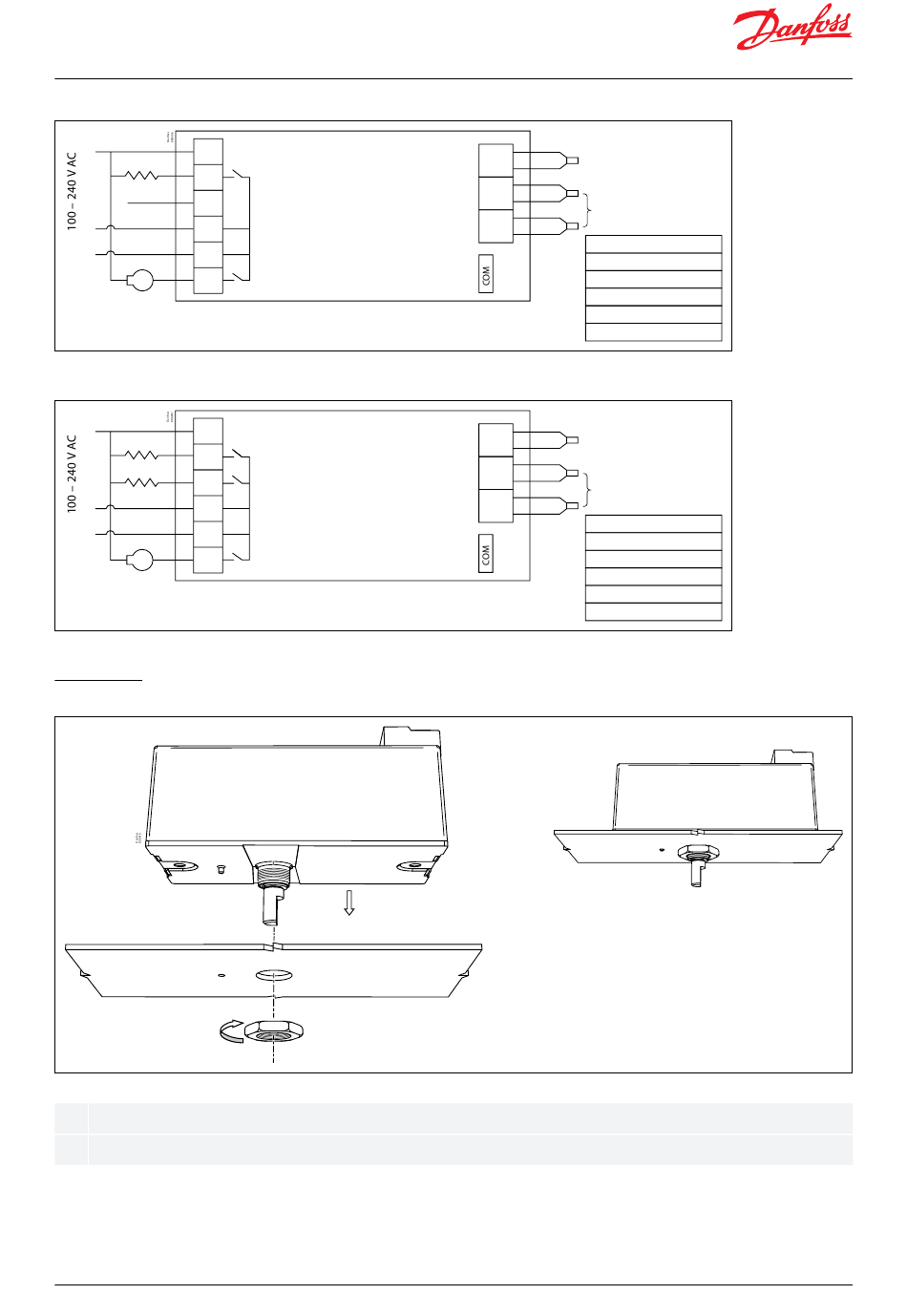

Figure 18: EETa 2W
N
1
DO2
2
Def. Heater/
Fan/Light/Alarm
3
Open
L
4
L
5
DO1
6
Compressor
Figure 19: EETa 3W
N
1
2
Def. Heater/
Fan/Light/Alarm
3
Def. Heater/
Fan/Light/Alarm
L
4
L
5
6
Compressor

Mounting

Figure 20: Mounting
A
Mounting plate thickness = 0.5 – 2.5 mm
B
Torque 100 N-cm max.
© Danfoss | Climate Solutions | 2023.07
DO2
DO3
DO1
B
S1
Cab air sensor
S2
Aux. Inputs
S3
Evap Sensor
Condensor Sensor
Door Switch
External input for pull down
External input for ECO
External input for defrost
S1
Cab air sensor
S2
Aux. Inputs
S3
Evap Sensor
Condensor Sensor
Door Switch
External input for pull down
External input for ECO
External input for defrost
A
