Superheat controller and stepper valve driver
Hide thumbs Also See for EKE 1A:

Advertisement

Quick Links

Download this manual
User Guide
Superheat controller and stepper valve
driver

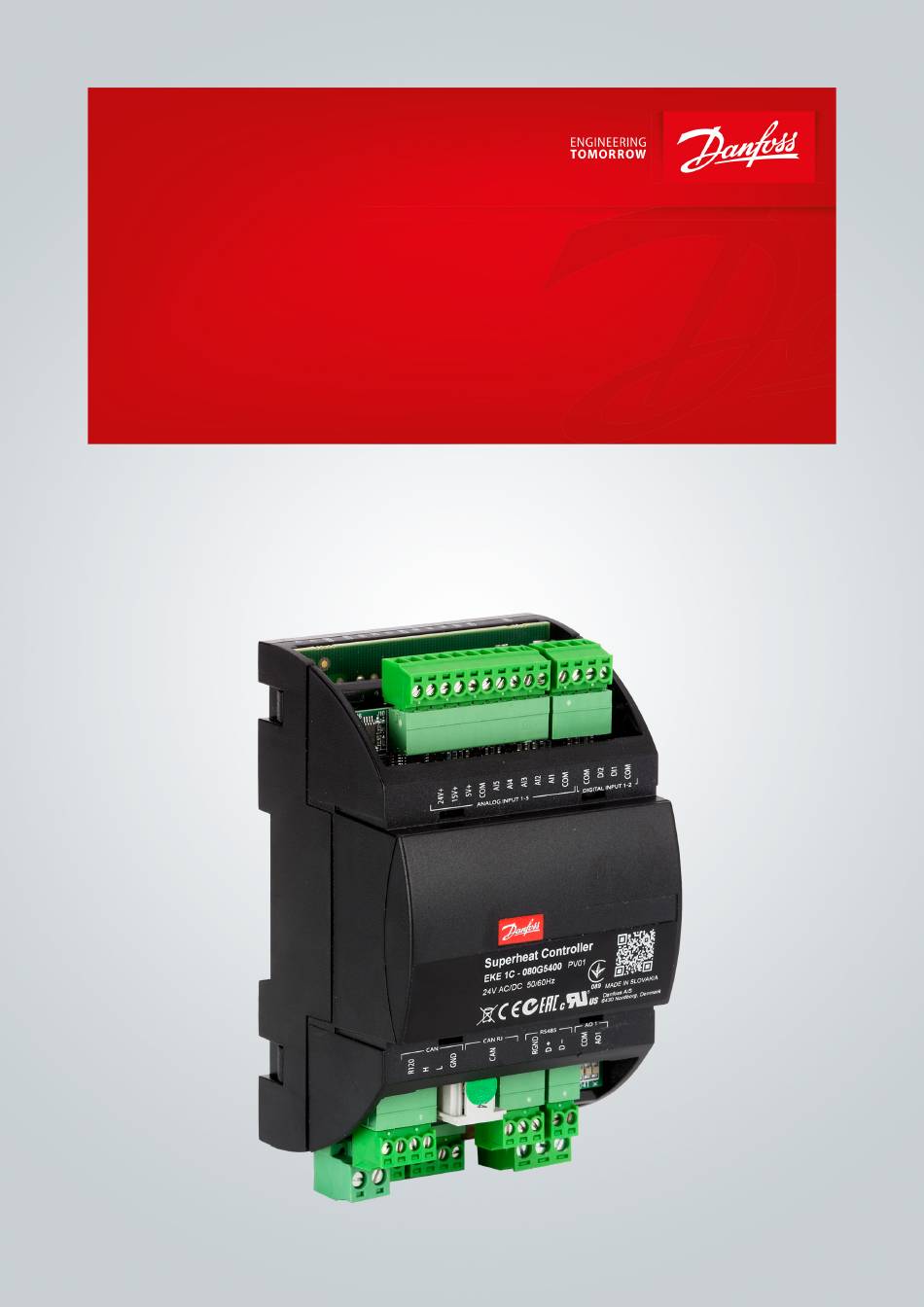

Type EKE 1A, 1B, 1C (PV05), 1D (PV02)
For air conditioning, commerical/Industrial heatpumps and refrigeration applications
