Danfoss 102 User Instructions

102
User Instructions
The 102 Mini Programmer will control your Heating and Hot Water system
automatically, to save you the trouble of having to manually switch the system
on and off every day. It consists of one switch which controls your heating and
hot water and a clock (timer) which allows you to decide when and how long your
heating and hot water will be on for.

Setting the time of day

Remove dial cover (turn slightly to the left and pull off)
Turn the dial clockwise until the correct time is aligned to the TIME
mark (Fig.1).
IMPORTANT: turn the dial clockwise only
Remember:
You will have to re-set the time after a power-cut, and also when the clocks
change in Spring and Autumn.

Programming Event Times

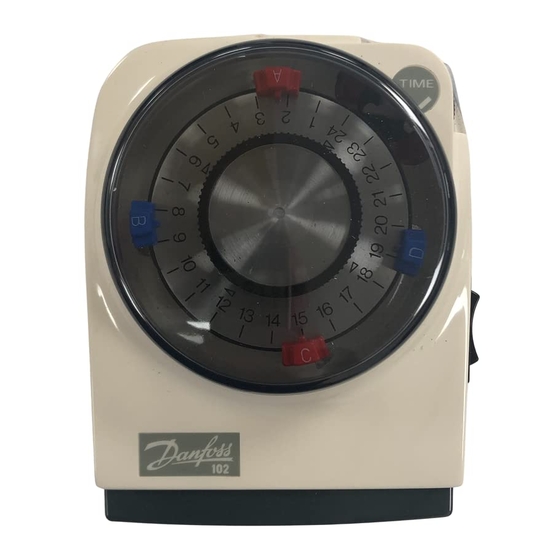

There are four TAPPETS on your timing dial, two red and two blue. The red
tappets are the ON switches and the blue tappets are the OFF switches (Fig.2).
1 If not already done so, remove the dial cover (turn slightly to the left & pull off)
2 Decide when you want your hot water and heating to come on and go off.
While gripping the dial knob slide the RED tappets to the required ON
times and the BLUE tappets to the required OFF times (please note, the
tappets may be quite stiff to move) Fig.3
Example:
If you want your system ON between 8am and 10am and again between
4pm and 11pm, set the tappets as shown. (A to 8, B to 10, C to 16, D to 23).
Note: Tappets can be moved around the dial in a clockwise or anti-clockwise
direction, as convenient.
Fig.1
A (Red) = 1st ON
Fig.2
B (Blue) = 1st OFF
C (Red) = 2nd ON
D (Blue) = 2nd OFF
Fig.3
TIME mark
