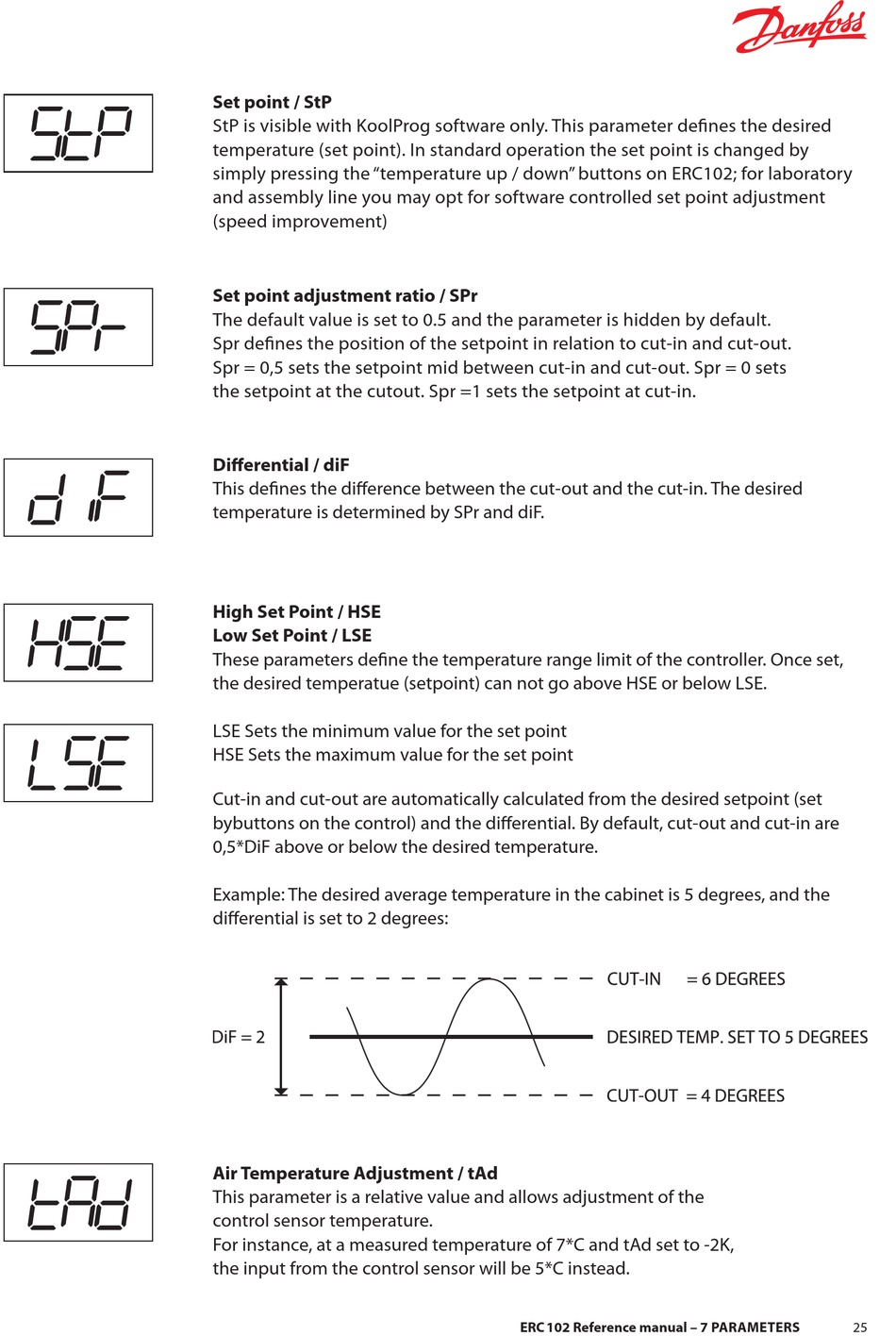

Danfoss ERC 102 Reference Manual page 25

1 Click: Temperature setpoint
Sub function: Up
Set point / StP
StP is visible with KoolProg software only . This parameter defines the desired
temperature (set point) . In standard operation the set point is changed by
simply pressing the "temperature up / down" buttons on ERC102; for laboratory
1 Click: Temperature setpoint
and assembly line you may opt for software controlled set point adjustment
Sub function: Up
(speed improvement)
1 Click: Temperature setpoint
Sub function: Down
Set point adjustment ratio / SPr
The default value is set to 0 .5 and the parameter is hidden by default .
Spr defines the position of the setpoint in relation to cut-in and cut-out .
1 Click: Temperature setpoint
Spr = 0,5 sets the setpoint mid between cut-in and cut-out . Spr = 0 sets
Sub function: Up
the setpoint at the cutout . Spr =1 sets the setpoint at cut-in .
1 Click: Temperature setpoint
Differential / diF
Sub function: Down
This defines the difference between the cut-out and the cut-in . The desired
temperature is determined by SPr and diF . 1 Click: Temperature setpoint
Sub function: Up
High Set Point / HSE
1 Click: Temperature setpoint
1 Click: Temperature setpoint
Low Set Point / LSE
Sub function: Down
Sub function: Up
These parameters define the temperature range limit of the controller . Once set,
the desired temperatue (setpoint) can not go above HSE or below LSE .
LSE Sets the minimum value for the set point
HSE Sets the maximum value for the set point
1 Click: Temperature setpoint
Sub function: Down
Cut-in and cut-out are automatically calculated from the desired setpoint (set
bybuttons on the control) and the differential . By default, cut-out and cut-in are
0,5*DiF above or below the desired temperature .
1 Click: Temperature setpoint
Example: The desired average temperature in the cabinet is 5 degrees, and the
Sub function: Down
differential is set to 2 degrees:
1 Click: Temperature setpoint
Sub function: Up
Air Temperature Adjustment / tAd
This parameter is a relative value and allows adjustment of the
control sensor temperature .
For instance, at a measured temperature of 7*C and tAd set to -2K,
the input from the control sensor will be 5*C instead .
1 Click: Temperature setpoint
Sub function: Down
ERC 102 Reference manual – 7 PARAMETERS 25
