MAKING MODERN LIVING POSSIBLE
ERC 102 refrigeration controller
Reference manual
This reference manual is intended to be used primarily by OEMs for the purposes of programming ERC 102.
It may also be useful for technicians. It is not intended as a user guide for end users.
www.danfoss.com/erc

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ERC 102 and is the answer not in the manual?

Questions and answers

Related Manuals for Danfoss ERC 102

Summary of Contents for Danfoss ERC 102

  • Page 1 ERC 102 refrigeration controller Reference manual This reference manual is intended to be used primarily by OEMs for the purposes of programming ERC 102. It may also be useful for technicians. It is not intended as a user guide for end users.

  • Page 2: Table Of Contents

    Set lighting function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 ERC 102 Reference manual...
  • Page 3 ERC102 Application Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 ERC 102 Reference manual...

  • Page 4: Introduction

    . Three separate password-protected user levels can be used to control more than 200 different parameters to fit all individual requirements . ERC 102’s IP rated body, advanced materials and internationally approved hardware design open it up for use in almost any climate globally, indoors as well as outdoors .

  • Page 5: Content Of The Box

    . For detailed mounting instructions, please contact your local Danfoss representative . NOTE: This sensor is not included in the sample box . Defrost sensors can also be used as condenser sensors. ERC 102 Reference manual – 2 CONTENT OF THE BOX...
  • Page 6 . They are not used with front mounting . There are two identical clips, one placed on either side of the ERC 102 . See Chapter 4 – Mounting – for further details . ERC 102 Reference manual – 2 CONTENT OF THE BOX...

  • Page 7: Connections

    KoolProg: is the software from Danfoss for programming the ERC 102 via a USB cable and a PC rather than with the front panel buttons . Please refer to the KoolProg manual for details . ERC 102 Reference manual – 2 CONTENT OF THE BOX...

  • Page 8: Overview Of The Product

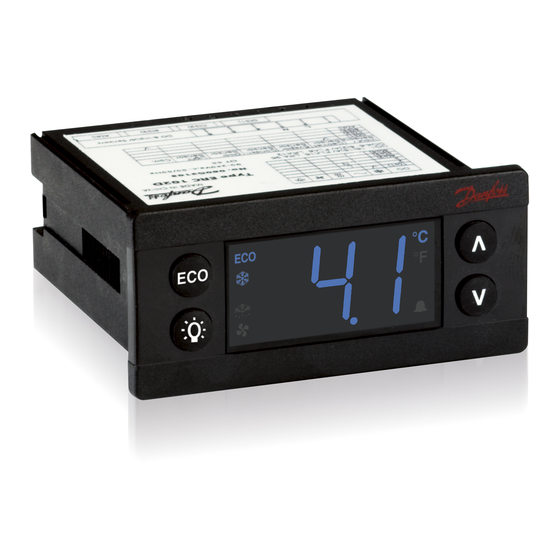

    The ERC 102 is a state-of-the art, IP65 (front)-rated refrigeration controller for use in both Glass Door The ERC 102 can also be programmed via USB using Merchandising and Commercial Fridges and Freezer the Danfoss KoolProg software, allowing the most applications .
