2.3 Connections

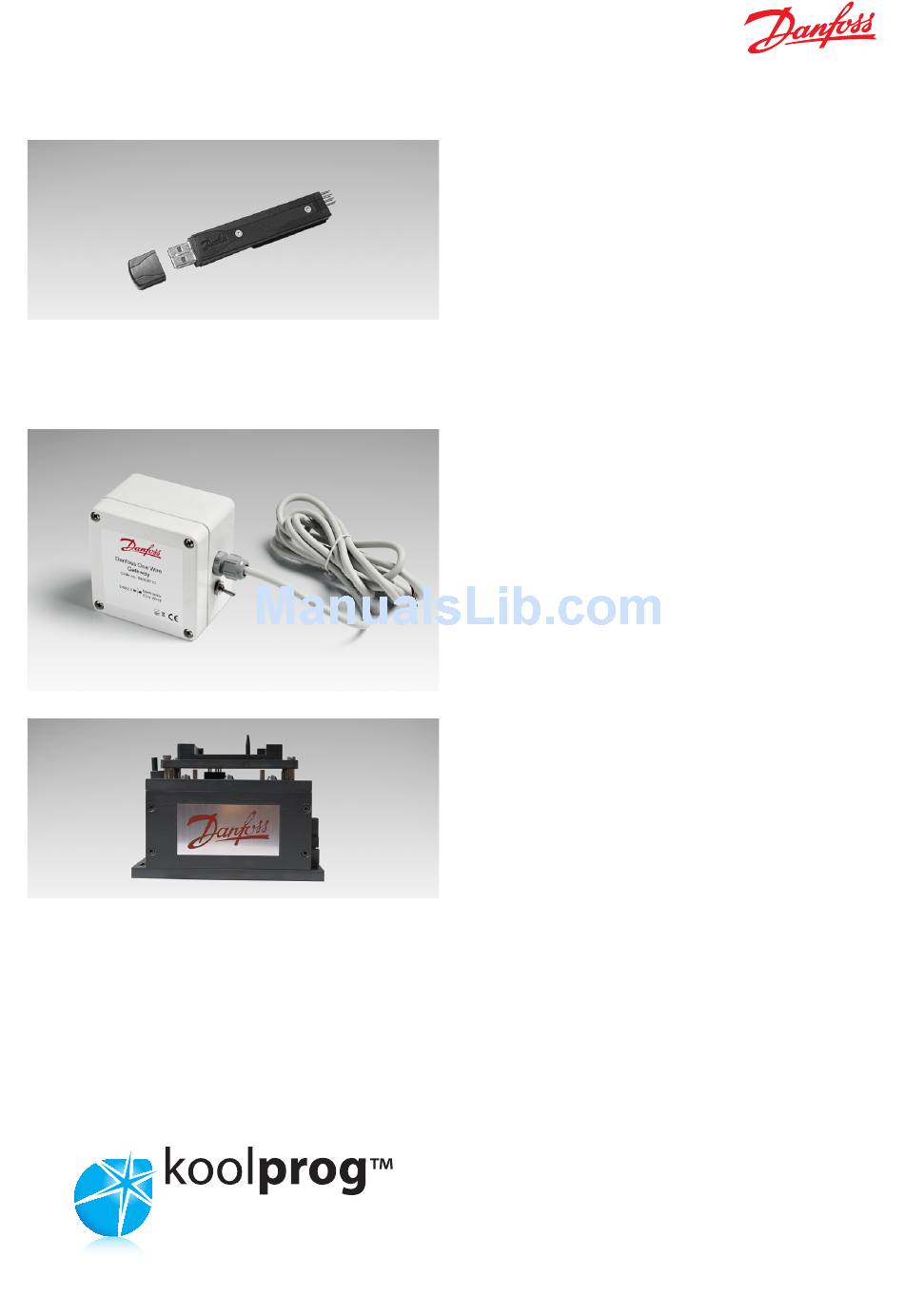

Programming an individual unit in a laboratory:
the USB gateway requires KoolProg Software
running on a PC . It enables parameters to be set in
real time and an array of status information to be
read (bidirectional connection) . This method is used
to determine the correct parameters during R&D .
Once the desired settings have been determined,
a KoolProg ERC specific parameter file is saved to the
EKA183 USB copy key for later mass programming .
The USB Gateway is a laboratory tool, offering fast
and easy programming of any ERC102 controller .
KoolProg software installation is provided;
the gateway is standard inventory for OEM labs .
Mass programming on an assembly line:
the docking station is used for high volume
programming of ERC controllers, for example
on an assembly line . The docking station is a
write-only device .
See above (Programming an individual unit) for
preparing the EKA183 USB copy key, which is to
be inserted into the docking station . The settings
are then loaded into each successive controller
in a matter of seconds .
KoolProg software is not required for mass
programming .
Note: please refer to the koolprog manual for more
details about programming .
KoolProg: is the software from Danfoss for
programming the ERC 102 via a USB cable and
a PC rather than with the front panel buttons .
Please refer to the KoolProg manual for details .
ERC 102 Reference manual – 2 CONTENT OF THE BOX 7
