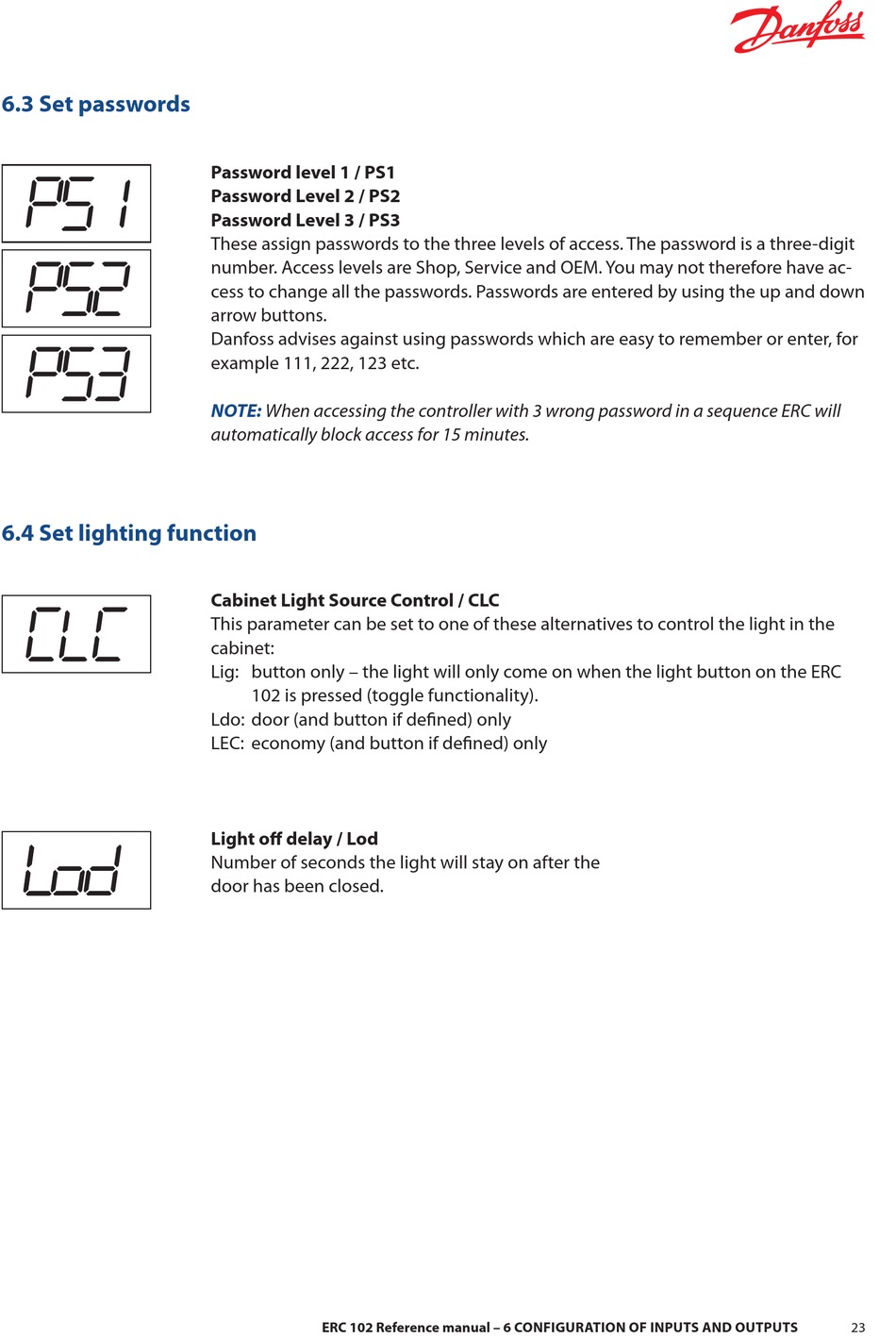

6.3 Set passwords
6.4 Set lighting function
1 Click: Temperature setpoint
Sub function: Up
1 Click: Temperature setpoint
Password level 1 / PS1
Sub function: Up
Password Level 2 / PS2
Password Level 3 / PS3
1 Click: Temperature setpoint
These assign passwords to the three levels of access . The password is a three-digit
Sub function: Up
number . Access levels are Shop, Service and OEM . You may not therefore have ac-
cess to change all the passwords . Passwords are entered by using the up and down
arrow buttons .
1 Click: Temperature setpoint
Danfoss advises against using passwords which are easy to remember or enter, for
Sub function: Down
example 111, 222, 123 etc .
NOTE:
When accessing the controller with 3 wrong password in a sequence ERC will
1 Click: Temperature setpoint
automatically block access for 15 minutes.
Sub function: Down
1 Click: Temperature setpoint
1 Click: Temperature setpoint
Sub function: Up
Sub function: Down
Cabinet Light Source Control / CLC
This parameter can be set to one of these alternatives to control the light in the
cabinet:
Lig: button only – the light will only come on when the light button on the ERC
102 is pressed (toggle functionality) .
Ldo: door (and button if defined) only
LEC: economy (and button if defined) only
1 Click: Temperature setpoint
Sub function: Down
Light off delay / Lod
Number of seconds the light will stay on after the
door has been closed .
ERC 102 Reference manual – 6 CONFIGURATION OF INPUTS AND OUTPUTS
23
