6 . Press the centre section of each clip to release
them in turn . Push the controller carefully out
of the cabinet .

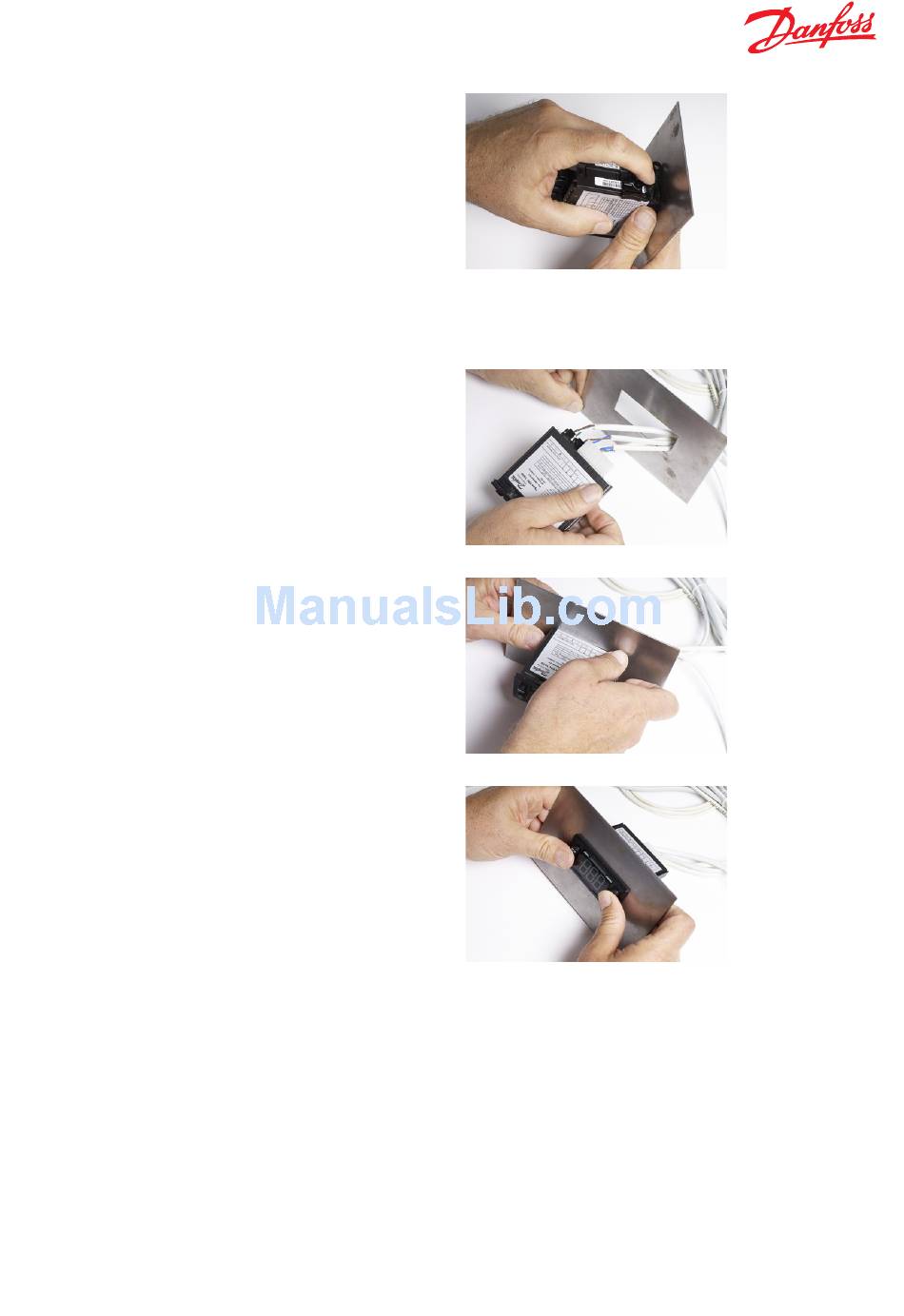

4.2 Front mounting – Option 2
1 . Connect all the cables as required (see Chapter 6
– parameters for information about programming
which inputs and outputs are applicable to your
configuration) .
2 . Insert the ERC 102 into place in the cabinet .
3 . Press the front frame into place – this locks the
ERC 102 into position .
NOTE:
there is no need to use the clips for
front mounting.
12 ERC 102 Reference manual – 4 MOUNTING
