Symbologies; Miscellaneous - CipherLab 9700 Reference Manual

9700 Mobile Computer (WEH)

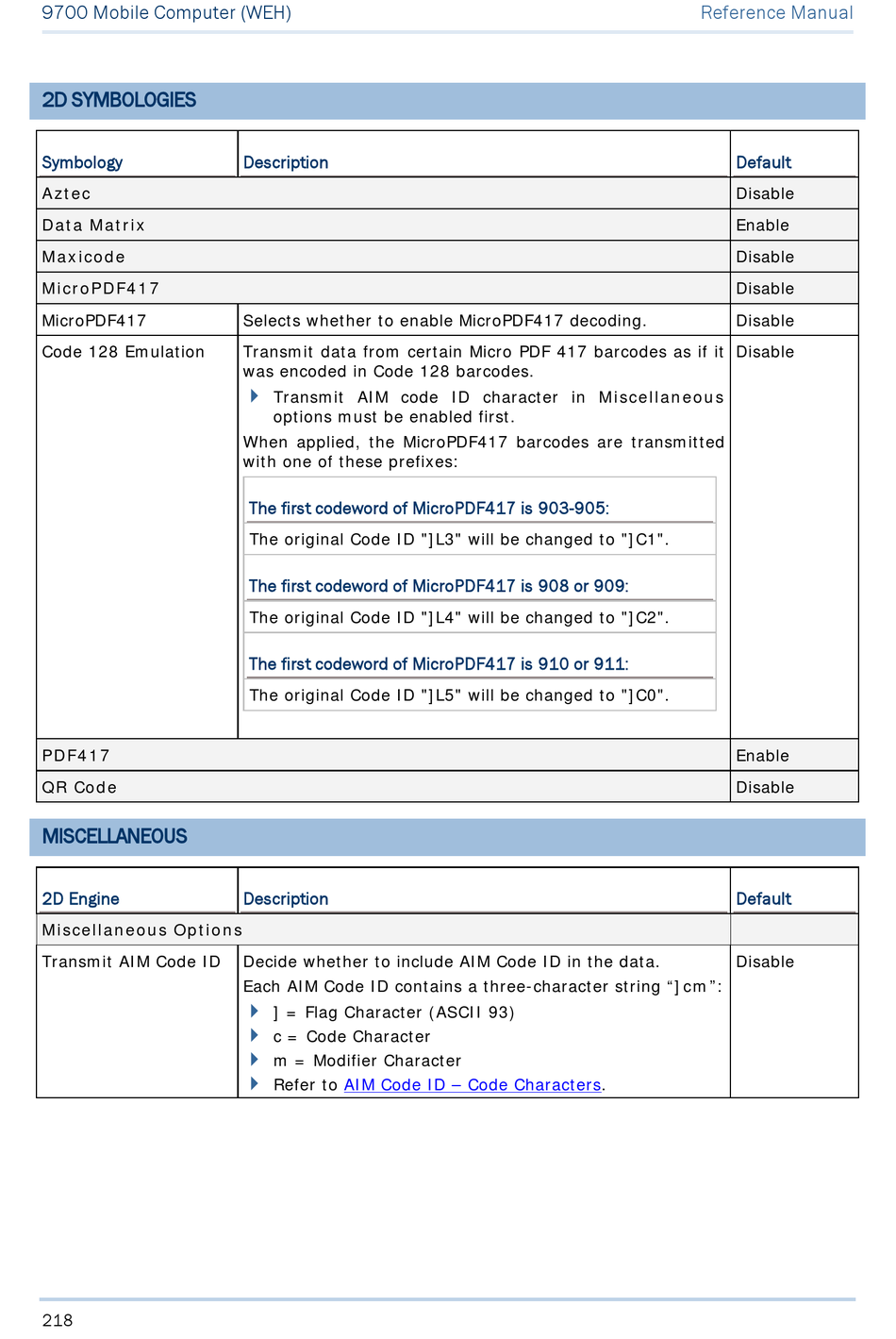

2D SYMBOLOGIES
Symbology
Aztec
Data Matrix
Maxicode
MicroPDF417
MicroPDF417
Code 128 Emulation
PDF417
QR Code

MISCELLANEOUS

2D Engine
Miscellaneous Options
Transmit AIM Code ID
218
Description
Selects whether to enable MicroPDF417 decoding.
Transmit data from certain Micro PDF 417 barcodes as if it
was encoded in Code 128 barcodes.
 Transmit AIM code ID character in Miscellaneous
options must be enabled first.
When applied, the MicroPDF417 barcodes are transmitted
with one of these prefixes:
The first codeword of MicroPDF417 is 903-905:
The original Code ID "]L3" will be changed to "]C1".
The first codeword of MicroPDF417 is 908 or 909:
The original Code ID "]L4" will be changed to "]C2".
The first codeword of MicroPDF417 is 910 or 911:
The original Code ID "]L5" will be changed to "]C0".
Description
Decide whether to include AIM Code ID in the data.
Each AIM Code ID contains a three-character string "]cm":

] = Flag Character (ASCII 93)
 c = Code Character
 m = Modifier Character
 Refer to AIM Code ID – Code Characters.
Reference Manual
Default
Disable
Enable
Disable
Disable
Disable
Disable
Enable
Disable
Default
Disable
