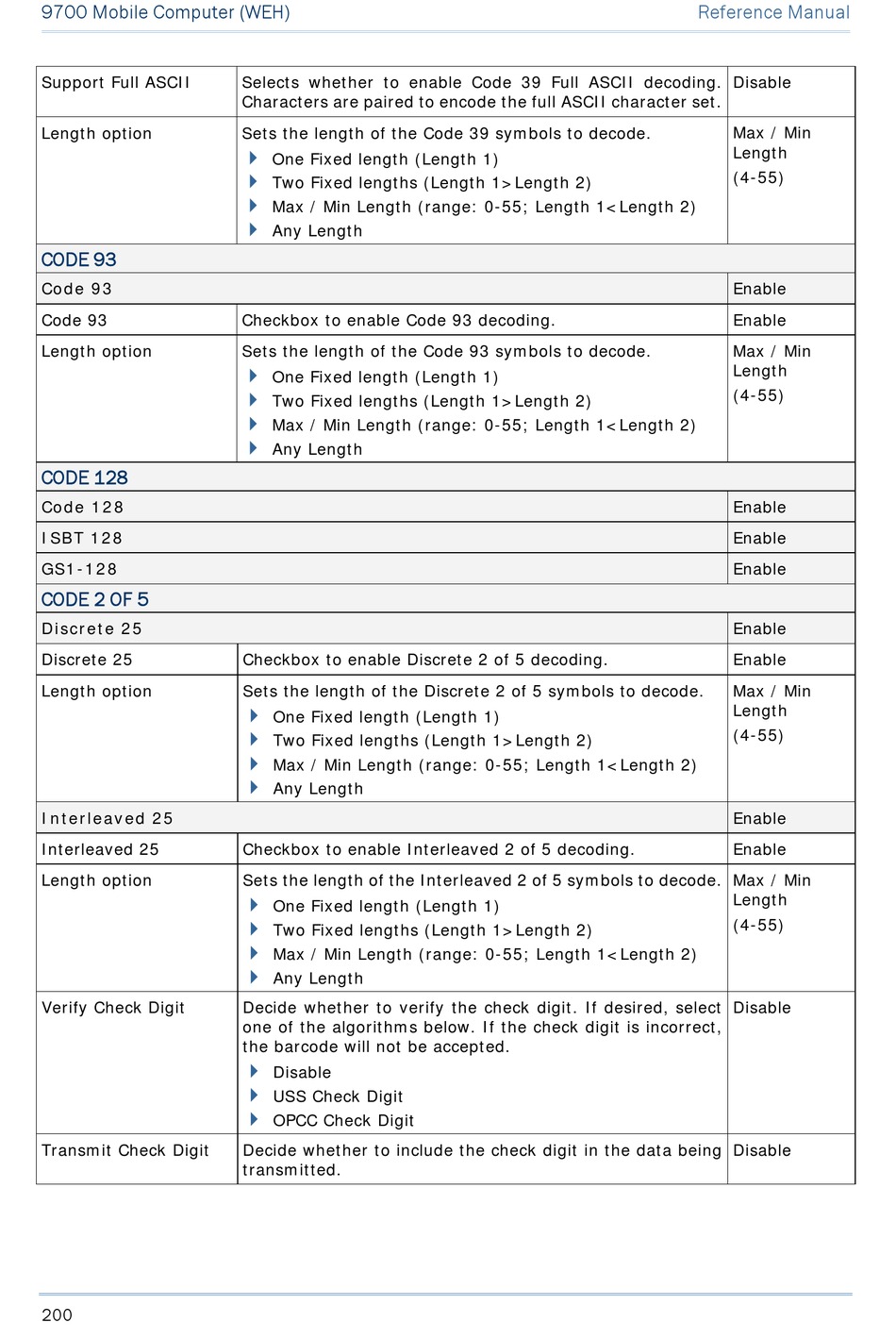

CipherLab 9700 Reference Manual page 211

9700 Mobile Computer (WEH)
Support Full ASCII
Length option
CODE 93
Code 93
Code 93
Length option
CODE 128
Code 128
ISBT 128
GS1-128
CODE 2 OF 5
Discrete 25
Discrete 25
Length option
Interleaved 25
Interleaved 25
Length option
Verify Check Digit
Transmit Check Digit
200
Selects whether to enable Code 39 Full ASCII decoding.
Characters are paired to encode the full ASCII character set.
Sets the length of the Code 39 symbols to decode.
 One Fixed length (Length 1)
 Two Fixed lengths (Length 1>Length 2)
 Max / Min Length (range: 0-55; Length 1<Length 2)
 Any Length
Checkbox to enable Code 93 decoding.
Sets the length of the Code 93 symbols to decode.
 One Fixed length (Length 1)
 Two Fixed lengths (Length 1>Length 2)

Max / Min Length (range: 0-55; Length 1<Length 2)
 Any Length
Checkbox to enable Discrete 2 of 5 decoding.
Sets the length of the Discrete 2 of 5 symbols to decode.
 One Fixed length (Length 1)
 Two Fixed lengths (Length 1>Length 2)

Max / Min Length (range: 0-55; Length 1<Length 2)
 Any Length
Checkbox to enable Interleaved 2 of 5 decoding.
Sets the length of the Interleaved 2 of 5 symbols to decode.
 One Fixed length (Length 1)
 Two Fixed lengths (Length 1>Length 2)
 Max / Min Length (range: 0-55; Length 1<Length 2)
 Any Length
Decide whether to verify the check digit. If desired, select
one of the algorithms below. If the check digit is incorrect,
the barcode will not be accepted.
 Disable
 USS Check Digit
 OPCC Check Digit
Decide whether to include the check digit in the data being
transmitted.
Reference Manual
Disable
Max / Min
Length
(4-55)
Enable
Enable
Max / Min
Length
(4-55)
Enable
Enable
Enable
Enable
Enable
Max / Min
Length
(4-55)
Enable
Enable
Max / Min
Length
(4-55)
Disable
Disable
