Note: On the 2D Imager, the light beam will be sent out when the trigger is pressed down,
and will stop when the trigger is released, or the decode timeout has passed.

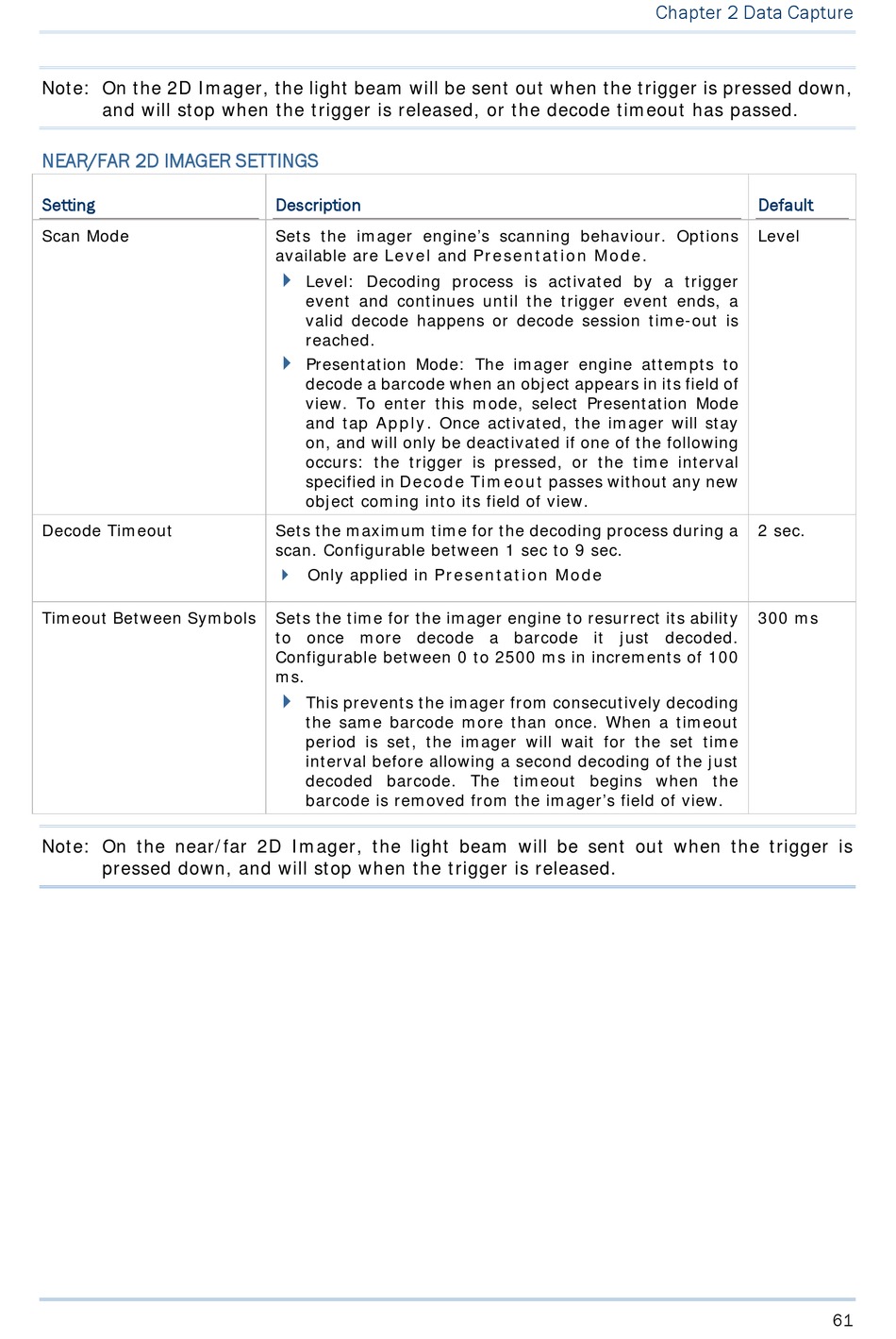

NEAR/FAR 2D IMAGER SETTINGS
Setting
Scan Mode
Decode Timeout
Timeout Between Symbols
Note: On the near/far 2D Imager, the light beam will be sent out when the trigger is
pressed down, and will stop when the trigger is released.
Description
Sets the imager engine's scanning behaviour. Options
available are Level and Presentation Mode.
Level: Decoding process is activated by a trigger
event and continues until the trigger event ends, a
valid decode happens or decode session time-out is
reached.
Presentation Mode: The imager engine attempts to
decode a barcode when an object appears in its field of
view. To enter this mode, select Presentation Mode
and tap Apply. Once activated, the imager will stay
on, and will only be deactivated if one of the following
occurs: the trigger is pressed, or the time interval
specified in Decode Timeout passes without any new
object coming into its field of view.
Sets the maximum time for the decoding process during a
scan. Configurable between 1 sec to 9 sec.
Only applied in Presentation Mode
Sets the time for the imager engine to resurrect its ability
to once more decode a barcode it just decoded.
Configurable between 0 to 2500 ms in increments of 100
ms.
This prevents the imager from consecutively decoding
the same barcode more than once. When a timeout
period is set, the imager will wait for the set time
interval before allowing a second decoding of the just
decoded barcode. The timeout begins when the
barcode is removed from the imager's field of view.
Chapter 2 Data Capture
Default
Level
2 sec.
300 ms
61
