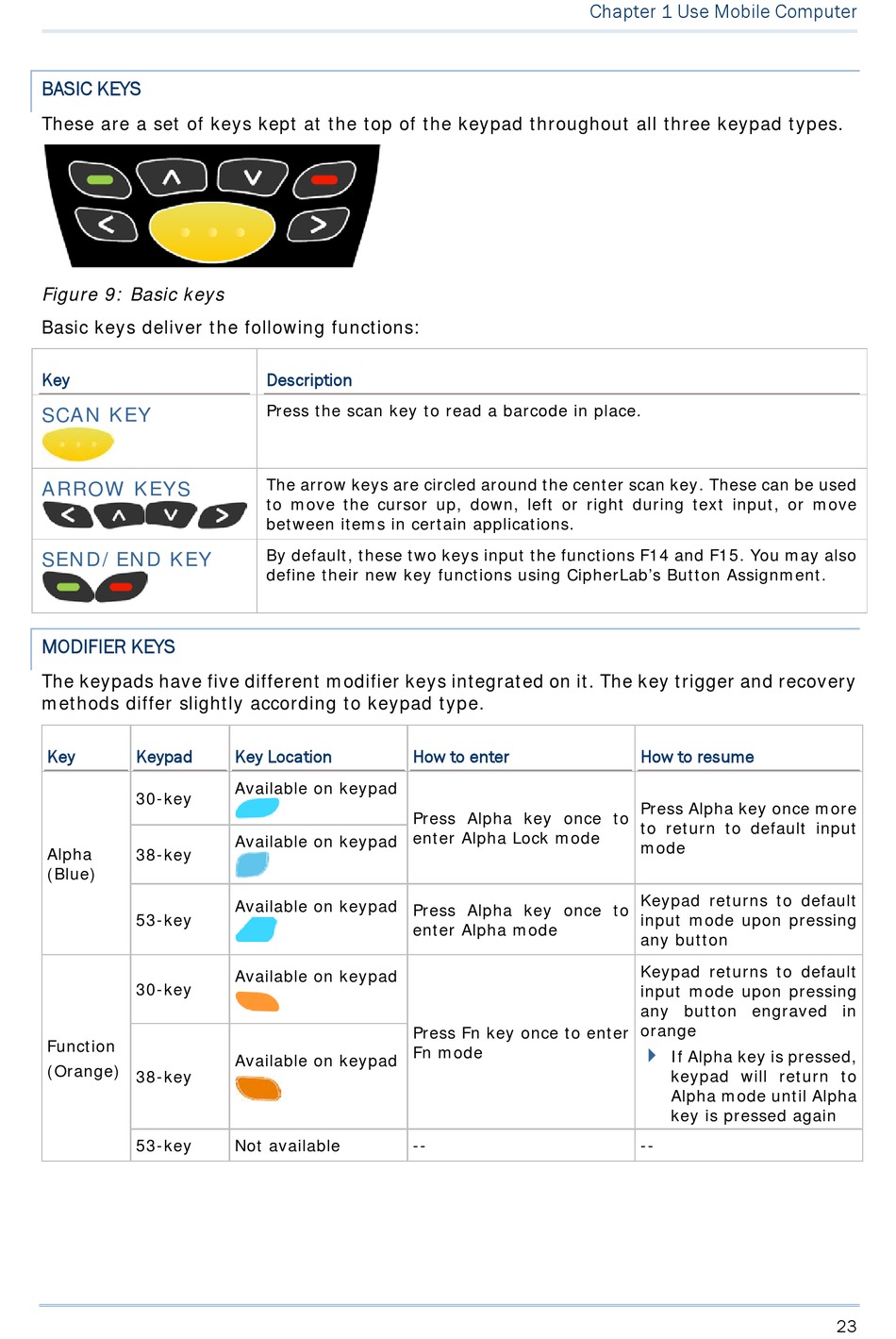

BASIC KEYS
These are a set of keys kept at the top of the keypad throughout all three keypad types.
Figure 9: Basic keys
Basic keys deliver the following functions:
Key
SCAN KEY
ARROW KEYS
SEND/END KEY
MODIFIER KEYS
The keypads have five different modifier keys integrated on it. The key trigger and recovery
methods differ slightly according to keypad type.
Key
Keypad
30-key
Alpha
38-key
(Blue)
53-key
30-key
Function
(Orange)
38-key
53-key
Description
Press the scan key to read a barcode in place.
The arrow keys are circled around the center scan key. These can be used
to move the cursor up, down, left or right during text input, or move
between items in certain applications.
By default, these two keys input the functions F14 and F15. You may also
define their new key functions using CipherLab's Button Assignment.
Key Location
Available on keypad
Available on keypad
Available on keypad Press Alpha key once to
Available on keypad
Available on keypad
Not available
How to enter
Press Alpha key once to
enter Alpha Lock mode
enter Alpha mode
Press Fn key once to enter
Fn mode
--
Chapter 1 Use Mobile Computer
How to resume
Press Alpha key once more
to return to default input
mode
Keypad returns to default
input mode upon pressing
any button
Keypad returns to default
input mode upon pressing
any button engraved in
orange
If Alpha key is pressed,
keypad will return to
Alpha mode until Alpha
key is pressed again
--
