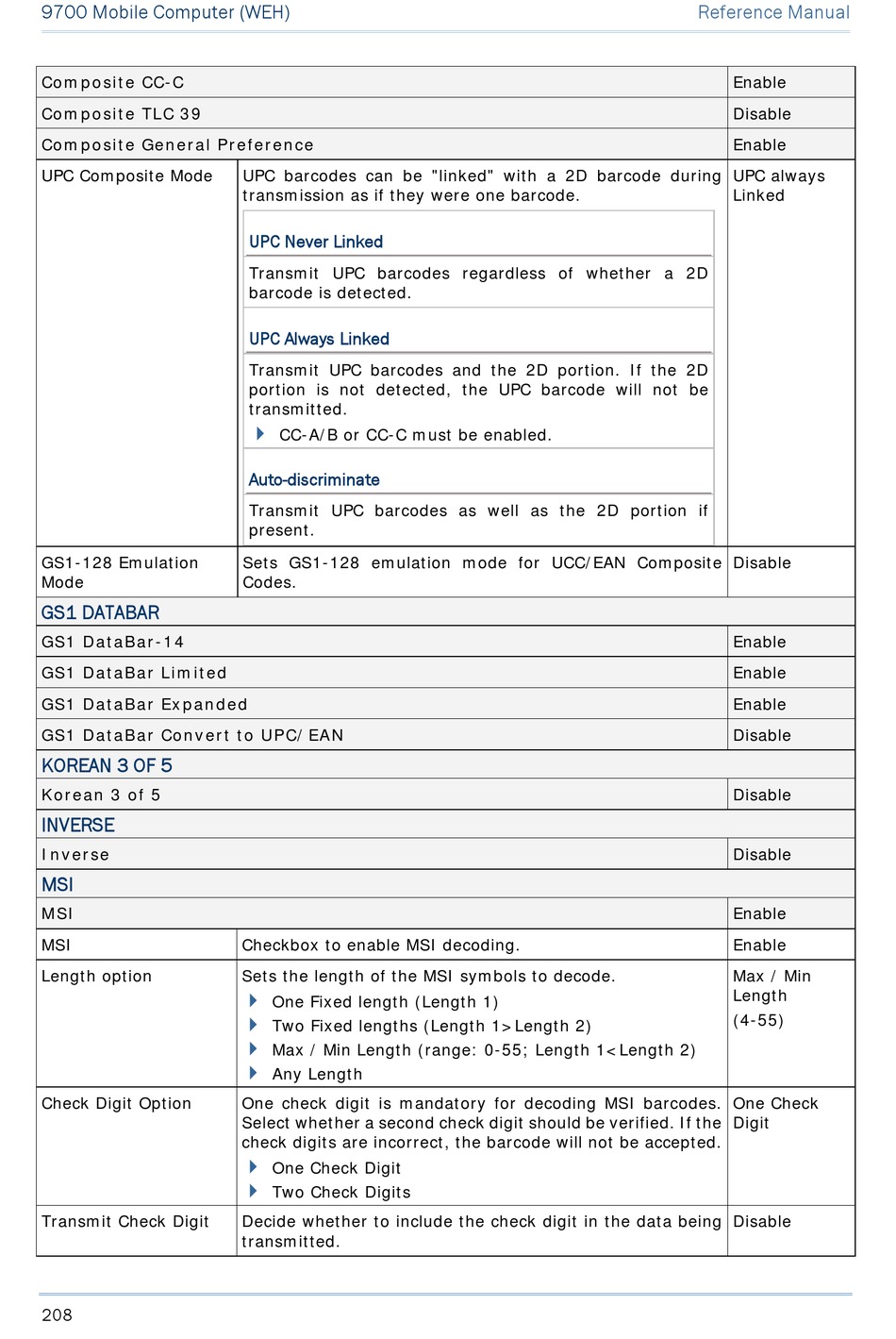

9700 Mobile Computer (WEH)
Composite CC-C
Composite TLC 39
Composite General Preference
UPC Composite Mode
GS1-128 Emulation
Mode
GS1 DATABAR
GS1 DataBar-14
GS1 DataBar Limited
GS1 DataBar Expanded
GS1 DataBar Convert to UPC/EAN
KOREAN 3 OF 5
Korean 3 of 5
INVERSE
Inverse
MSI
MSI
MSI
Length option
Check Digit Option
Transmit Check Digit
208
UPC barcodes can be "linked" with a 2D barcode during
transmission as if they were one barcode.
UPC Never Linked
Transmit UPC barcodes regardless of whether a 2D
barcode is detected.
UPC Always Linked
Transmit UPC barcodes and the 2D portion. If the 2D
portion is not detected, the UPC barcode will not be
transmitted.
 CC-A/B or CC-C must be enabled.
Auto-discriminate
Transmit UPC barcodes as well as the 2D portion if
present.
Sets GS1-128 emulation mode for UCC/EAN Composite
Codes.
Checkbox to enable MSI decoding.
Sets the length of the MSI symbols to decode.
 One Fixed length (Length 1)

Two Fixed lengths (Length 1>Length 2)
 Max / Min Length (range: 0-55; Length 1<Length 2)
 Any Length
One check digit is mandatory for decoding MSI barcodes.
Select whether a second check digit should be verified. If the
check digits are incorrect, the barcode will not be accepted.
 One Check Digit
 Two Check Digits
Decide whether to include the check digit in the data being
transmitted.
Reference Manual
Enable
Disable
Enable
UPC always
Linked
Disable
Enable
Enable
Enable
Disable
Disable
Disable
Enable
Enable
Max / Min
Length
(4-55)
One Check
Digit
Disable
