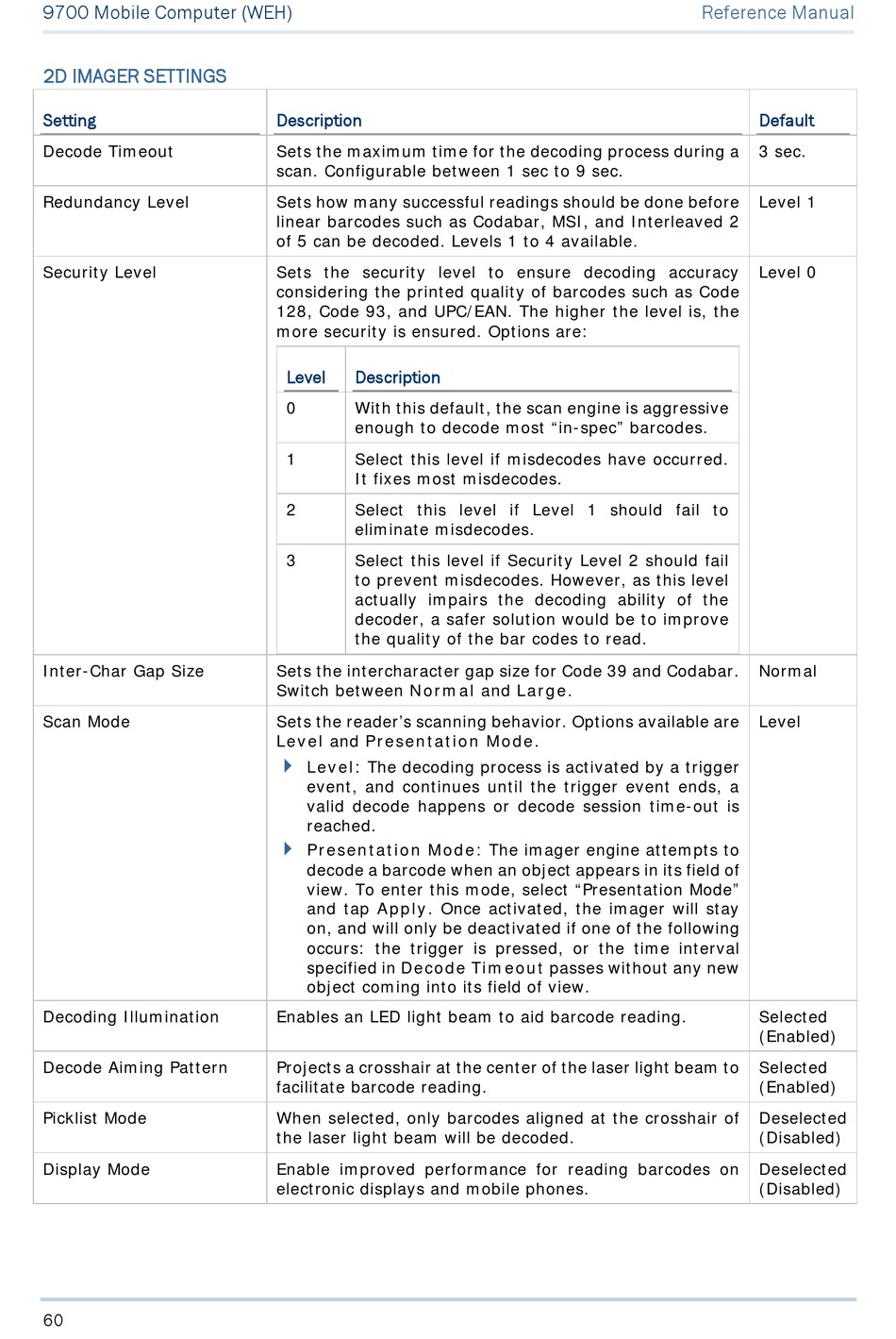

2D IMAGER SETTINGS
Setting
Decode Timeout
Redundancy Level
Security Level
Inter-Char Gap Size
Scan Mode
Decoding Illumination
Decode Aiming Pattern
Picklist Mode
Display Mode
60
Description
Sets the maximum time for the decoding process during a
scan. Configurable between 1 sec to 9 sec.
Sets how many successful readings should be done before
linear barcodes such as Codabar, MSI, and Interleaved 2
of 5 can be decoded. Levels 1 to 4 available.
Sets the security level to ensure decoding accuracy
considering the printed quality of barcodes such as Code
128, Code 93, and UPC/EAN. The higher the level is, the
more security is ensured. Options are:
Level Description
0 With this default, the scan engine is aggressive
enough to decode most "in-spec" barcodes.
1 Select this level if misdecodes have occurred.
It fixes most misdecodes.
2 Select this level if Level 1 should fail to
eliminate misdecodes.
3 Select this level if Security Level 2 should fail
to prevent misdecodes. However, as this level
actually impairs the decoding ability of the
decoder, a safer solution would be to improve
the quality of the bar codes to read.
Sets the intercharacter gap size for Code 39 and Codabar.
Switch between Normal and Large.
Sets the reader's scanning behavior. Options available are
Level and Presentation Mode.
Level: The decoding process is activated by a trigger

event, and continues until the trigger event ends, a
valid decode happens or decode session time-out is
reached.
 Presentation Mode: The imager engine attempts to
decode a barcode when an object appears in its field of
view. To enter this mode, select "Presentation Mode"
and tap Apply. Once activated, the imager will stay
on, and will only be deactivated if one of the following
occurs: the trigger is pressed, or the time interval
specified in Decode Timeout passes without any new
object coming into its field of view.
Enables an LED light beam to aid barcode reading.
Projects a crosshair at the center of the laser light beam to
facilitate barcode reading.
When selected, only barcodes aligned at the crosshair of
the laser light beam will be decoded.
Enable improved performance for reading barcodes on
electronic displays and mobile phones.
Reference Manual
Default
3 sec.
Level 1
Level 0
Normal
Level
Selected
(Enabled)
Selected
(Enabled)
Deselected
(Disabled)
Deselected
(Disabled)
