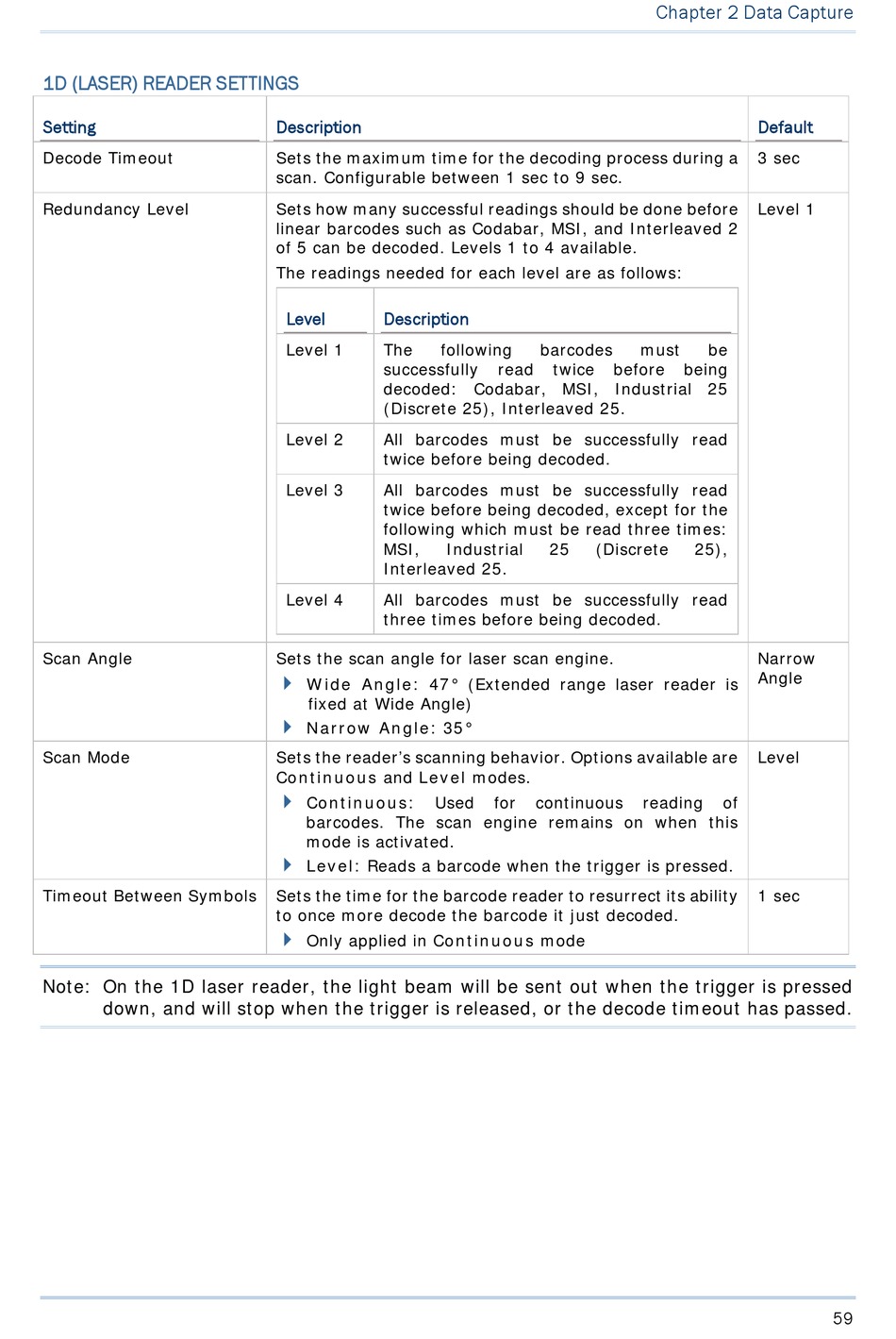

1D (LASER) READER SETTINGS
Setting
Decode Timeout
Redundancy Level
Scan Angle
Scan Mode
Timeout Between Symbols
Note: On the 1D laser reader, the light beam will be sent out when the trigger is pressed
down, and will stop when the trigger is released, or the decode timeout has passed.
Description
Sets the maximum time for the decoding process during a
scan. Configurable between 1 sec to 9 sec.
Sets how many successful readings should be done before
linear barcodes such as Codabar, MSI, and Interleaved 2
of 5 can be decoded. Levels 1 to 4 available.
The readings needed for each level are as follows:
Level Description
Level 1 The following
successfully
decoded: Codabar, MSI, Industrial 25
(Discrete 25), Interleaved 25.
Level 2 All barcodes must be successfully read
twice before being decoded.
Level 3 All barcodes must be successfully read
twice before being decoded, except for the
following which must be read three times:
MSI,
Interleaved 25.
Level 4 All barcodes must be successfully read
three times before being decoded.
Sets the scan angle for laser scan engine.
 Wide Angle: 47° (Extended range laser reader is
fixed at Wide Angle)
 Narrow Angle: 35°
Sets the reader's scanning behavior. Options available are
Continuous and Level modes.
 Continuous: Used
barcodes. The scan engine remains on when this
mode is activated.
 Level: Reads a barcode when the trigger is pressed.
Sets the time for the barcode reader to resurrect its ability
to once more decode the barcode it just decoded.
 Only applied in Continuous mode
barcodes
read twice before
Industrial 25 (Discrete
for continuous
Chapter 2 Data Capture
Default
3 sec
Level 1
must be
being
25),
Narrow
Angle
Level
reading of
1 sec
