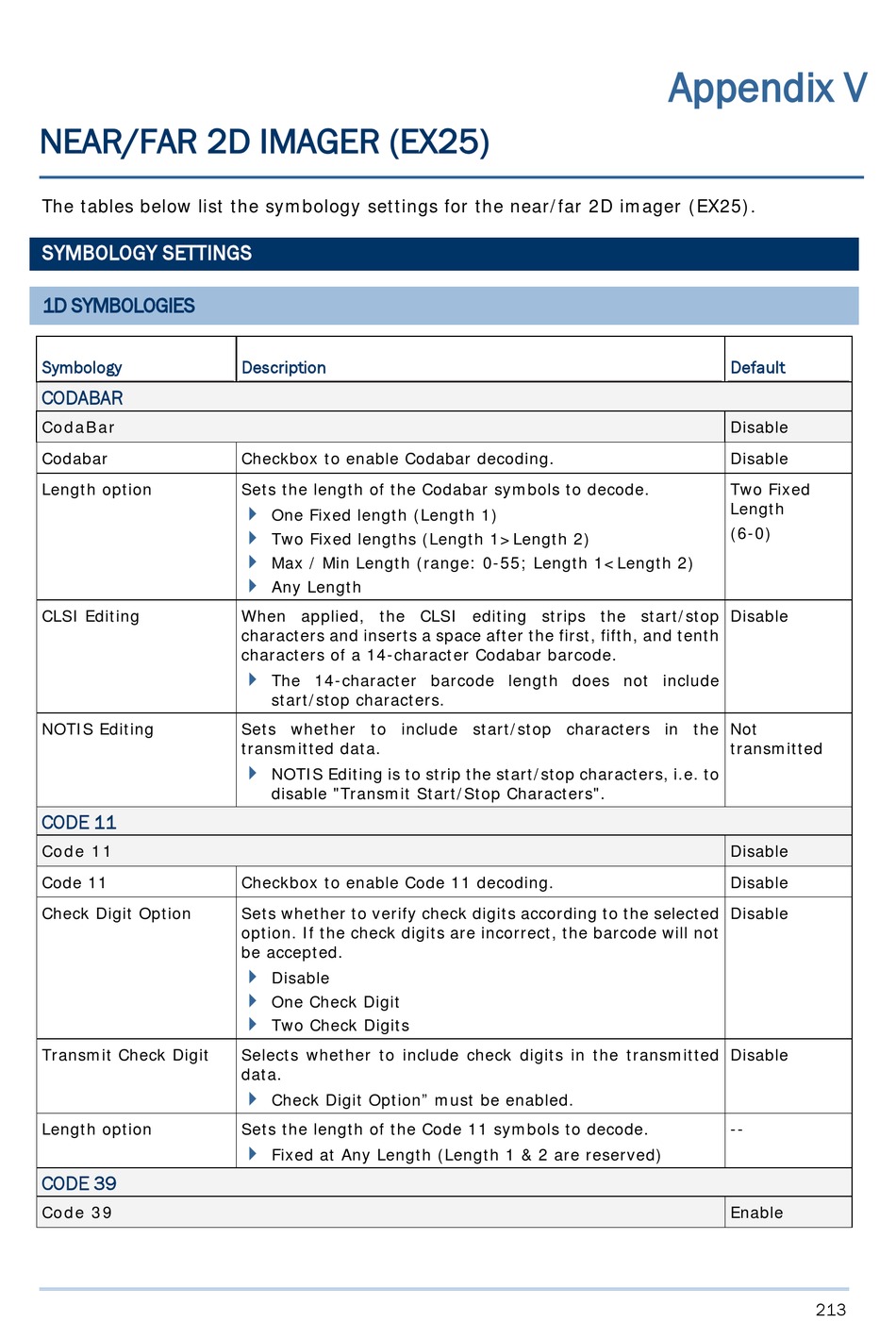

NEAR/FAR 2D IMAGER (EX25)

The tables below list the symbology settings for the near/far 2D imager (EX25).

SYMBOLOGY SETTINGS

1D SYMBOLOGIES
Symbology
CODABAR
CodaBar
Codabar
Length option
CLSI Editing
NOTIS Editing
CODE 11
Code 11
Code 11
Check Digit Option
Transmit Check Digit
Length option
CODE 39
Code 39
Description
Checkbox to enable Codabar decoding.
Sets the length of the Codabar symbols to decode.

One Fixed length (Length 1)
 Two Fixed lengths (Length 1>Length 2)

Max / Min Length (range: 0-55; Length 1<Length 2)
 Any Length
When applied, the CLSI editing strips the start/stop
characters and inserts a space after the first, fifth, and tenth
characters of a 14-character Codabar barcode.

The 14-character barcode length does not include
start/stop characters.
Sets whether to include start/stop characters in the
transmitted data.
 NOTIS Editing is to strip the start/stop characters, i.e. to
disable "Transmit Start/Stop Characters".
Checkbox to enable Code 11 decoding.
Sets whether to verify check digits according to the selected
option. If the check digits are incorrect, the barcode will not
be accepted.

Disable
 One Check Digit

Two Check Digits
Selects whether to include check digits in the transmitted
data.
 Check Digit Option" must be enabled.
Sets the length of the Code 11 symbols to decode.
 Fixed at Any Length (Length 1 & 2 are reserved)
Appendix V
Default
Disable
Disable
Two Fixed
Length
(6-0)
Disable
Not
transmitted
Disable
Disable
Disable
Disable
--
Enable
