Sun Microsystems SPARC classic Service Manual page 97

SCSI device
address jumpers
SCSI address 3
(E1 and E2 jumpered)
SCSI power
terminator
(E5 jumpered)
Power connector
Data connector

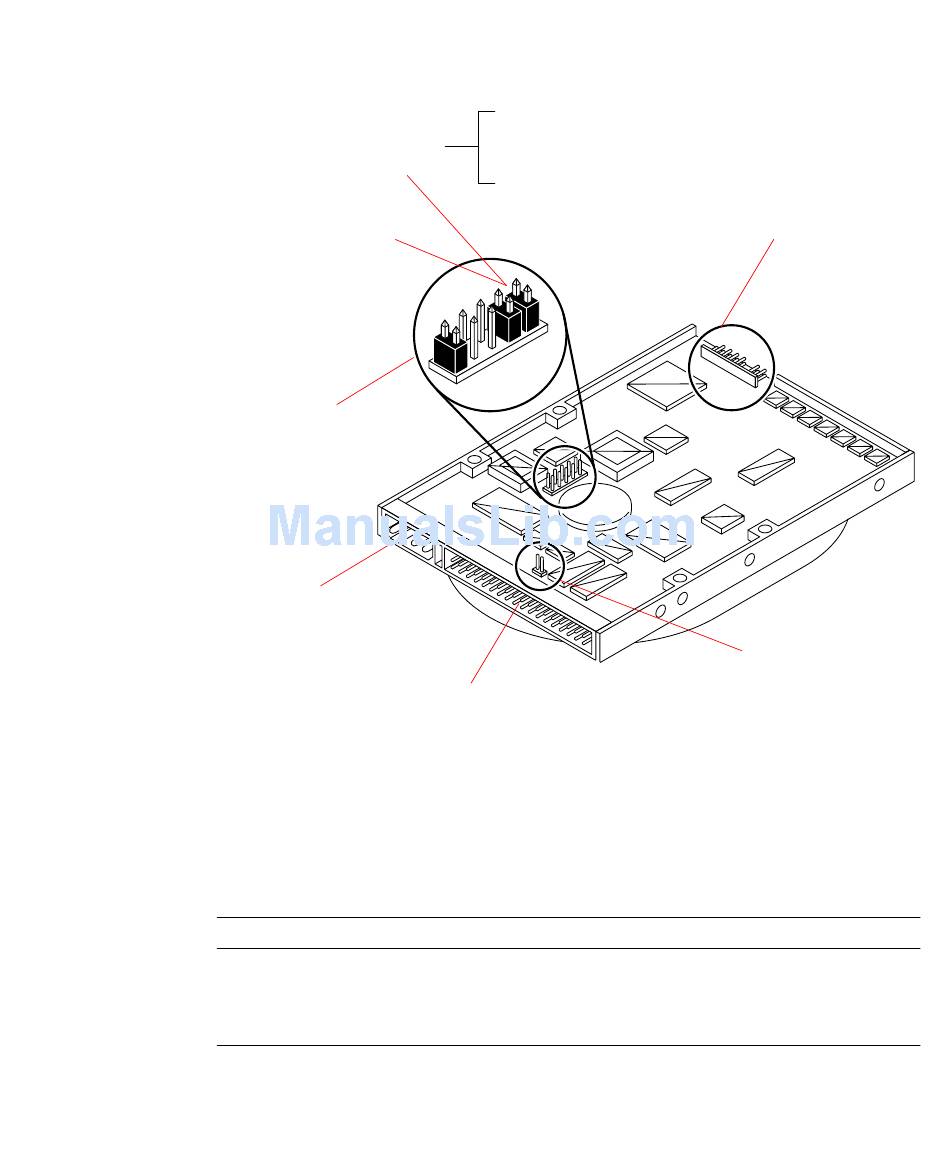

Jumper Settings for Conner 535-Mbyte Drive
FIGURE 9-5
describes the 535-megabyte Conner drive's factory jumper settings.
TABLE 9-1
535-Mbyte Conner Drive Configuration Jumpers
TABLE 9-1
Pin Pair Description
E1 SCSI ID address
E2 SCSI ID address
E3 SCSI ID address
A0 = E1 0, or 1 when jumpered
A1 = E2 2 when jumpered
A2 = E3 4 when jumpered
E1
E2
E3
E4
E5
Serial port jumpers
(not jumpered)
SCSI power terminator
(E6 not jumpered)
Factory Set
Yes
Yes
No
