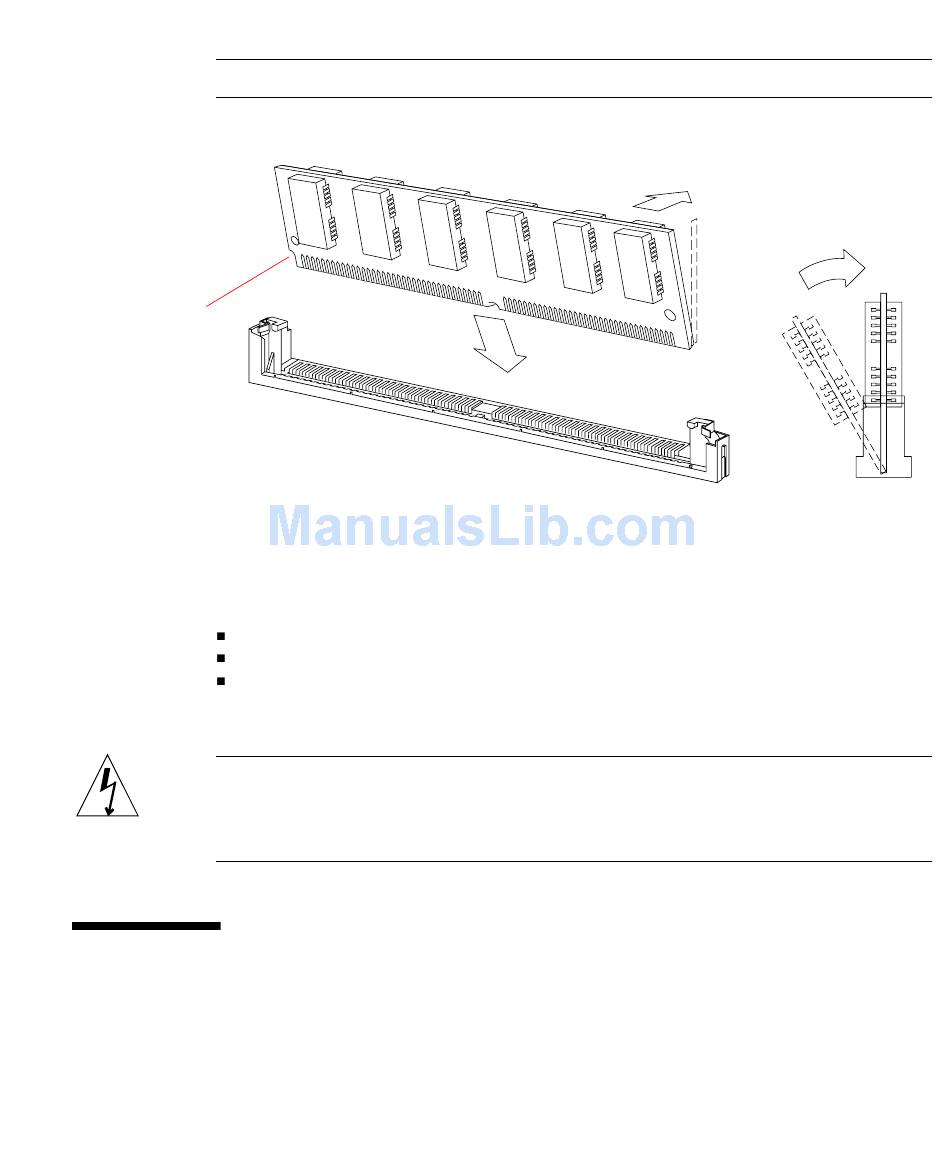

Note – Each DSIMM is keyed so it can only be installed in one way.
Notched corner
ensures proper
insertion.
FIGURE 11-11
5. Refer to Chapter 7, "internal Access," to perform the following procedures:
Detaching the wrist strap
Closing the system unit
Reconnecting system components
6. Refer to Chapter 6, "Power Off and On," to turn the power on.
Caution – When you are finished installing parts inside the system unit, be sure to
close the system unit before turning on the power. It is not safe to operate the system
unit while it is open. See Section 7.4 "Closing the System Unit" on page 7-4 for
instructions.
11.4
Main Logic Board
This section explains how to remove and replace the main logic board (MLB).
1.
Installing a DSIMM
Chapter 11
2.
Main Logic Board and Component Replacement
2.
11-17
