Sun Microsystems SPARC classic Service Manual page 108

Pull tab
Pull tab
Hard drive
power cable
Hard drive
data cable
Hard disk drive
Drive bracket
screw holes
Drive mounting
bracket

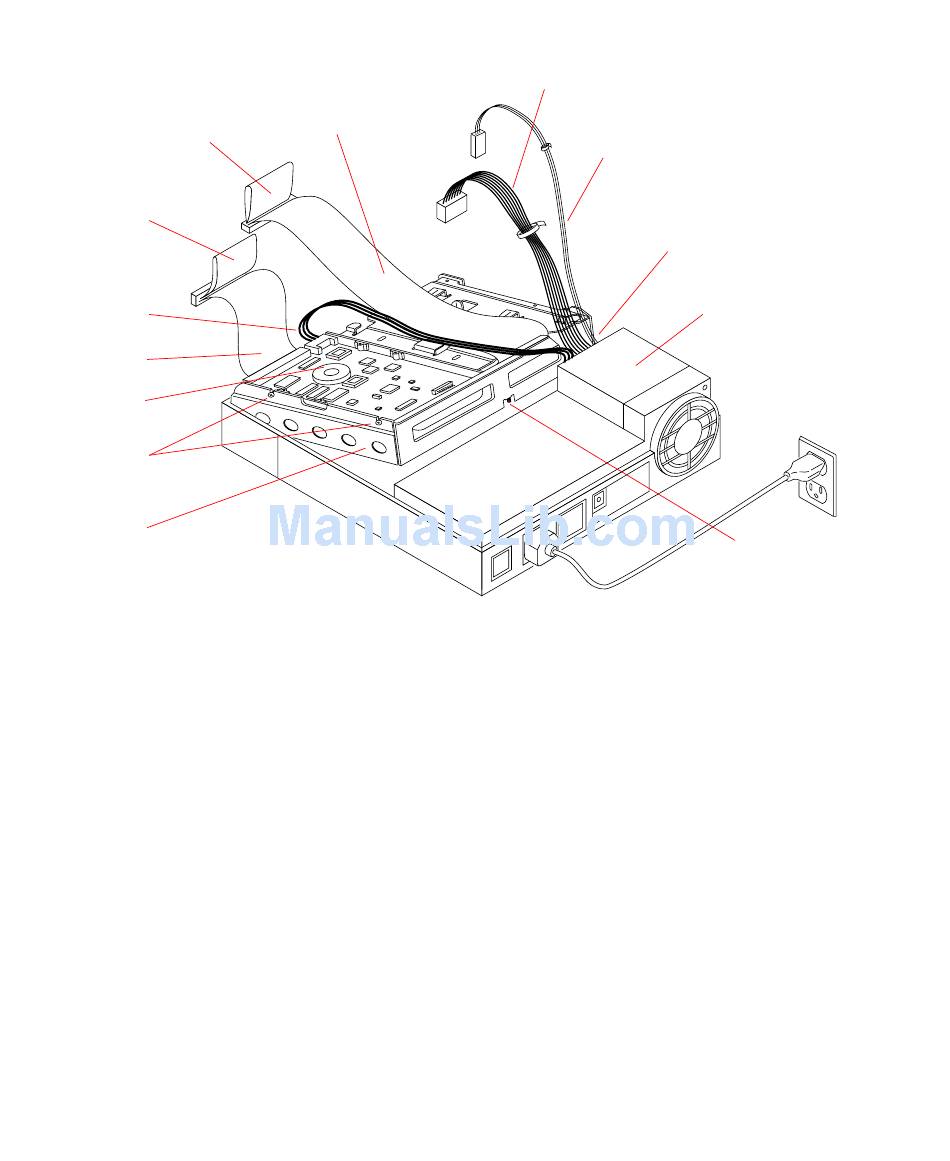

FIGURE 9-13
5. Remove the disk drive mounting bracket.
a. Carefully bend the power cables where they exit the power supply so that the
mounting bracket can be removed without snagging or cutting the cables.
b. Tilt the bracket up and away from the power supply (see
c. Lift the bracket out of the system unit and place it on an antistatic mat.
9-18 SPARCclassic/SPARCclassic X/SPARCstation LX Service Manual • November 1993
Diskette drive
data cable
UNIT TOP
Removing the Disk Drive Mounting Bracket
Main logic
power cable
Keyboard soft
power-on cable
Diskette drive
power cable
(hidden from view)
FIGURE 9-13
Power supply
Captive
screw
).
