Figure 1-1 Front Panel Of The Sparcclassic And Sparcstation Lx System Units - Sun Microsystems SPARC classic Service Manual

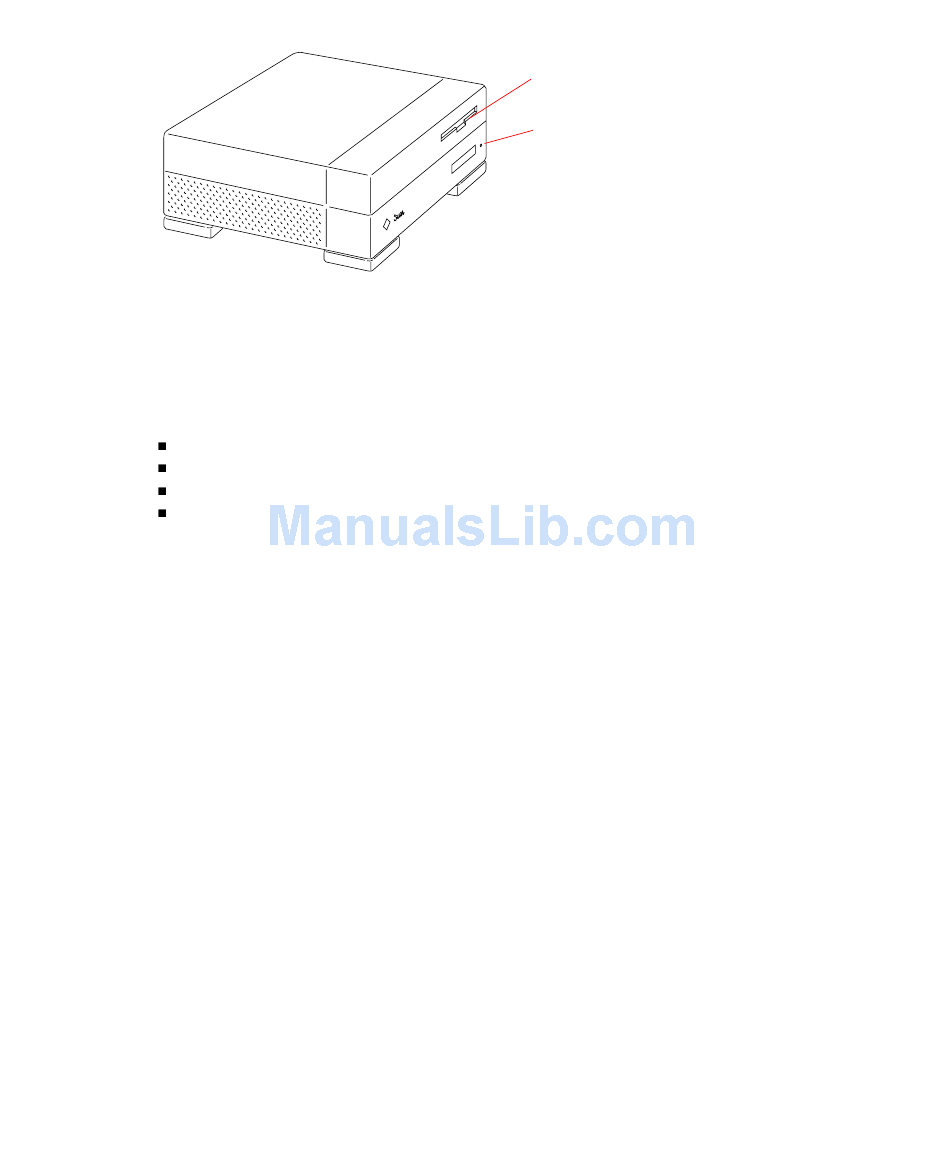

FIGURE 1-1
The SPARCclassic X terminal chassis looks identical to the chassis shown above,
except that the components on the list below are either not available or are inactive,
and are consequently covered by connector covers:
Diskette drive slot
SCSI port
Audio port
Parallel port
Internally, the SPARCclassic X terminal differs from the basic SPARCclassic system
by the absence of the disk drive and diskette drive. The annotations to
and
FIGURE 1-3
SPARCstation LX system, and the SPARCclassic X terminal.
1-2 SPARCclassic/SPARCclassic X/SPARCstation LX Service Manual • November 1993
Front Panel of the SPARCclassic and SPARCstation LX System Units
indicate the differences among the SPARCclassic system, the
Diskette drive (optional)
System power LED
FIGURE 1-2
