ULTRA JET

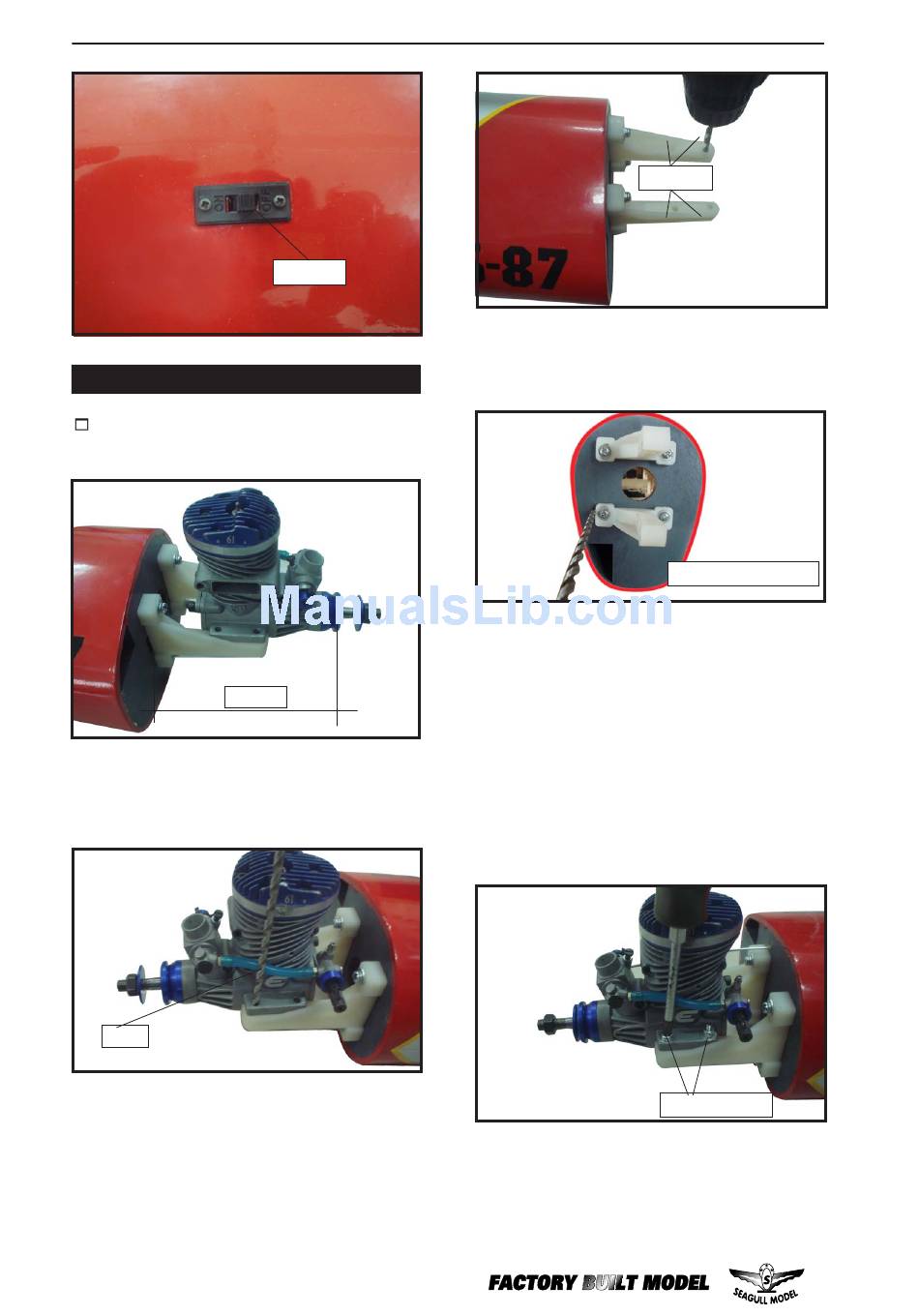

MOUNTING THE ENGINE.

1) Position the engine with the drive washer
(130mm) forward of the firewall as shown.
130mm.
2) Use a pin drill and 4mm drill bit to drill a
small indentation in the mount for the engine
mounting screw.
4mm.
3) Use a drill to drill the four holes in the engine
mount rails.
8
Switch.
Instruction Manual.
4) On the fire wall has drill a hole in the firewall
for the throttle pushrod the location for the
throttle pusshrod tube (pre-drill).
5) Slide the pushrod tube in the firewall and
guide it through the fuel tank mount. Use
medium C/A to glue the tube to the firewall and
the fuel tank mount.
6) Connect the Z-bend in the 450mm throttle
pushrod to the outer hole of the carburetor arm.
7) Slide the throttle pushrod wire into the tube.
Position the engine between the mounts. Use
four M3x30mm machine screws to secure the
engine to the mount as shown.
4.5mm.
Pushrod tube hole.
M3x30mm
