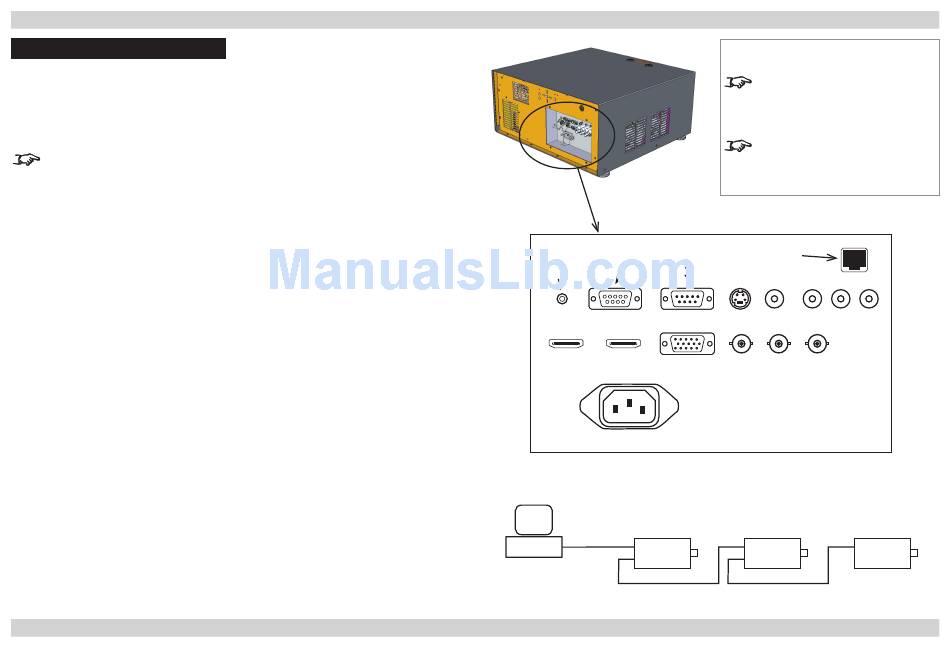

Control Connections

Wired Remote Control

•
If infrared signals from the remote control cannot reach the projector due to excessive
distance or obstructions such as walls or cabinet doors, you can connect an external
IR repeater to the Remote control input, and position its IR sensor within range of the
operator.
Note that plugging in the remote control cable will disable the infra-red.

LAN

•
All of the projector's features can be controlled via a LAN connection, using the text
strings described in the Remote Communications Guide.
•
The default LAN IP address is 192.168.0.100. For information about how to change this,
see Setting the LAN IP configuration, later in this guide.
Each projector can be given a unique System ID, and this can be be used to control
them individually or simultaneously. For more information about this, see the Remote
Communications Guide.

RS232

•
All of the projector's features can be controlled via a serial connection, using the control
strings described in the Remote Communications Guide.
•
Projectors can be connected in a daisy chain, connecting the RS232 OUT of one
projector to the RS232 IN of the next. Each projector can be given a unique System
ID, and this can be be used to control them individually or simultaneously. For more
information about this, see the Remote Communications Guide.
Rev D July 2014
CONTROL CONNECTIONS
Wired
Remote
RS232
For a complete listing of pin
configurations for all signal and
control connectors, see Wiring
Details later in this Guide.
Only one remote connection should
be used at any one time.
RS232 RS232
LAN
IN OUT
IN IN
OUT OUT
Connection Guide
Notes
IN
OUT
