The Key Commands

•
Key commands are used to simulate remote control key presses, and consist of ascii text strings starting with a prefix code, then the
letters 'ky', and ending with a carriage return character:
<prefix code> ky <keyname> [CR]

Examples

<prefix code> ky menu [CR] simulates the MENU key being pressed.
<prefix code> ky enter [CR] simulates the ENTER key being pressed.

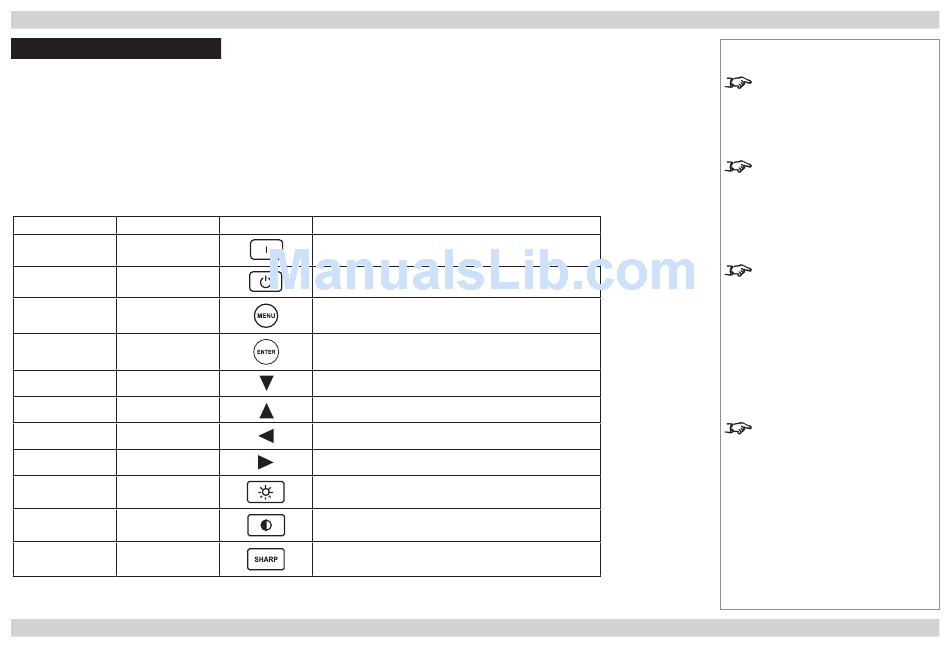

IR Hex Code <keyname>
01 pow.on
09 pow.off
15 menu
17 enter
18 cur.down
1A cur.up
1D cur.left
1F cur.righ
80 bright
81 contrast
82 sharp
Rev D July 2014
THE KEY COMMANDS
Description
Turn power on.
Turn power off.
Bring up or cancel menu display.
Keypad enter.
Keypad down arrow.
Keypad up arrow.
Keypad left arrow.
Keypad right arrow.
Bring up or cancel brightness slider.
Bring up or cancel contrast slider.
Bring up or cancel sharpness slider.
continued on next page...
Remote Communications Guide
Notes
Details of how to connect to
the projector, using the LAN or
RS232 input, can be found in the
Connections Guide.
For information about the prefix
code, see earlier in this guide.
The prefix code should NOT be
used unless a number of projectors
are connected in a daisy chain.
Note: spaces in the commands are
necessary.
eg ky menu
NOT kymenu
in hex:
6B 79 20 6D 65 6E 75 0D
k y m e n u
CR
The System ID ** will work ONLY
on projectors that are running.
Therefore:
use the pow.on command with
no prefix code to turn on ALL the
projectors.
then use the command with
pow.off
the appropriate prefix code to turn
off all or individual projectors.
