Digital Projection
M-Vision LED+IR series
Wiring Details
Signal inputs
HDMI
19 way type A connector
1
TMDS Data 2+
2
TMDS Data 2 Shield
3
TMDS Data 2-
4
TMDS Data 1+
5
TMDS Data 1 Shield
6
TMDS Data 1-
7
TMDS Data 0+
8
TMDS Data 0 Shield
9
TMDS Data 0-
10
TMDS Clock+
11
TMDS Clock Shield
12
TMDS Clock-
13
CEC
14
not connected
15
SCL (DDC Clock)
16
SCA (DDC Data)
17
DDC/CEC Ground
18
+5 V Power
19
Hot Plug Detect
Rev D July 2014
WIRING DETAILS

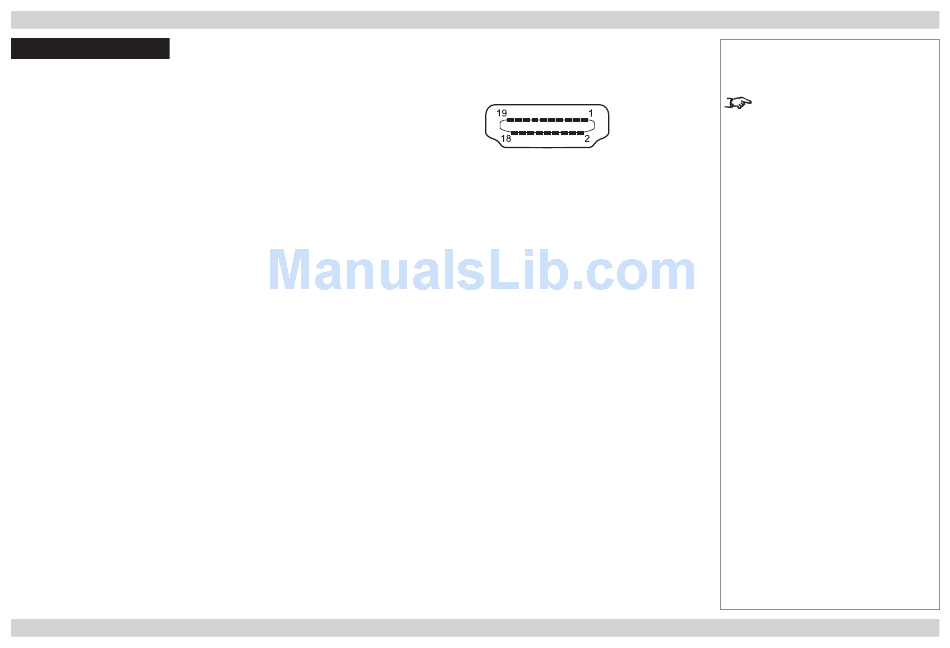

pin view of panel connector
Connection Guide
Notes
For full details of all input settings,
see the Advanced menu in the
Operating Guide.
Page Conn_6
