RGB

15 way D-type connector
1 R
2 G
3 B
4 unused
5 Digital Ground (H Sync)
6 R Ground
7 B Ground
8 G Ground
9 +5v
10 Digital Ground (V Sync/DDC)
11 unused
12 SDA
13 H Sync
14 V Sync
15 SCL

S-Video

4 pin mini-DIN
1 Y Ground
2 C Ground
3 Luminance (Y)
4 Chrominance (C)

Composite Video

RCA Phono
Rev D July 2014

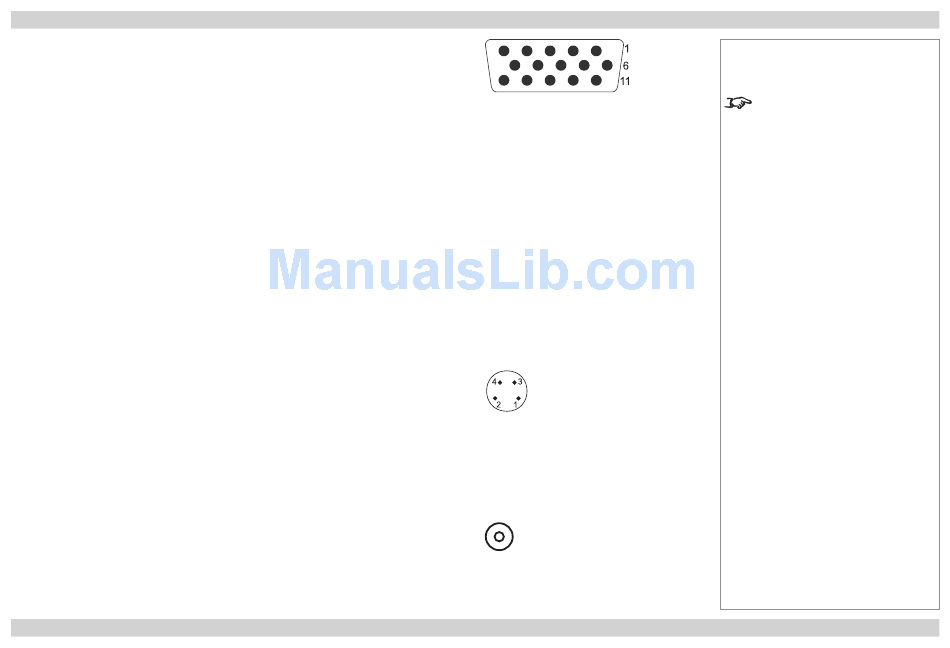

WIRING DETAILS
pin view of female connector
pin view of female connector
Connection Guide
Notes
For full details of all input settings,
see the Advanced menu in the
Operating Guide.
