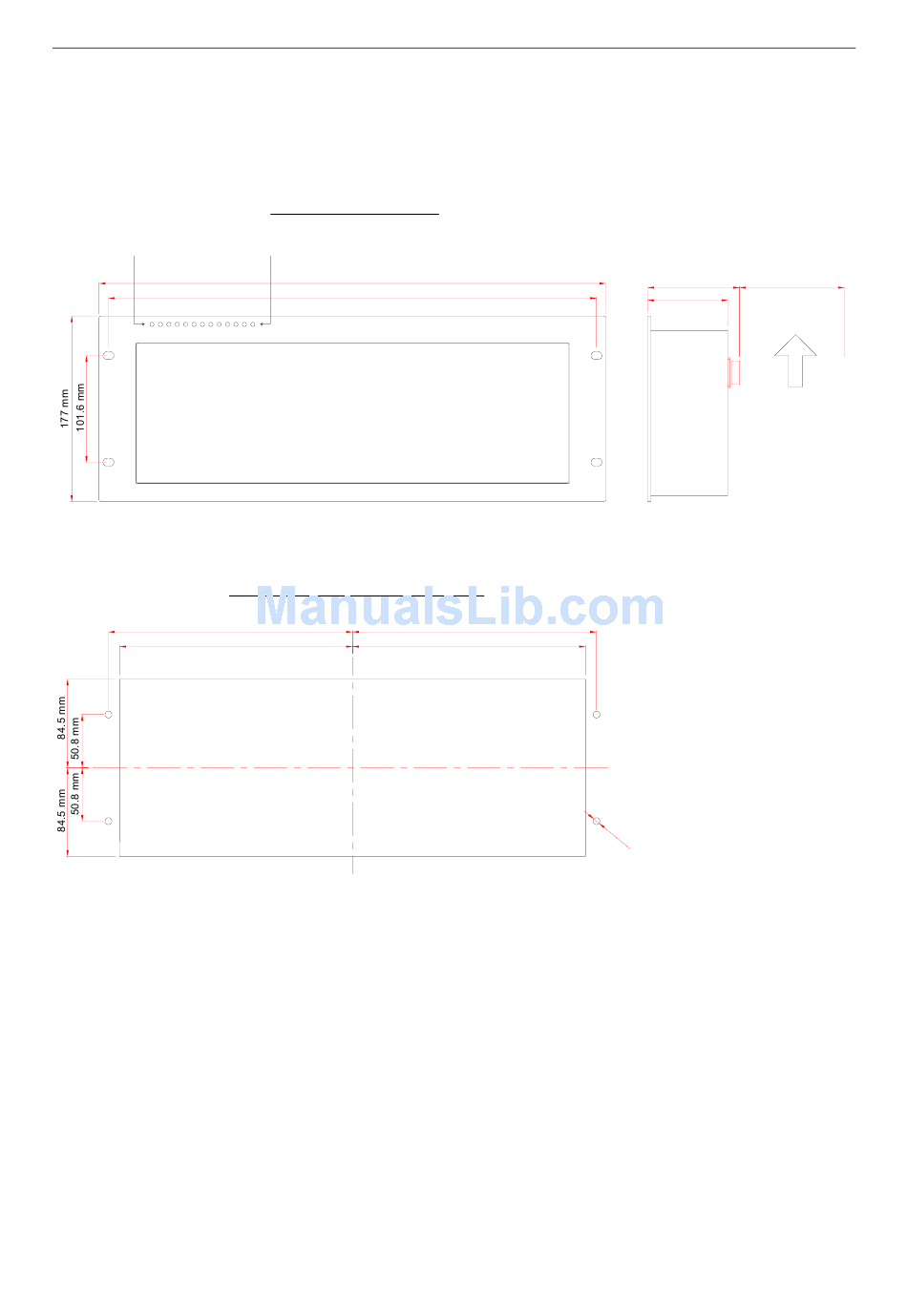

Mechanical Dimensions
Figure 12
Cutout Details
ENSURE CLEARANCE FOR
SPEAKER GRILL
232.5 mm
SMC02G/SMC02F/Variants - Product Manual
BASIC CASE DIMENSIONS
483 mm
465 mm
RECOMMENDED CUTOUT DIMENSIONS
222 mm
Issue: 02 complete, approved
232.5 mm
222 mm
Page 53 of 60
100 mm
87.5 mm
76.5 mm
ALLOW AT LEAST
100 MM FOR
MATING
CONNECTOR AND
CABLE
φ
6.5 mm
