Paging Microphone Connection to ACU Inputs 3 to 8

The following diagram shows the connection of the SMC02 to an ACU's Mic/Line inputs 3 to 8 as a Paging
Microphone.
Note the ACU can be either the wall mount Intellevac ACU or the rack mount VAR8-ACU.
When connected to an ACU the listen-in function is activated in all VAR12 and VAR20 Routers in the
Intellevac network, in a similar fashion to when directly connected to a VAR Router. An external audio mixer
is however required to mix the AUX Outputs of all VAR12 and VAR20 Routers in the network. This mixed
audio can then be fed to the SMC02's listen-in speaker.

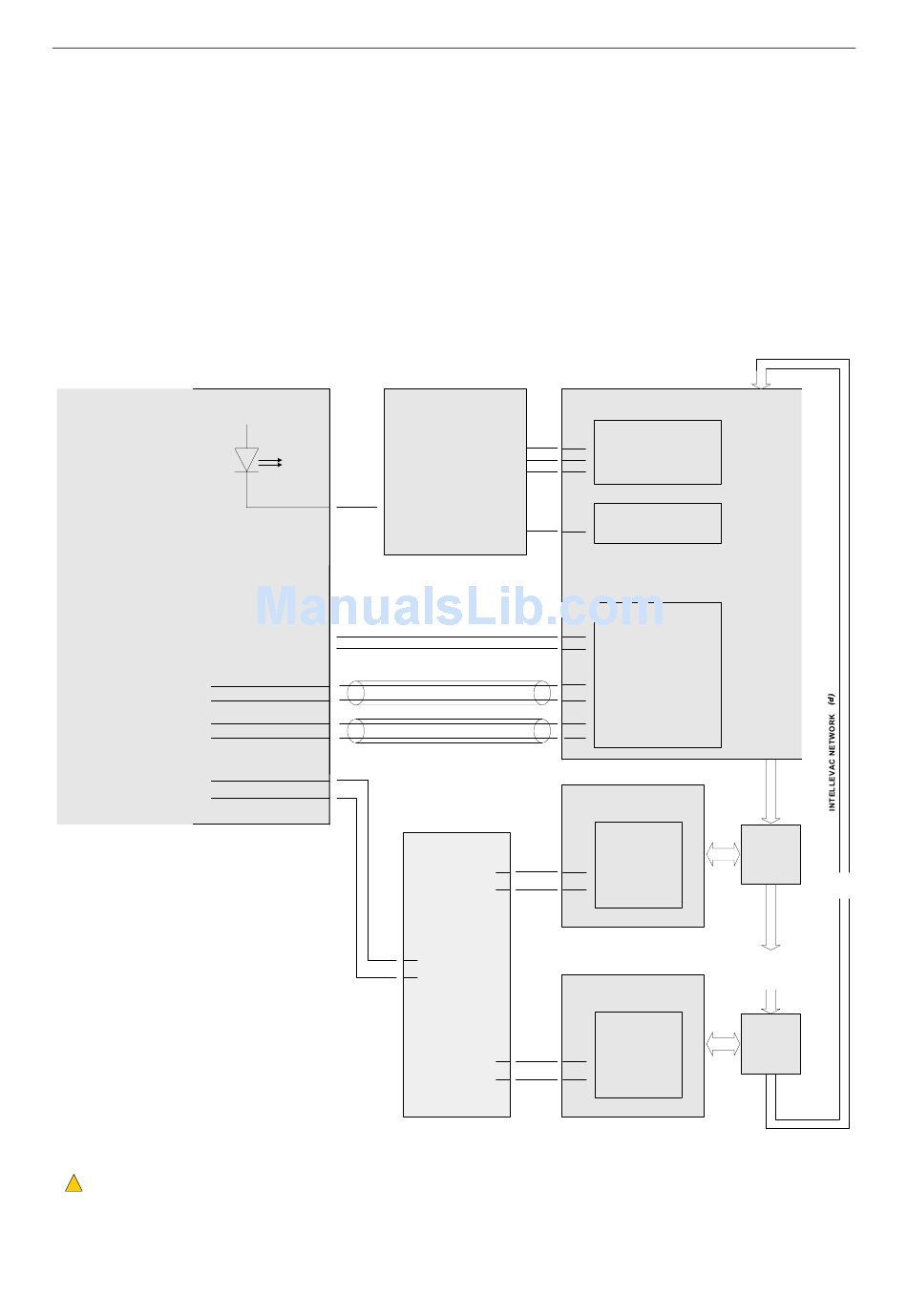

Figure 9 SMC02 Connection to ACU Inputs 3 to 8
SMC02
FAULT LED
AUDIO
DATA
LISTEN-IN
(a)
BMB01 digital output to be programmed for
'Fault Indication' at the ACU.
(b)
The BMB01 is normally connected to the
ACU's RS485 port as shown in this diagram.
Note that the ACU also supports BMB01 units
on its Mic/Line inputs, in which case the DATA
and power supply connections are to the MIC
Data and SUPPLY terminals of the selected
Mic/Line inputs.
Refer to the BMB01 installation guide and the
specific ACU installation guide for further
details.
(c)
The ACU can be either the Intellevac ACU or
the VAR8-ACU.
(d)
The Intellevac Network supports Intellevac
DAU and VAR8 units as well as VAR12 and
VAR20 Routers, but the DAU and VAR8 do
not support the listen-in function.
VAR4 is not supported by the Intellevac
Network
Refer to ACU and VAR-NIA specific user
documentation for network connection details.
For EMC compliance:
! !
1. Cable tails to be < 3 cm.
2. Screen of all cables to be connected to earthing
terminals as specified in the ACU installation guide.
