SMC02G/SMC02F/Variants - Product Manual
3.

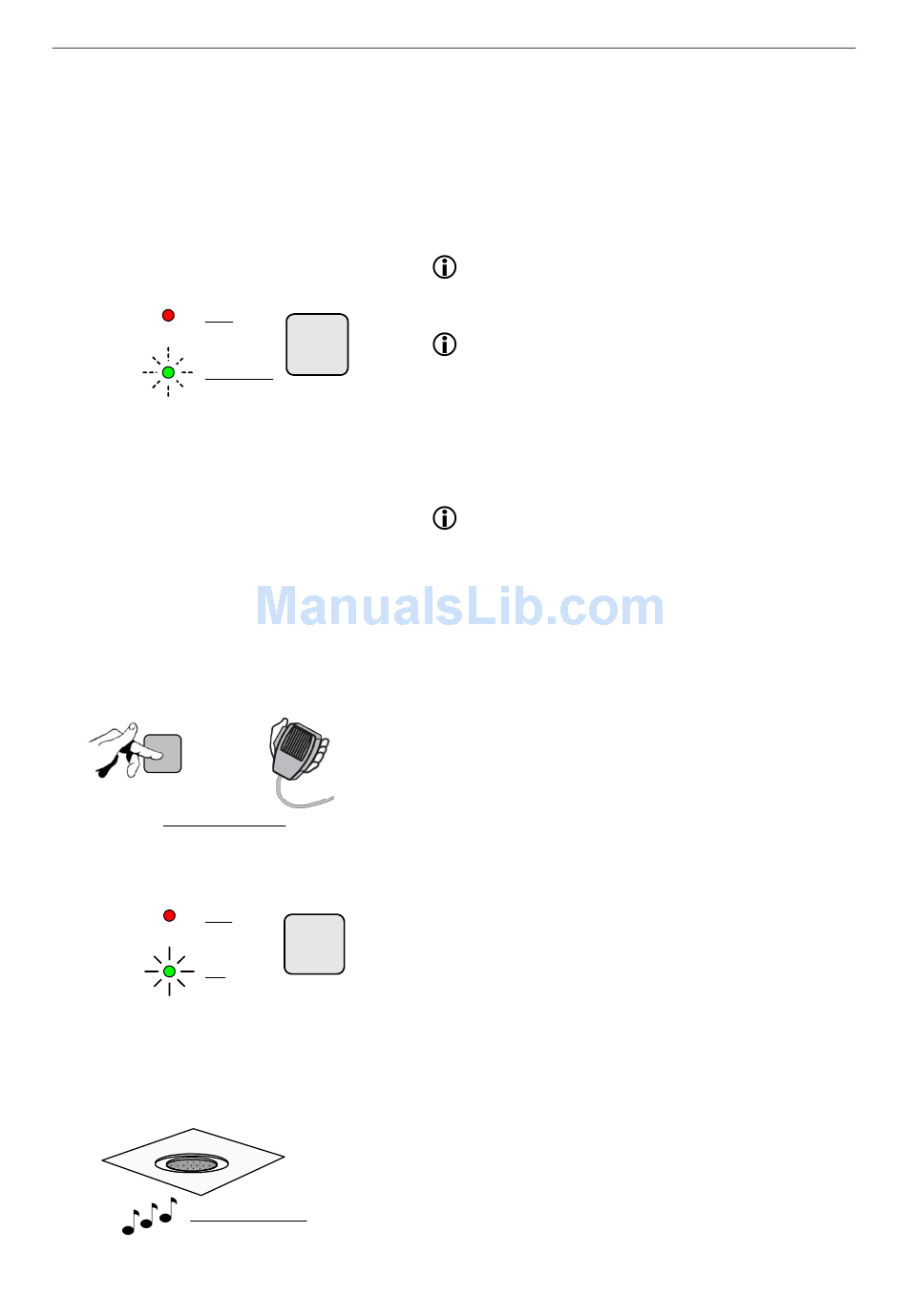

Select the required zone(s) by pressing the appropriate
Zone Select buttons (zones may be added or removed as
required by pressing the buttons in turn). To deselect a
selected zone press the button again.
The appropriate green SELECT LED(s) will flash to show
each zone has been successfully selected.
ZONE
SELECT
BUTTON
SMC02F
4.
At a suitable time initiate the announcement by pressing
and holding the PTT button.
The SELECT LED(s) will stop flashing and will be
steadily lit indicating that the zone (or one or more of the
group of zones) controlled by that button has been
successfully selected.
ZONE
SELECT
BUTTON
5.
If programmed at the Router, the pre-announcement
chime will sound.
Issue: 02 complete, approved
Page 10 of 60
Note that zone selection is not required when a
standard SMC02 microphone is in All Call Only
failsafe override mode.
A Zone Select button can be programmed as
'All Call' at the Router. When an 'All Call' button is
pressed, all outputs, which have been configured
as being affected by any zone selection buttons on
the microphone, are selected for broadcast from
the microphone, i.e. the button press has the same
effect as if all zone selection buttons on the
microphone have been pressed.
On VAR4/12/20 the PTT button can also be
configured to act as an 'All Call' button if this is
pressed without any Zone Select buttons being
pressed.
