ASL INTERCOM SMC02G Product Manual page 22

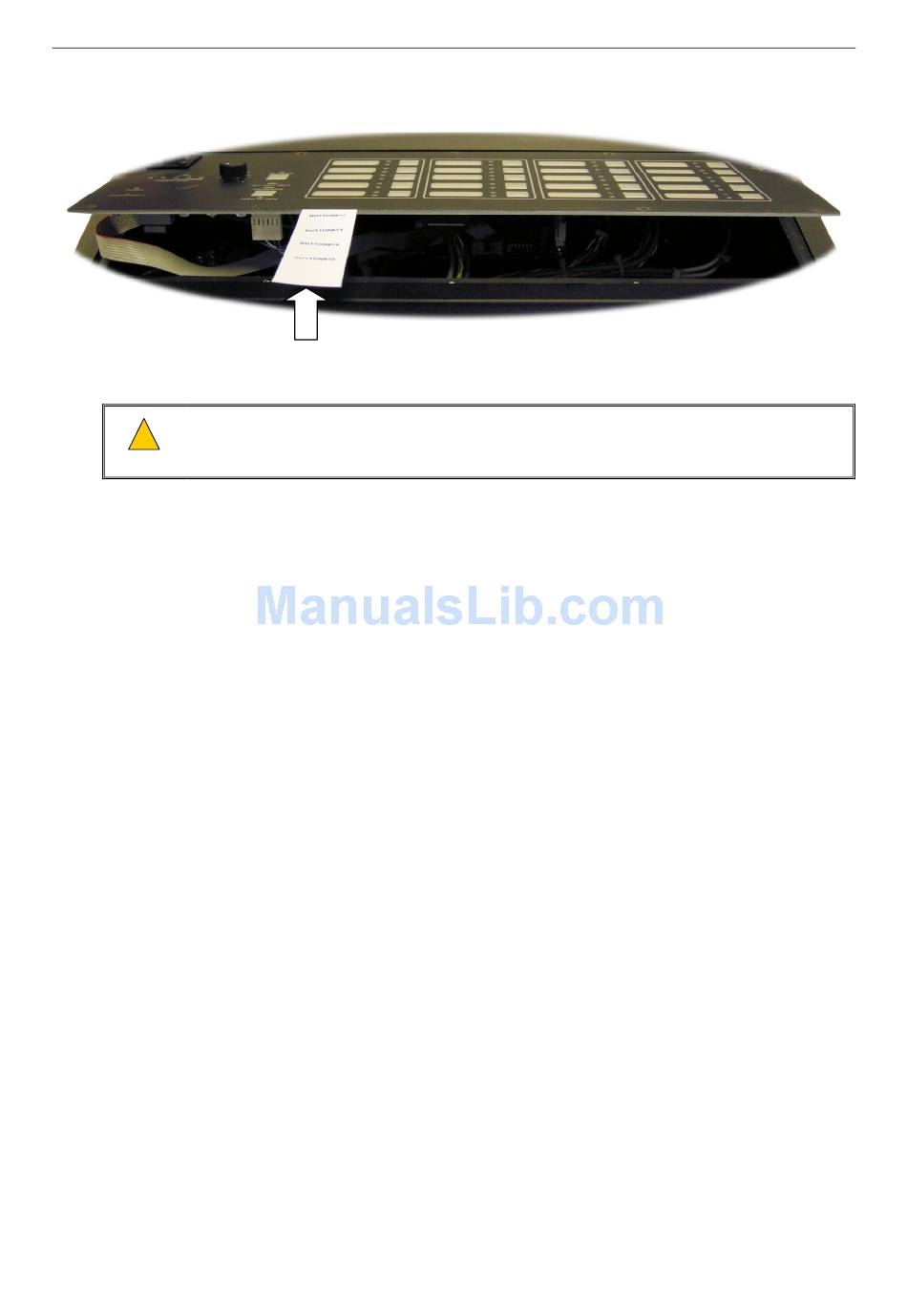

Figure 3 SMC02 – Inserting the Zone Identification Labels
•
!
!
•
d. Re-fit the front panel back in place using the 11 off screws removed in step 3.a.
4.
Ensure that the power supply from the central equipment rack is turned off.
5.
Plug the lead assembly (ASL SMCLEAD-5M or SMCLEAD-20M) into the circular connector at the
bottom of the SMC02 back box.
6.
Fix the SMC02 into its position.
a. If mounting the SMC02 on a desk, fit the SMC02 into the recess, and then fix it using the M6
screws and washers provided.
b. If mounting the SMC02 in a 19" rack, fix the unit into its position in the rack using the M6 screws
and washers provided.
Refer to Figure 12
7.
If installing a SMC02F or SMC02FS, fix the fist microphone clip to a suitable adjacent point.
8.
Connect the flying lead assembly to a marshalling box (which is cabled to the central equipment rack
or wall mount Intellevac ACU).
See connection details in Section
9.
Power the unit on from the central equipment rack.
10.
Commission the microphone as described in Section
SMC02G/SMC02F/Variants - Product Manual
LABEL
BUTTONS 1-5
Do not use any sharp tools, as they can damage the front panel.
Do not peel off the plastic cover.
for mechanical dimensions and clearance required.
"4 Connections" (page 23).
Issue: 02 complete, approved
"5 Commissioning the
Page 22 of 60
SMC02" (page 31).
