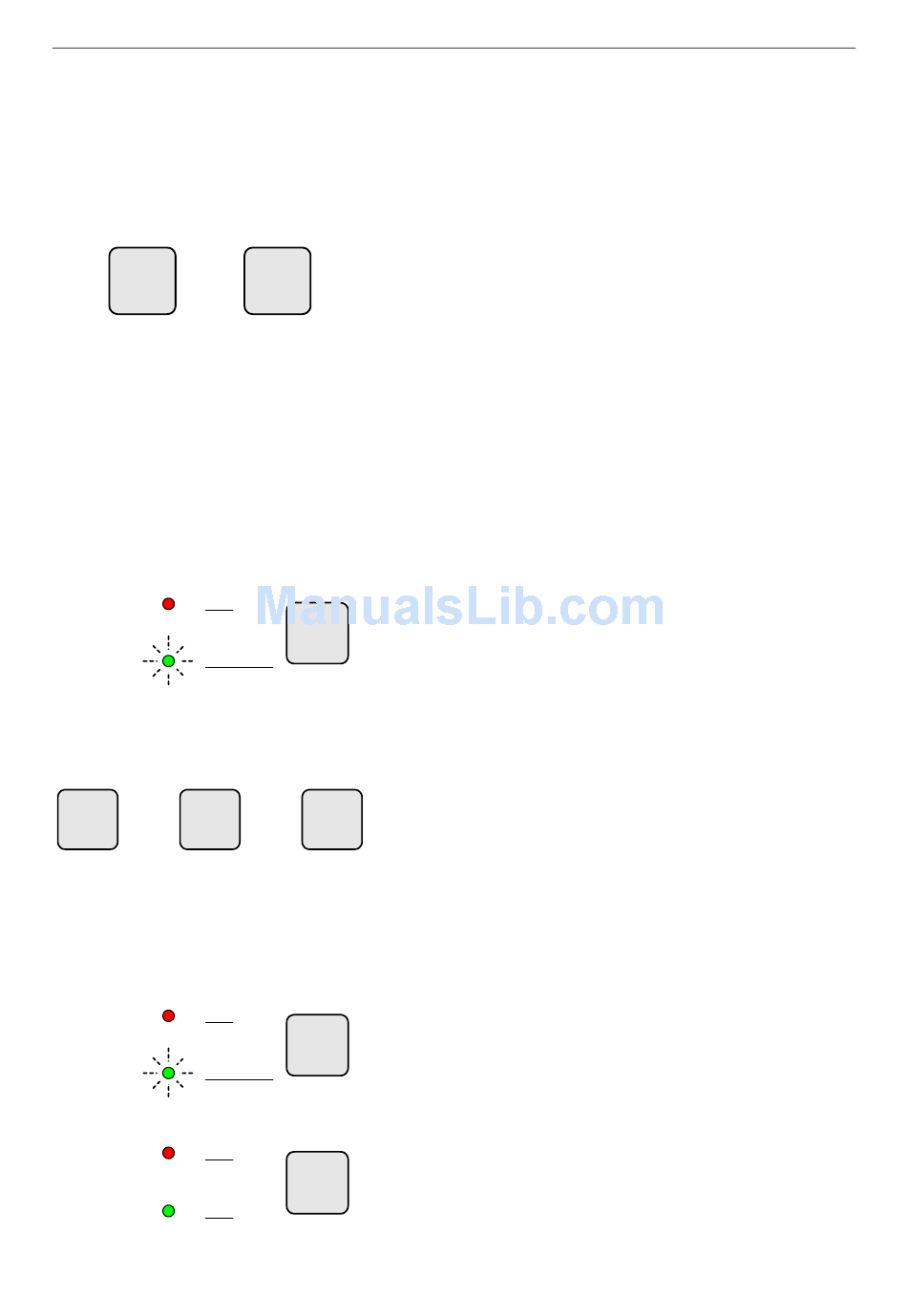

Stopping One DVA Message in All Zones
A DVA message can either be ended with a reset button,
or with the trigger button.
To terminate a DVA message in all zones in which it is
playing:
•
Reset button not programmed for this Play DVA
button:
Re-press the Play DVA button previously selected
without selecting any Zone Select buttons.
•
Reset button programmed for this Play DVA button:
Press the reset button without selecting any Zone
Select buttons.
Stopping DVA Message(s) in Selected Zones
A DVA message can either be ended with a reset button,
with the trigger button, or with a Cancel All DVA button (if
configured).
Press the appropriate Zone Select buttons. The green
'Select' indicators will flash to indicate that the button has
been pressed.
To terminate a DVA message playing in the selected
zones:
•
Reset button not programmed for this Play DVA
button:
Re-press the Play DVA button previously selected.
•
Reset button programmed for this Play DVA button:
Press the reset button.
•
Cancel All DVAs button programmed:
Pressing the button will terminate all DVAs playing in
the selected zones.
Note that contact DVA messages, i.e., activated by
Fire Panel, are not affected by the activation of this
button.
Terminating a DVA triggered by a Play DVA button will
cause its green SELECT LED to flash while the routed
DVA is completing its cycle.
The green SELECT LED of the Play DVA button will turn
off when all outputs of the route are finally disconnected,
indicating that the Play DVA button is ready for the next
routing.
