Page 1: User Manual

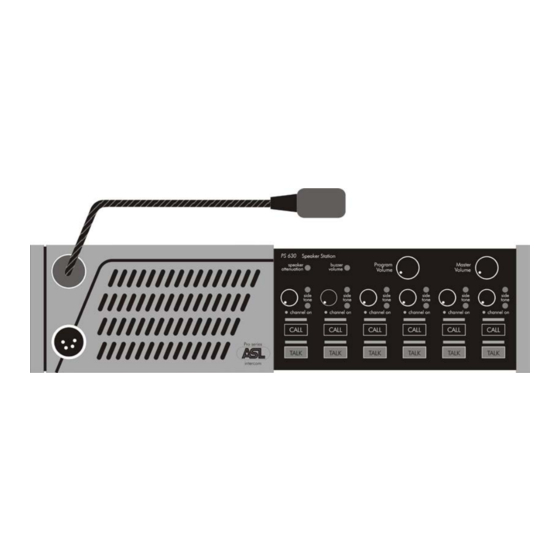

PS 630 SIX CHANNEL REMOTE SPEAKER STATION USER MANUAL October 2013 This product is designed and manufactured by: ASL Intercom BV Zonnebaan 42 3542 EG Utrecht The Netherlands Phone: +31 (0)30 2411901 Fax: +31 (0)30 2667373 E-mail: info@asl-inter.com Web: www.asl-inter.com... -
Page 2: Table Of Contents
TECHNICAL SPECIFICATIONS PS 630 ..........7 PARTY LINE, TECHNICAL CONCEPT ..........8 CABLING ....................8 PS 630 BLOCK DIAGRAM ..............9 10.0 EARTHING CONCEPT................ 10 11.0 SYSTEM CONFIGURATION ............... 10 PAGE 2 User Manual PS 630 / October 2013 © ASL Intercom... -
Page 3: Introduction
1 shield only. Connect the intercom cables to in the interconnect cables. the LINE connector sockets at the rear panel. A kit is included for mounting the PS 630 in a 19" rack, taking 2U of rack space. 3.0 FRONT PANEL CONTROLS & CONNECTOR PAGE 3 User Manual PS 630 / October 2013 ©... - Page 4 #6 and #7 a few times. Adjusting side tones does not affect the level of your voice as it is heard by other stations. PAGE 4 User Manual PS 630 / October 2013 © ASL Intercom...
- Page 5 The buzzer is activated if the CALL button of the can or to both cans or to none of the cans. PS 630 (or a CALL button of any other station on the channels to which the PS 630 is connected) is GOOSENECK microphone pushed for longer than 2 seconds.
-
Page 6: Rear Panel Connectors
REAR PANEL CONNECTORS LINE connectors (A thru F) In case of binaural use of the PS 630, internal These twelve XLR-3 connectors are for jumpers (see #18) determine the routing of the connecting the PS 630 to the intercom party lines. -
Page 7: Technical Specifications Ps 630
With these two jumpers one determines whether the PGM (program audio) listen level is also controlled by the Master Volume knob (see #4) and – in case of binaural use of the PS 630 - the routing of the PGM signal to the headset. -
Page 8: Party Line, Technical Concept
0 dBu is defined as 775 mV into open circuit ASL reserves the right to alter specifications without prior notice PARTY LINE, TECHNICAL CONCEPT User stations in an ASL intercom system are This principle has three advantages: • connected via one or several 'party lines'. A party line the use of a single audio line allows several offers two way (‘full duplex’) communication and... -
Page 9: Ps 630 Block Diagram
Master stations or power supplies should be connected to a mains outlet with a clean earth. Other audio equipment may be connected to this mains outlet, but avoid using an outlet which also powers dimmer controlled lighting systems. PS 630 BLOCK DIAGRAM... -
Page 10: Earthing Concept
10.0 EARTHING CONCEPT 11.0 SYSTEM CONFIGURATION...
