3.2

Recommended Installation Procedure

Please read and observe the
!
!
1.
Produce the zone identification label as follows.
a. Download the template file from the "Data Downloads" page of Application Solutions website:
www.asl-electronics.co.uk/downloads.
b. Complete the zone text in the appropriate button positions.
Note that a microphone button can also be programmed to route DVAs, in which case a text
describing the function would be more appropriate.
c. Print the label out.
d. Cut the strips for each column of buttons to size.
2.
Prepare the SMC02 mounting location.
a. If mounting the SMC02 on a desk, prepare the recess by cutting the desk according to the
dimensions detailed in
b. If mounting the SMC02 in a 19" rack, ensure that a U4 aperture is available for installation of the
unit.
3.
Insert the zone identification label as follows.
a. Remove the 11 off screws on the SMC02 front panel.
b. Lift the front panel as shown in the following figure

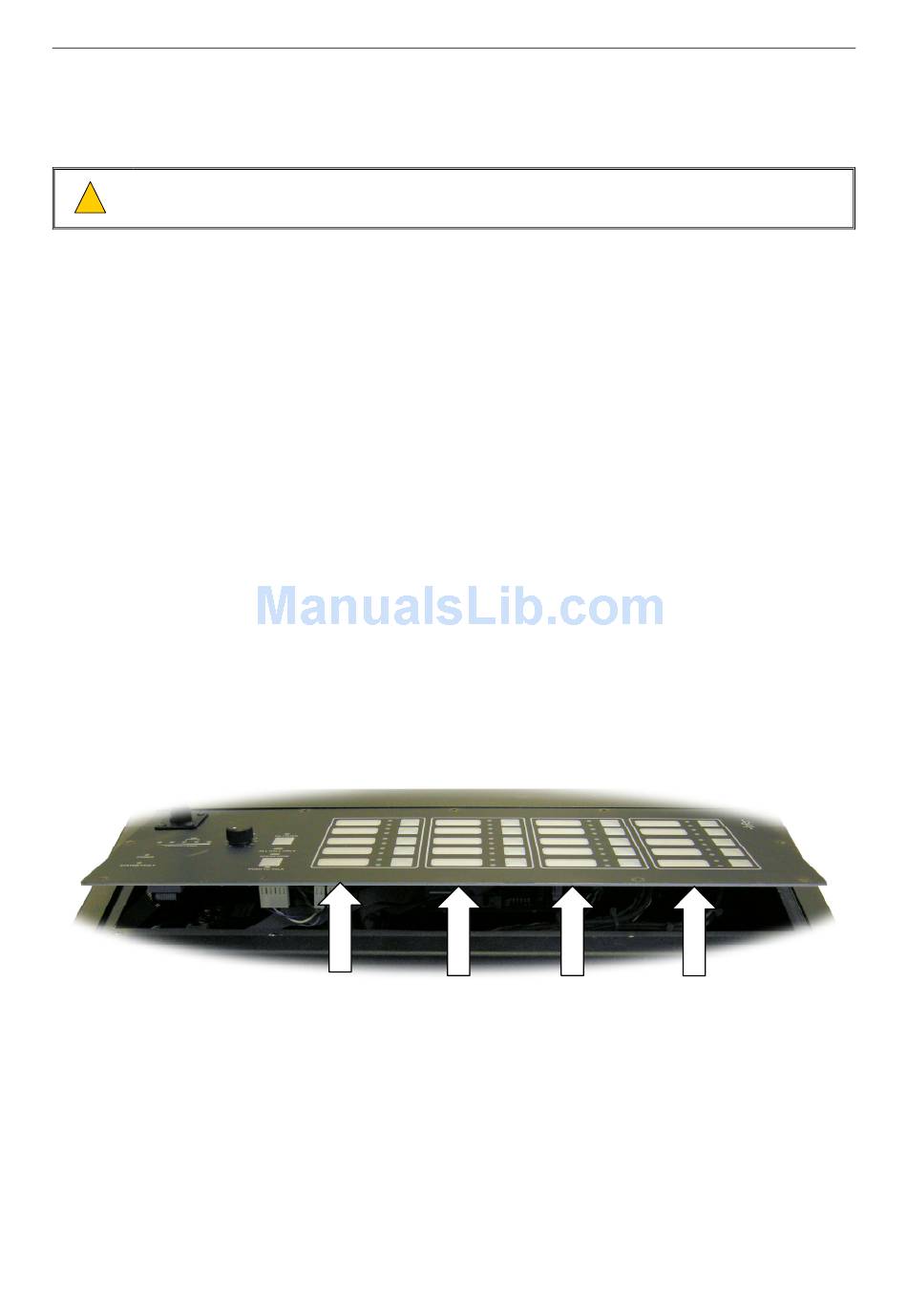

Figure 2 SMC02 – Label Slot Positions
c. Insert the label into the slot as shown in the following figure
For each label position a slot is provided between the front panel and its plastic cover.
If required use a small screwdriver to carefully lift the plastic cover at the required slot position.
SMC02G/SMC02F/Variants - Product Manual
"Safety and Precautions" section on page
Figure 12.
LABEL SLOT LABEL SLOT
BUTTONS 1-5 BUTTONS 6-10
Issue: 02 complete, approved
Page 21 of 60
55
(Figure 2).
LABEL SLOT LABEL SLOT
BUTTONS 11-15 BUTTONS 16-20
(Figure 3).
of this manual.
