1.3 Module Assembly

The Slim IPDP are the basic modules with color camera Slim
IPDP-01/02C or without camera Slim IPDP-01/02. Antivandal panel is very
strong metal cover for increased endurance against vandalism.
Slim IPDP-01

1.4 Module Features

1.4.1 Slim IPDP Basic Module

The Slim IPDP basic module is assembling from modules IP, PoE
mudul, camera module and motherboard. Positioning setting elements and
connectors are on picture 1.
For Slim IPDP is necessary used PoE power from switch or the AC
voltage of min. 11Vst - max. 15Vst or DC voltage of min. 12Vss to max. 18Vss
must be energized to "12V" terminal. This source loading depends on number
of modules, since it simultaneously serves feeding of lighting through visiting
cards – at max. number of connected modules the demand will not exceed
300mA. This source can be also used for feeding of lock(s), and then it is
necessary to consider the electrical lock demand. In practice the alternating
feeder 12V/1A mostly meets these demands.
IPDP receives power through the PoE (Power over Ethernet - IEEE802.3af
Altern. A+B) technology. No additional cabling is necessary. If your Ethernet is
not equipped with the PoE technology it is possible to use a PoE adaptor. If
you use electric lock for opening door, so you must for supply of the lock use
power supply (only in circuit with relay - contact), or use low power lock and for
supply of the lock use connector on visiting - card (back lighting buttons) and at
supply by PoE is here 12V/350mA to disposal. Picture 4.

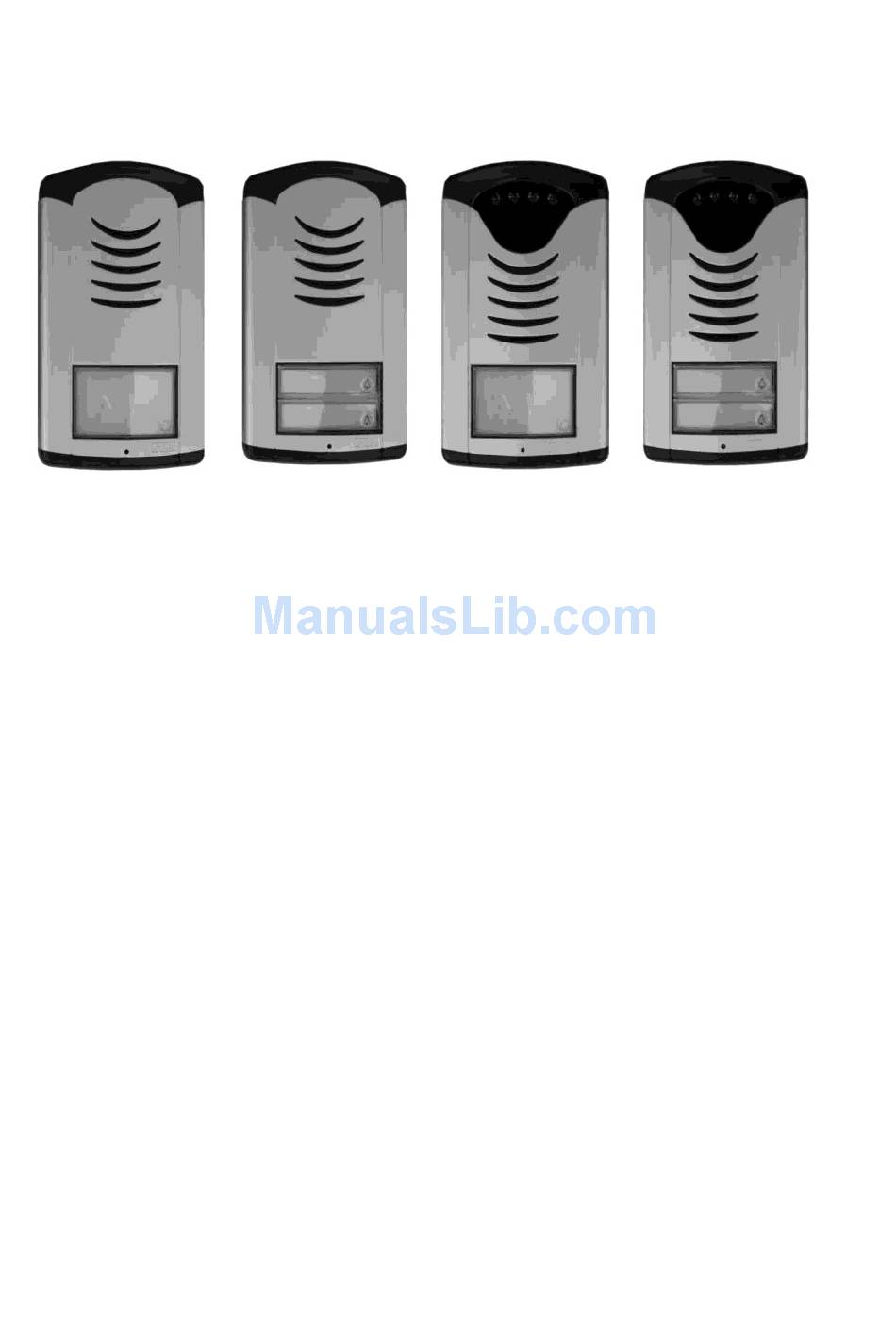

Slim IPDP-02
(Slim IPDP-01C antivandal)
Slim IPDP-01C
IPDP - installation and operating instructions
Slim IPDP-02C
