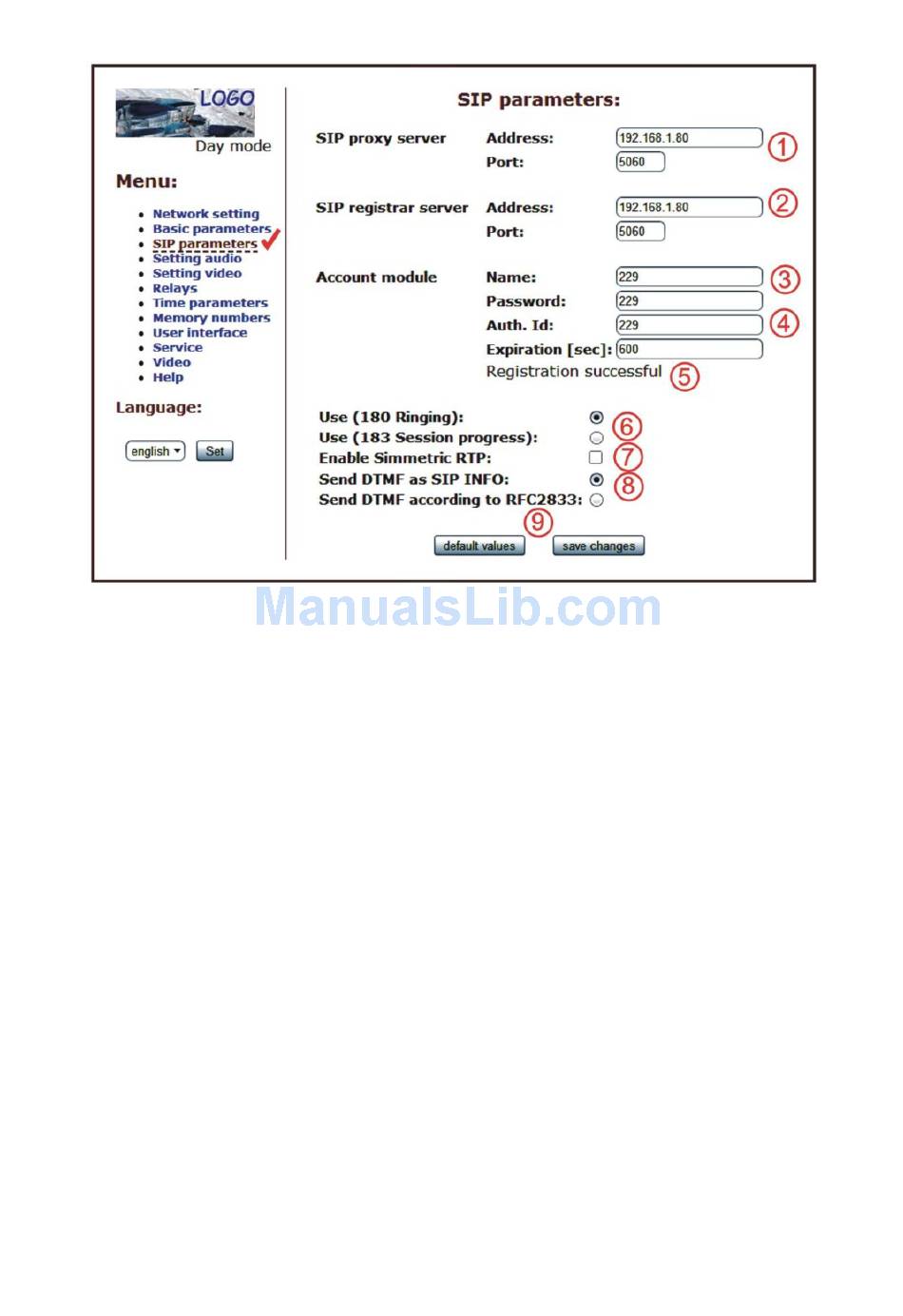

If you setting SIP server mode by DIP switch, so change site of SIP
parameters
After making changes use the save changes button.
1. SIP proxy server IP address or SIP server name and port (usually
5060/5061) - via the server connection is made
2. SIP registrar server IP address or SIP server name and port (usually
5060/5061) - on this site registration is made, if you do not, so registration is
done at the SIP proxy server
3. Registering data to SIP proxy server (aren't obligatory)
4. Name of the participant, usually a phone number to DoorPhone (the line to
which is attached)
5. Expiration is interval of sending requests for re-registration in SIP server
6. choice signalling of incomming call by default Ringing, possible change on
Session progress - added for some SIP proxy servers that the it require
7. Symmetrical RTP - added for some SIP proxy servers that the it require
8. Possibility to change the sending of DTMF DoorPhone (inband is not
supported)
9. Default value – presetings to the firm settings. After making changes use
the save changes button
IPDP - installation and operating instructions
